Case Reports
. 2023 Jun 3;9(8):581-585.
doi: 10.1016/j.hrcr.2023.05.019. eCollection 2023 Aug.

Focal pulsed field electroporation of left ventricular premature contractions after failed radiofrequency ablation

Jim Hansen  1 , Martin A Haugdal  1 , Arne Johannessen  1 , Morten Lock Hansen  1 , Rene Worck  1 , Martin H Ruwald  1
Affiliations
Case Reports

Focal pulsed field electroporation of left ventricular premature contractions after failed radiofrequency ablation

Jim Hansen et al. HeartRhythm Case Rep. .
No abstract available

Keywords: 3D mapping; Electrogram; Electroporation; Premature ventricular contractions; Pulsed field ablation; Ventricular arrhythmia.

PubMed Disclaimer

Figures

Figure 1
Figure 1

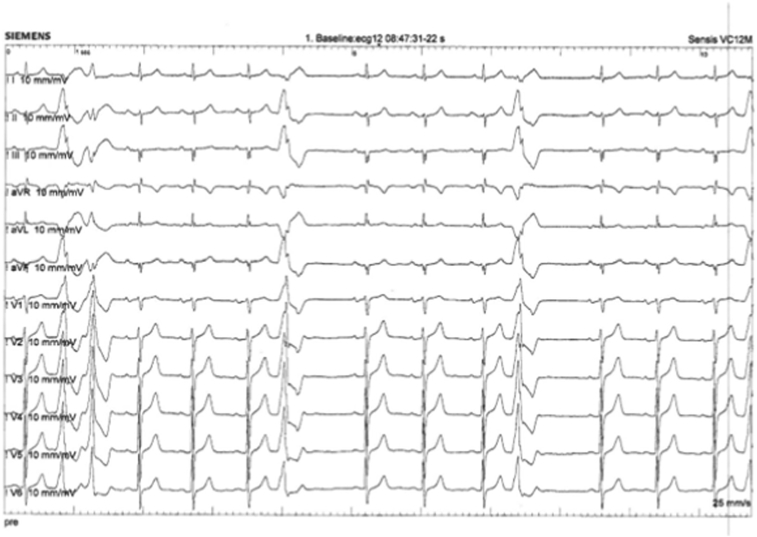

Twelve-lead electrocardiogram (ECG-12) with clinical premature ventricular contractions. ECG-12 showed frequent monomorphic premature ventricular contractions with a QRS morphology suggestive of a superolateral mitral annulus origin.
Figure 2
Figure 2

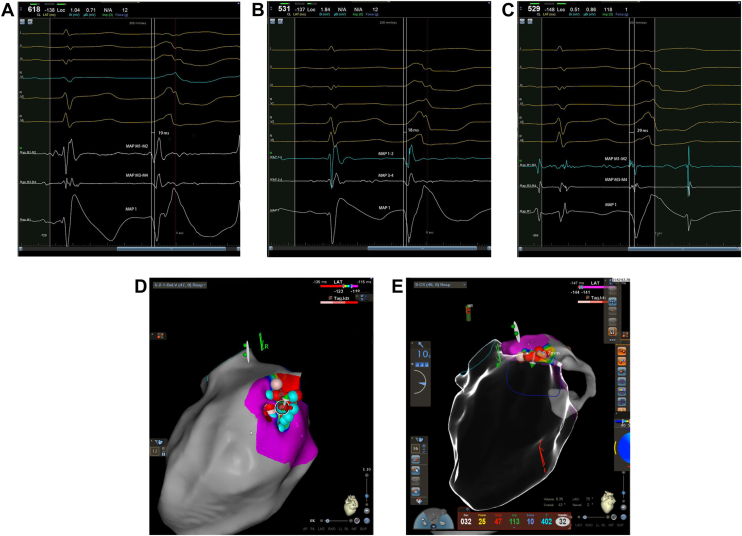

Earliest activation electrogram and anatomical ablation sites endocardially and from the distal coronary sinus. A: Earliest endocardial activation was found on the ventricular aspect of the mitral annulus in a left anterior oblique view 1-o’clock position, which preceded QRS onset by 19 ms recorded with the radiofrequency (RF) ablation catheter. B: Earliest endocardial activation recorded with the pulsed field electroporation (PFE) delivery catheter preceding QRS onset by 18 ms. C: Earliest activation in the distal coronary sinus, which preceded QRS onset by 29 ms. D: Ablation sites and catheter placement from the endocardial approach. E: The corresponding ablation site in the great cardiac vein – distal coronary sinus. Red tags represent RF ablation sites and blue tags represent PFE delivery sites.
Figure 3
Figure 3

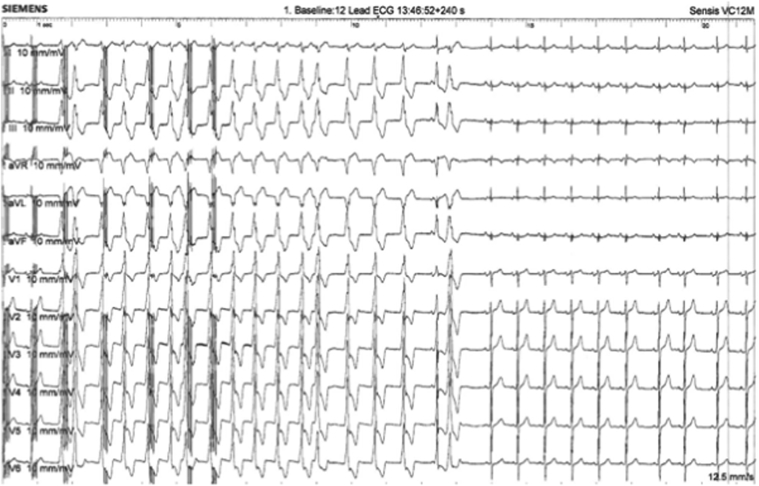

Excitatory response to pulsed field electroporation delivery on 12-lead electrocardiogram (ECG-12). The figure shows the excitatory premature ventricular contraction response to trains of pulsed field electroporation delivery on ECG-12 and, hereafter, sinus rhythm.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Reddy V.Y., Neuzil P., Koruth J.S., et al. Pulsed field ablation for pulmonary vein isolation in atrial fibrillation. J Am Coll Cardiol. 2019;74:315–326. - PubMed
    1. Reddy V.Y., Dukkipati S.R., Neuzil P., et al. Pulsed field ablation of paroxysmal atrial fibrillation: 1-year outcomes of IMPULSE, PEFCAT, and PEFCAT II. JACC Clin Electrophysiol. 2021;7:614–627. - PubMed
    1. Ekanem E., Reddy V.Y., Schmidt B., et al. Multi-national survey on the methods, efficacy, and safety on the post-approval clinical use of pulsed field ablation (MANIFEST-PF) Europace. 2022;24:1256–1266. - PMC - PubMed
    1. Anic A., Phlips T., Brešković T., et al. Pulsed field ablation using focal contact force-sensing catheters for treatment of atrial fibrillation: acute and 90-day invasive remapping results. EP Europace. 2023;25:euad147. - PMC - PubMed
    1. Weyand S, Lobig S, Seizer P. First in human focal pulsed field ablation to treat an epicardial VT focus with an endocardial approach in non-ischemic cardiomyopathy [published online ahead of print March 21, 2023]. J Interv Card Electrophysiol. doi:10.1007/s10840-023-01534-8. - DOI - PubMed
