Review
. 2023 Oct;52(7):20230284.
doi: 10.1259/dmfr.20230284. Epub 2023 Sep 4.

Applications of artificial intelligence in the analysis of dental panoramic radiographs: an overview of systematic reviews

Natalia Turosz  1 , Kamila Chęcińska  2 , Maciej Chęciński  3 , Anita Brzozowska  4 , Zuzanna Nowak  5 , Maciej Sikora  6   7
Affiliations
Review

Applications of artificial intelligence in the analysis of dental panoramic radiographs: an overview of systematic reviews

Natalia Turosz et al. Dentomaxillofac Radiol. 2023 Oct.

Abstract

Objectives: This overview of systematic reviews aimed to establish the current state of knowledge on the suitability of artificial intelligence (AI) in dental panoramic radiograph analysis and illustrate its changes over time.

Methods: Medical databases covered by the Association for Computing Machinery, Bielefeld Academic Search Engine, Google Scholar, and PubMed engines were searched. The risk of bias was assessed using ROBIS tool. Ultimately, 12 articles were qualified for the qualitative synthesis. The results were visualized with timelines, tables, and charts.

Results: In the years 1988-2023, a significant development of information technologies for the analysis of DPRs was observed. The latest analyzed AI models achieve high accuracy in detecting caries (91.5%), osteoporosis (89.29%), maxillary sinusitis (87.5%), periodontal bone loss (93.09%), and teeth identification and numbering (93.67%). The detection of periapical lesions is also characterized by high sensitivity (99.95%) and specificity (92%). However, due to the small number of heterogeneous source studies synthesized in systematic reviews, the results of this overview should be interpreted with caution.

Conclusion: Currently, AI applications can significantly support dentists in dental panoramic radiograph analysis. As systematic reviews on AI become outdated quickly, their regular updating is recommended. PROSPERO registration number: CRD42023416048.

Keywords: Artificial Intelligence; Deep learning; Dental radiography; Overview of reviews; Panoramic radiographs.

PubMed Disclaimer

Figures

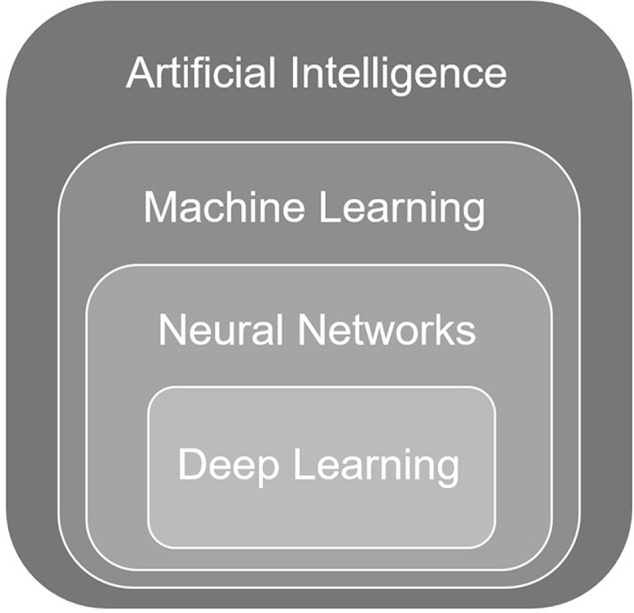

Figure 1.
Figure 1.
The major aspects of artificial intelligence.

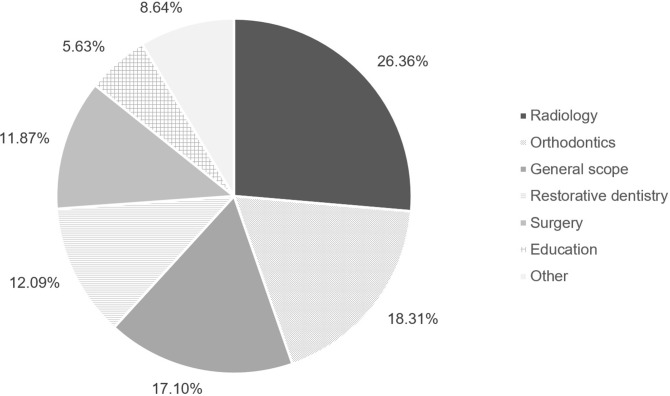

Figure 2.
Figure 2.
Main AI focus in dentistry from 2011 to 2021. AI, artificial intelligence.

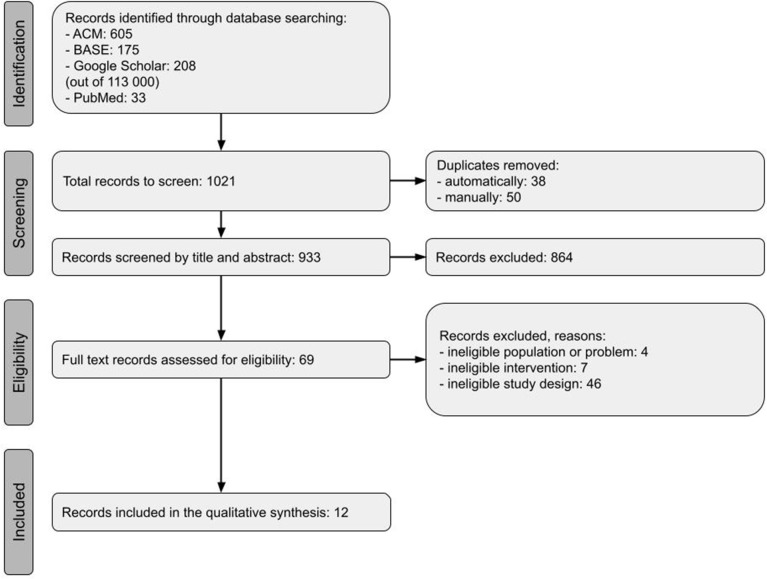

Figure 3.
Figure 3.
PRIOR flow diagram. PRIOR, Preferred Reporting Items for Overviews of Reviews.

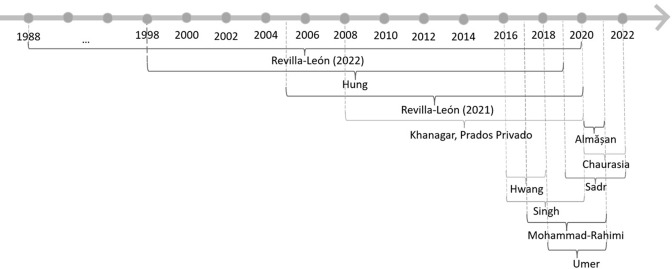

Figure 4.
Figure 4.
Overlap of periods searched for systematic reviews (* - not specified, presumed time range visualized).

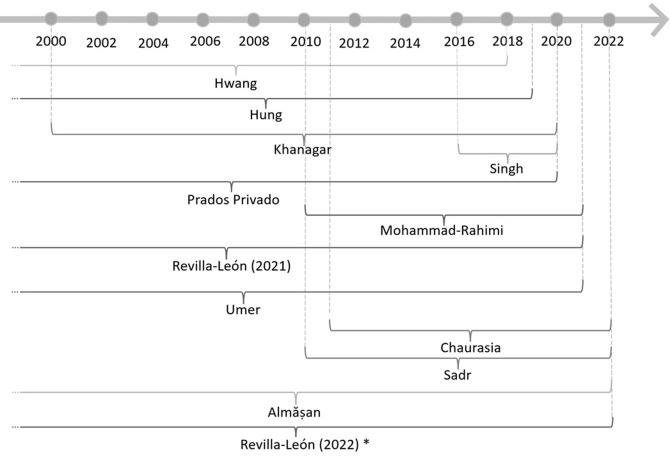

Figure 5.
Figure 5.
Overlap of primary studies included in systematic reviews.

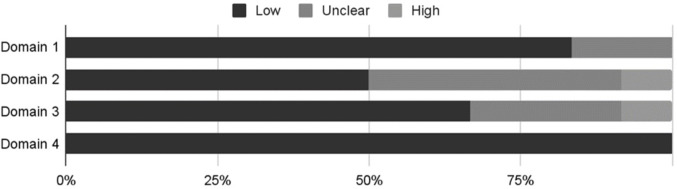

Figure 6.
Figure 6.
Risk of bias distribution (Domain 1—study eligibility criteria; Domain 2—identification and selection of studies; Domain 3—data collection and study appraisal; Domain 4—synthesis and findings).

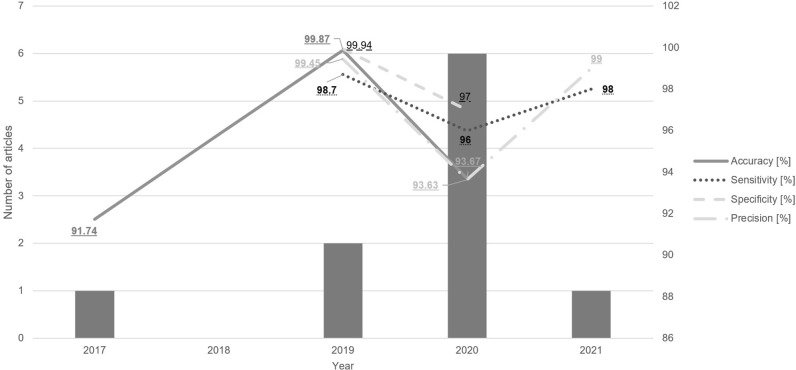

Figure 7.
Figure 7.
The number of reports on teeth identification and numbering and outcome metrics of AI algorithms by years. AI, artificial intelligence.

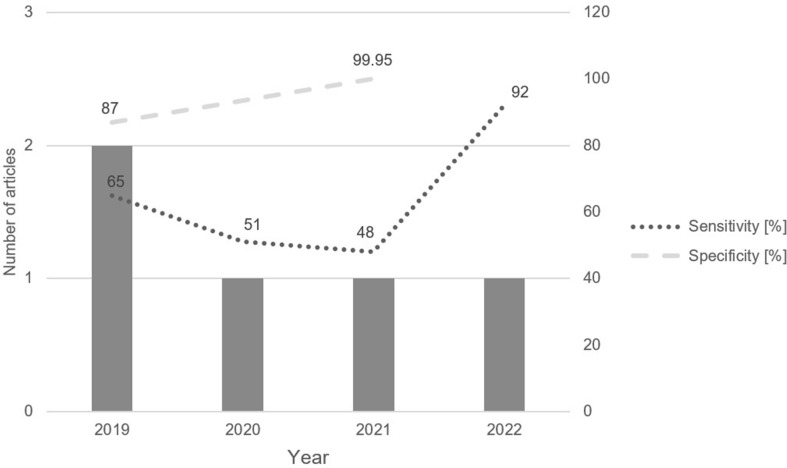

Figure 8.
Figure 8.
The number of reports on detection of periapical lesions and outcome metrics of AI algorithms by years. AI, artificial intelligence.

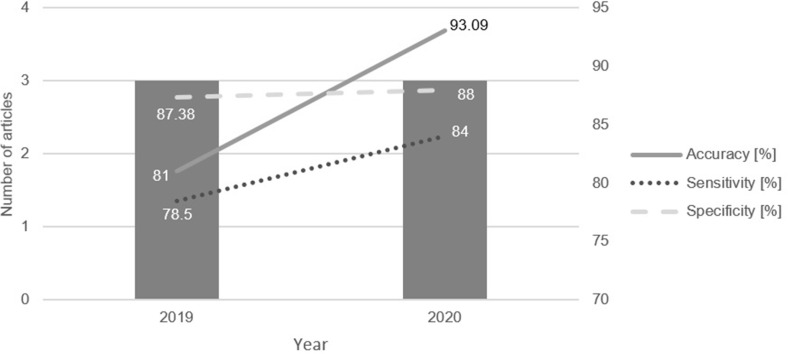

Figure 9.
Figure 9.
The number of reports on detection of periodontal bone loss and outcome metrics of AI algorithms by years. AI, artificial intelligence.

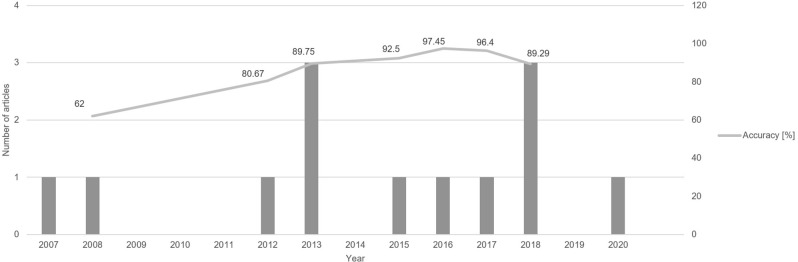

Figure 10.
Figure 10.
The number of reports on detection of osteoporosis and outcome metrics of AI algorithms by years. AI, artificial intelligence.

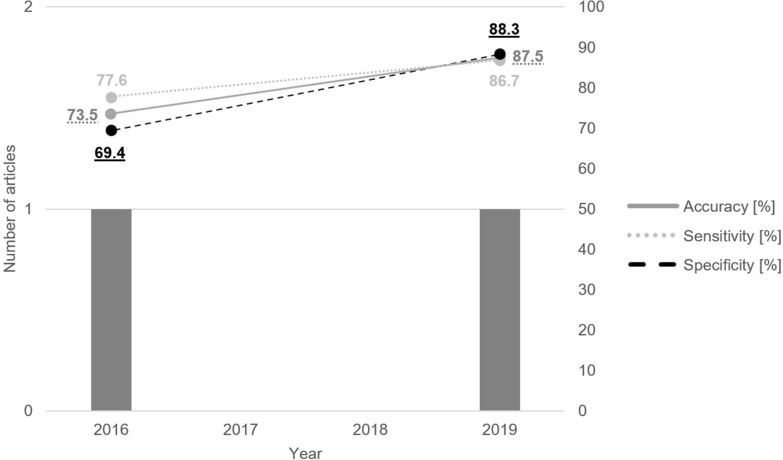

Figure 11.
Figure 11.
The number of reports on detection of maxillary sinusitis and outcome metrics of AI algorithms by years. AI, artificial intelligence.

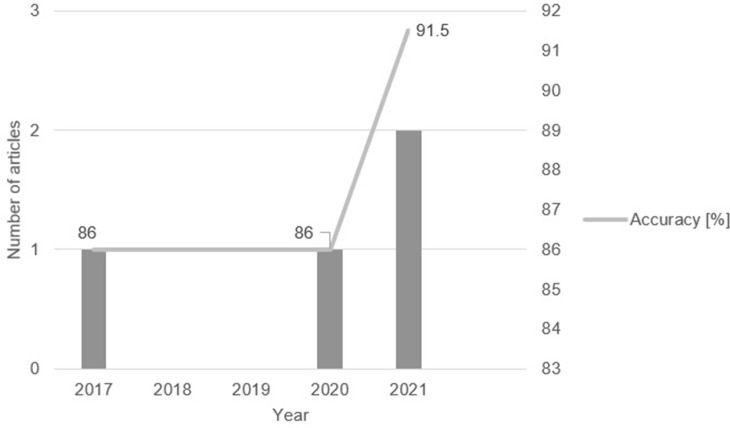

Figure 12.
Figure 12.
The number of reports on detection of dental caries detection and outcome metrics of AI algorithms by years. AI, artificial intelligence.
