ScatterNet for projection-based 4D cone-beam computed tomography intensity correction of lung cancer patients

Abstract

Background and purpose: In radiotherapy, dose calculations based on 4D cone beam CTs (4DCBCTs) require image intensity corrections. This retrospective study compared the dose calculation accuracy of a deep learning, projection-based scatter correction workflow (ScatterNet), to slower workflows: conventional 4D projection-based scatter correction (CBCT_cor) and a deformable image registration (DIR)-based method (4DvCT). Materials and methods: For 26 lung cancer patients, planning CTs (pCTs), 4DCTs and CBCT projections were available. ScatterNet was trained with pairs of raw and corrected CBCT projections. Corrected projections from ScatterNet and the conventional workflow were reconstructed using MA-ROOSTER, yielding 4DCBCT_SN and 4DCBCT_cor. The 4DvCT was generated by 4DCT to 4DCBCT DIR, as part of the 4DCBCT_cor workflow. Robust intensity modulated proton therapy treatment plans were created on free-breathing pCTs. 4DCBCT_SN was compared to 4DCBCT_cor and the 4DvCT in terms of image quality and dose calculation accuracy (dose-volume-histogram parameters and $3\%$/$3\mathrm{mm}$ gamma analysis). Results: 4DCBCT_SN resulted in an average mean absolute error of $87\mathrm{HU}$ and $102\mathrm{HU}$ when compared to 4DCBCT_cor and 4DvCT respectively. High agreement was observed in targets with median dose differences of $0.4\mathrm{Gy}$ (4DCBCT_SN-4DCBCT_cor) and $0.3\mathrm{Gy}$ (4DCBCT_SN-4DvCT). The gamma analysis showed high average $3\%$/$3\mathrm{mm}$ pass rates of $96\%$ for both 4DCBCT_SN vs. 4DCBCT_cor and 4DCBCT_SN vs. 4DvCT. Conclusions: Accurate 4D dose calculations are feasible for lung cancer patients using ScatterNet for 4DCBCT correction. Average scatter correction times could be reduced from $10\min$ (4DCBCT_cor) to $3.9s$, showing the clinical suitability of the proposed deep learning-based method.

Keywords: 4DCBCT; Deep learning; Lung cancer; Projection-based; Proton therapy; Scatter correction.

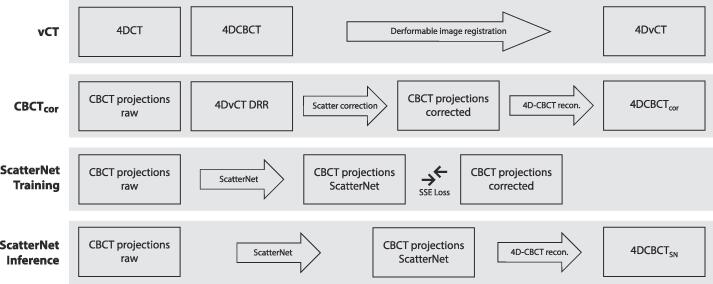

Fig. 1

Block diagram showing the study design including the 4DvCT, 4DCBCT_cor, 4DCBCT_SN training and 4DCBCT_SN inference workflows. The MA-ROOSTER method was used for 4DCBCT reconstruction. Abbreviations: SSE = sum of squared errors, DRR = digitally reconstructed radiograph.

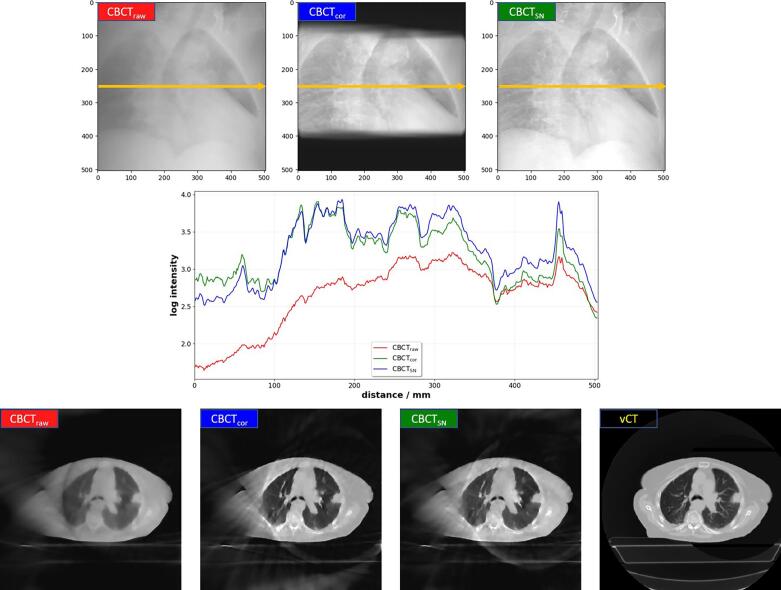

Fig. 2

(top row) Overview of the different CBCT projections shown for patient C. (middle row) Line profiles in log intensity are shown versus distance along the yellow line. The bottom row shows an axial view of phase 0 (inhale) of the reconstructed projections as well as the vCT. In each case projections and images are displayed with the same window and level.

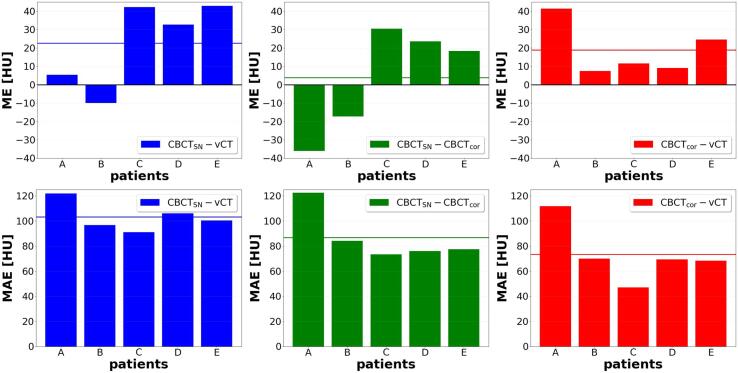

Fig. 3

For all testing patients averaged over the 10 breathing phases ME (top) and MAE (bottom) are shown for the comparisons 4DCBCT_SN-4DvCT, 4DCBCT_SN-4DCBCT_cor, and 4DCBCT_cor-4DvCT. For each case, the mean value over all test patients is indicated with a horizontal line.

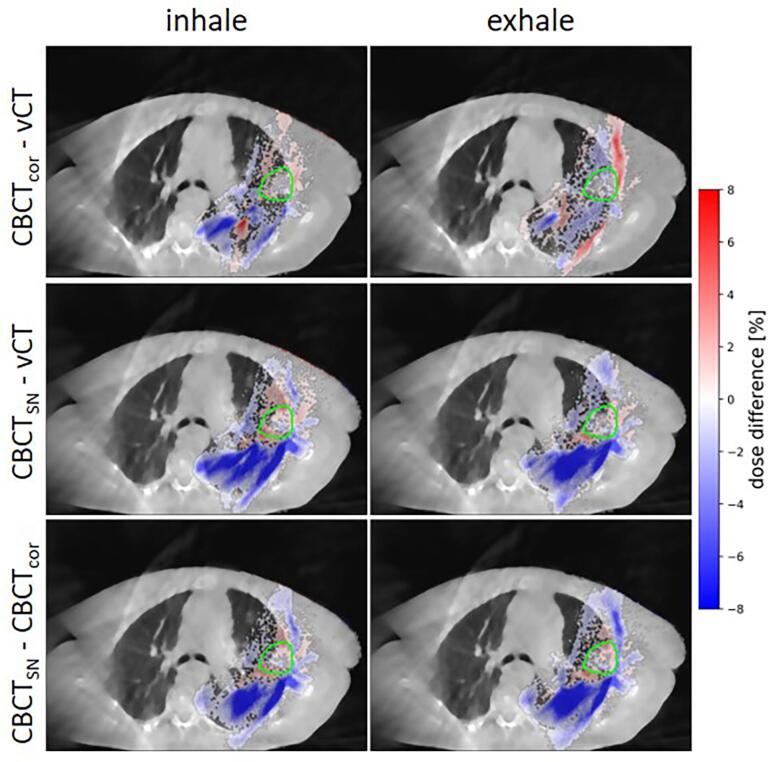

Fig. 4

Differences in percent of the prescribed dose of $60\mathrm{Gy}$ for the recalculated proton dose distribution of 4DvCT, 4DCBCT_cor, and 4DCBCT_SN from patient C. Dose deviations smaller than 0.4% are masked to improve the readability of the plot. The dose is overlayed on the 4DCBCT_cor (top row) and 4DCBCT_SN (middle and bottom row).
