Case Reports
. 2023 Aug 29:10:1164916.
doi: 10.3389/fcvm.2023.1164916. eCollection 2023.

Case Report: A rare homozygous patient affected by TTR systemic amyloidosis with a prominent heart involvement

Emanuele Micaglio  1 , Gloria Santangelo  2 , Silvia Moscardelli  2 , Daniela Rusconi  3 , Francesco Musca  4 , Alessandro Verde  4 , Laura Campiglio  5 , Francesca Bursi  5 , Marco Guazzi  5
Affiliations
Case Reports

Case Report: A rare homozygous patient affected by TTR systemic amyloidosis with a prominent heart involvement

Emanuele Micaglio et al. Front Cardiovasc Med. .

Abstract

Hereditary transthyretin amyloidosis is a severe, adult-onset autosomal dominant inherited systemic disease predominantly affecting the peripheral and autonomic nervous system, heart, kidney, and the eyes. We present a case of a Caucasian 65-year-old man with cardiac amyloidosis and the homozygous mutation Val142Ile (classically, Val122Ile) in the transthyretin gene. We provide a genotype-phenotype correlation regarding the genetic status of both heterozygous and homozygous individuals and their clinical conditions at the time of genetic testing.

Keywords: Val142Ile; atrial fibrillation; hereditary transthyretin amyloidosis cardiomyopathy; homozygous variant; stroke.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1
Figure 1
(A) 12-lead electrocardiogram: sinus rhythm, heart rate 75/min, normal PR, normal QRS voltages, pseudo-Q-waves in inferior leads and aspecific T-wave abnormalities. (B) Four-chamber cine cardiovascular magnetic resonance: increased wall thickness; right ventricle normal in size and function. (C) Total body scintigraphy with Technetium-99m oxidronate: radiotracer deposit in the LV greater than bone intensity.
Figure 2
Figure 2

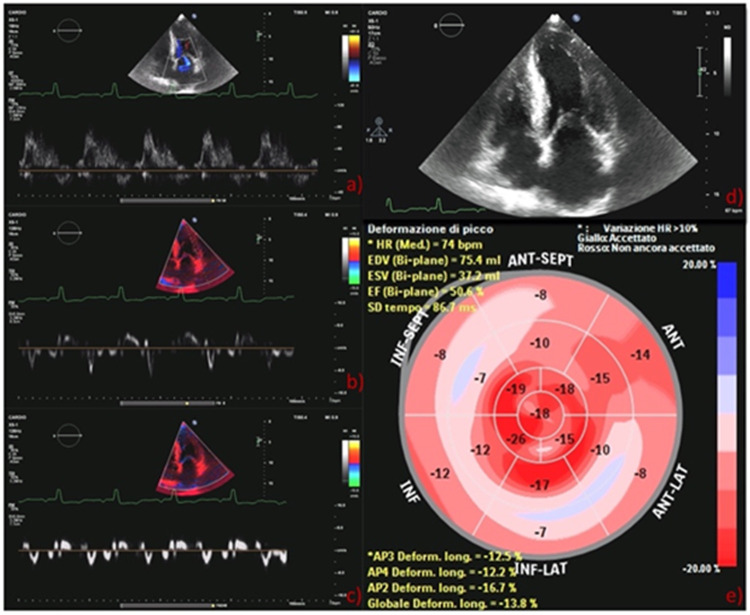

(A) Pulsed mitral wave Doppler: grade II diastolic dysfunction with elevation E/A ratio (1.93); (B) lateral tissue Doppler imaging: low mitral annulus e′ velocities (8 cm/s); (C) septal tissue Doppler measurement: low mitral annulus e′ velocities (6 cm/s); (D) GLS bull's eye diagram: typical apical sparing of amyloidosis. GLS, global longitudinal strain.
Figure 3
Figure 3

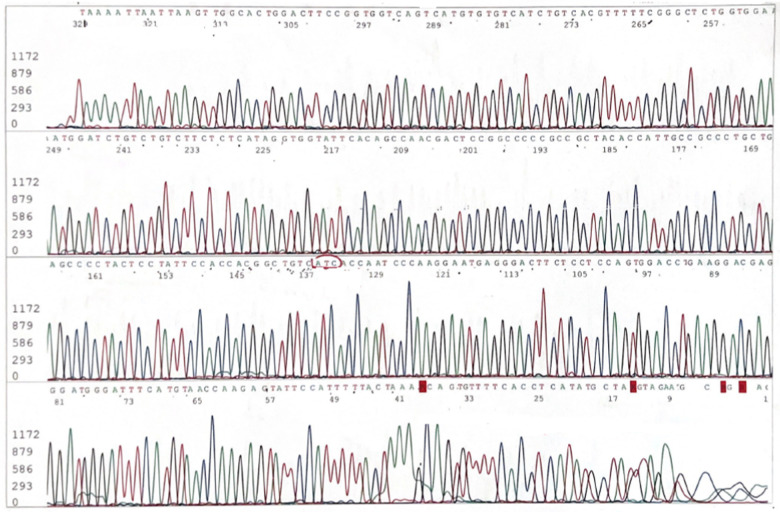

Electropherogram. Homozygous mutation in the TTR gene.
Figure 4
Figure 4

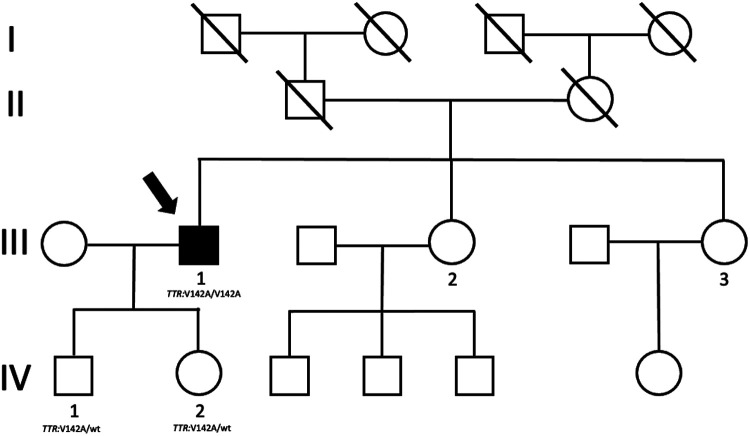

Proband's family tree. The arrow shows the proband who harbors mutation and clinical phenotype.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Adams D, Gonzalez-Duarte A, O'Riordan WD, Yang CC, Ueda M, Kristen AV, et al. Patisiran, an RNAi therapeutic, for hereditary transthyretin amyloidosis. N Engl J Med. (2018) 379(1):11–21. 10.1056/NEJMoa1716153 - DOI - PubMed
    1. Kaku M, Berk JL. Neuropathy associated with systemic amyloidosis. Semin Neurol. (2019) 39(5):578–88. 10.1055/s-0039-1688994 - DOI - PubMed
    1. Jacobson DR, Alexander AA, Tagoe C, Buxbaum JN. Prevalence of the amyloidogenic transthyretin (TTR) V122I allele in 14 333 African-Americans. Amyloid. (2015) 22(3):171–4. 10.3109/13506129.2015.1051219 - DOI - PubMed
    1. Chandrashekar P, Alhuneafat L, Mannello M, Al-Rashdan L, Kim MM, Dungu J, et al. Prevalence and outcomes of p.Val142Ile TTR amyloidosis cardiomyopathy: a systematic review. Circ Genom Precis Med. (2021) 14(5):e003356. 10.1161/CIRCGEN.121.003356 - DOI - PMC - PubMed
    1. Mazzarotto F, Argiro A, Zampieri M, Magri C, Giotti I, Boschi B, et al. Investigation on the high recurrence of the ATTRv-causing transthyretin variant Val142Ile in central Italy. Eur J Hum Genet. (2023) 31(5):541–7. 10.1038/s41431-022-01235-2 - DOI - PMC - PubMed
