Review
. 2023 Sep 6:11:102365.
doi: 10.1016/j.mex.2023.102365. eCollection 2023 Dec.

Traveling-wave based fault location estimation in FACTS compensated transmission system: Recent status, challenges and future research directions

Saswati Mishra  1 , Shubhrata Gupta  1 , Anamika Yadav  1
Affiliations
Review

Traveling-wave based fault location estimation in FACTS compensated transmission system: Recent status, challenges and future research directions

Saswati Mishra et al. MethodsX. .

Abstract

This article presents a recent literature review on traveling wave-based fault location estimation in flexible alternating current transmission system (FACTS) compensated transmission system. The review aims to provide an overview of the current state-of-the-art in traveling wave-based fault location methods and their applications in FACTS compensated power systems. Firstly, the importance of fault location techniques and their classification are discussed. Secondly, the basic theory behind traveling-wave based fault location methods is presented. Further, the effects of presence of different FACTS devices are presented to highlight the challenges in developing efficient fault location methods for FACTS compensated transmission system. The survey covers reported traveling-wave based fault location techniques and highlights the current status and challenges. Additionally, the survey reviews recent advancements in the field and identifies future research directions. The study concludes by summarizing the main findings and providing recommendations for further research. The presented literature review provides valuable insights for researchers, engineers, and practitioners in the field of power system protection and control.

Keywords: FACTS devices; Fault location; Literature review; Transmission system; Traveling-wave; Traveling-wave based fault location estimation.

PubMed Disclaimer

Figures

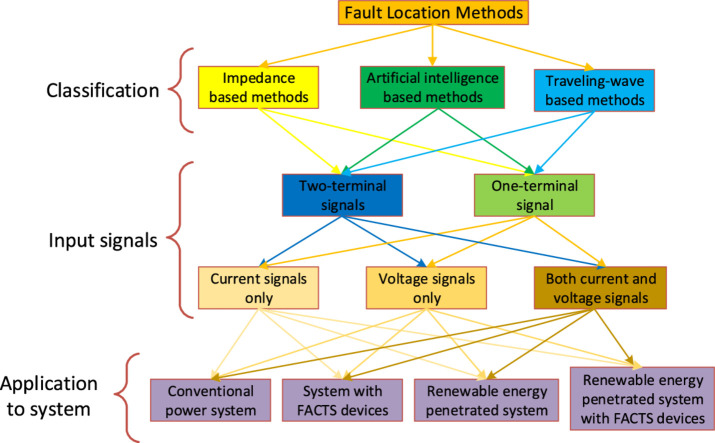

Image, graphical abstract
Graphical abstract
Fig 1
Fig. 1
Flow-diagram of FLM.
Fig 2
Fig. 2
Pie-chart of reports published with different publishers.
Fig 3
Fig. 3
Bar-chart of reports published in different years.
Fig 4
Fig. 4
Sample transmission line.
Fig 5
Fig. 5
Effects of UPFC on system. (a) Current signal. (b) Voltage signal. (c) Active power flow. (d) Reactive power flow.
Fig 6
Fig. 6
ESPRIT based FLM for TCSC compensated system. (a) Original and reconstructed (via ESPRIT) aerial-mode signals of bus B1. (b) Squared error signal of bus B1. (c) Original and reconstructed (via ESPRIT) aerial-mode signals of bus B2. (d) Squared error signal of bus B2.
Fig 7
Fig. 7

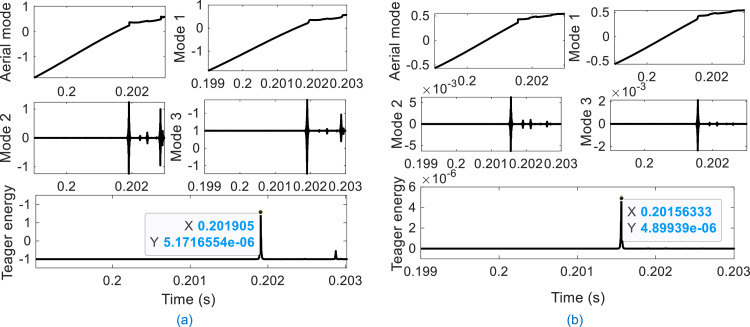

TEO assisted VMD-based FLM for STATCOM compensated system. (a) ATTW estimation for bus B1. (b) ATTW estimation for bus B2.
Fig 8
Fig. 8

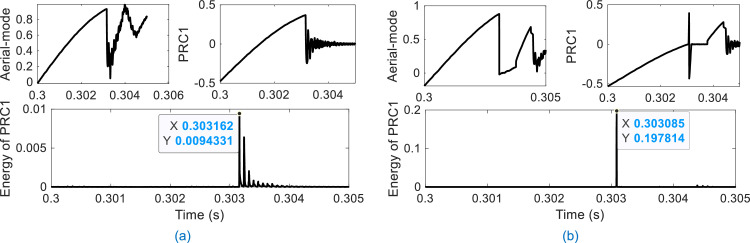

TEO assisted ITD-based FLM for UPFC compensated system. (a) ATTW estimation for bus B1. (b) ATTW estimation for bus B2.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Gandoman F.H., Ahmadi A., Sharaf A.M., Siano P., Pou J., Hredzak B., et al. Review of FACTS technologies and applications for power quality in smart grids with renewable energy systems. Renew. Sustain. Energy Rev. 2018;82:502–514.
    1. Panahi H., Zamani R., Sanaye-Pasand M., Mehrjerdi H. Advances in transmission network fault location in modern power systems: review, outlook and future works. IEEE Access. 2021;9:158599–158615.
    1. Mishra S., Gupta S., Yadav A. Intrinsic time decomposition based fault location scheme for unified power flow controller compensated transmission line. Int. Trans. Electr. Energy Syst. 2020;30:e12585.
    1. Biswas S., Nayak P.K. State-of-the-art on the protection of FACTS compensated high-voltage transmission lines: a review. High Volt. 2018;3:21–30.
    1. Moravej Z., Movahhedneya M., Pazoki M. Gabor transform-based fault location method for multi-terminal transmission lines. Measurement. 2018;125:667–679.
