. 2023 Sep 21;13(1):15753.
doi: 10.1038/s41598-023-43045-6.

Synthesis of pyridone derivatives using 2D rod like bifunctional Fe based MOF and CuO nanocomposites as a novel heterogeneous catalyst

Negar Hoot  1 , Enayatollah Sheikhhosseini  2 , Sayed Ali Ahmadi  1 , Mahdieh Ghazizadeh  1 , Moslem Malekshahi  1   3 , Mahdieh Yahyazadehfar  1
Affiliations

Synthesis of pyridone derivatives using 2D rod like bifunctional Fe based MOF and CuO nanocomposites as a novel heterogeneous catalyst

Negar Hoot et al. Sci Rep. .

Abstract

In this study, a new and efficient Rod-like bifunctional Fe-based MOF@CuO nanocomposites (RL BF Fe-based MOF@CuO NC) were synthesized as new and efficient heterogeneous catalyst through a simple method from easily available 1,3,5-benzenetricarbocylic acid linker, nitrate ferric as a source of iron and copper oxide (CuO) nanoparticles under microwave irradiation. The synthesized nanocatalysts were characterized with different techniques such as Brunauer-Emmett-Teller (BET), energy dispersive spectroscopy (EDS), field emission scanning electron microscopy (FE-SEM), mapping, transmission electron microscopy (TEM), X-ray diffraction (XRD), vibrating sample magnetometer (VSM), thermogravimetric analysis (TGA) and Fourier transform infrared spectroscopy (FT-IR). The RL BF Fe-based MOF@CuO NC had relatively high specific surface area (203 m2 g-1) while exhibiting superparamagnetic properties. The catalytic activity of RL BF Fe-based MOF@CuO NC was explored in a facile and green methodology to prepare diverse N‑amino-2-pyridones by one-pot four component reactions comprising aromatic aldehyde, malononitrile, methyl cyanoacetate and hydrazine hydrate within mild and solvent-free conditions. This protocol enjoys features like providing the final products during low reaction times in excellent yields under solvent-free conditions. The use of easily available and inexpensive reactants for the synthesis of the catalyst, environmental compatibility, low catalyst loading, fast and clean work-up and reusability of catalyst for several cycles with consistent activity are counted as the outstanding features of this procedure.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

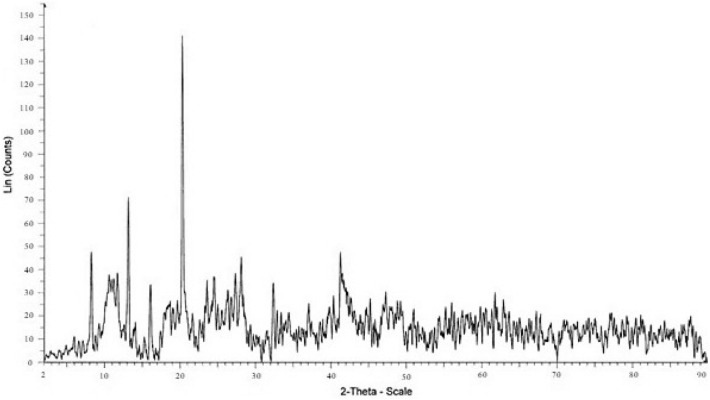

XRD pattern of RL BF Fe-based MOF@CuO NC.
Figure 2
Figure 2
(a) SEM image and (b) high-resolution SEM image of RL BF Fe-based MOF@CuO NC.
Figure 3
Figure 3
TEM image of RL BF Fe-based MOF@CuO NC.
Figure 4
Figure 4

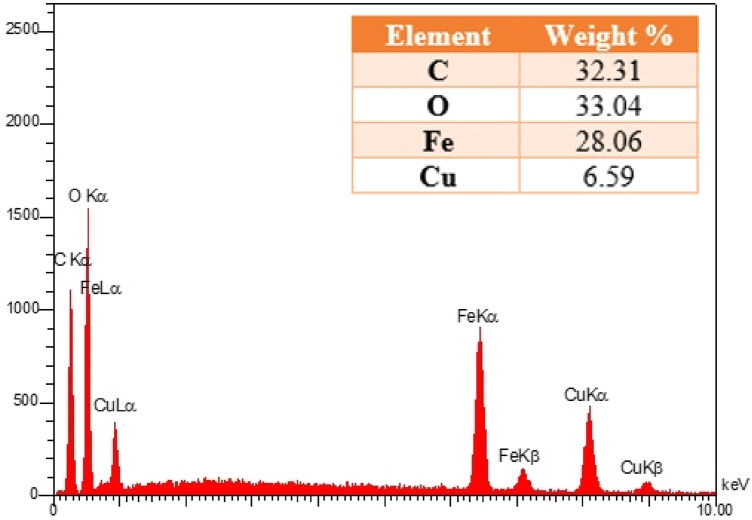

EDX spectra of RL BF Fe-based MOF@CuO NC.
Figure 5
Figure 5
(a) N2 adsorption–desorption isotherms RL BF Fe-based MOF@CuO NC and (b) BJH results obtained for RL BF Fe-based MOF@CuO NC.
Figure 6
Figure 6

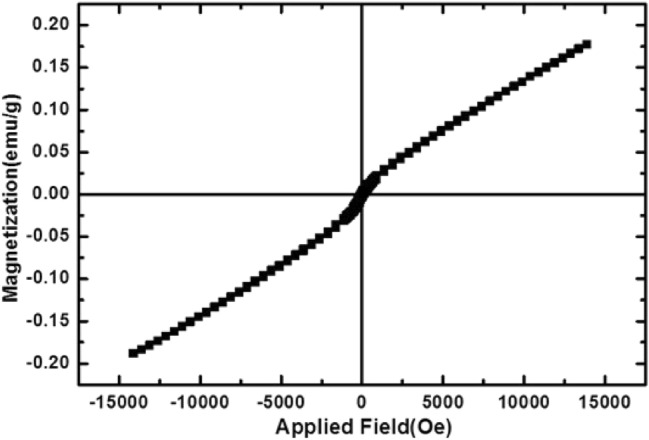

VSM magnetization curves of RL BF Fe-based MOF@CuO NC.
Figure 7
Figure 7

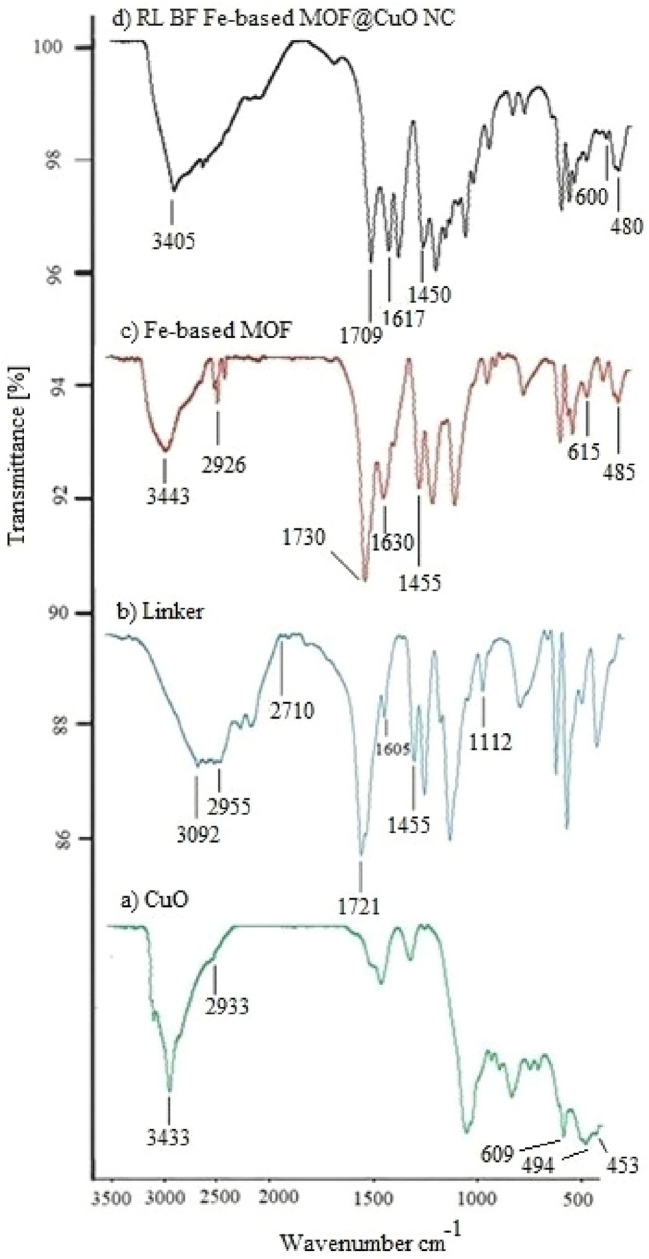

IR (KBr, υ cm−1) curve of (a) CuO, (b) 1,3,5-benzenetricarboxylic acid linker, (c) synthesized Fe-based MOF and (d) RL BF Fe-based MOF@CuO NC.
Figure 8
Figure 8

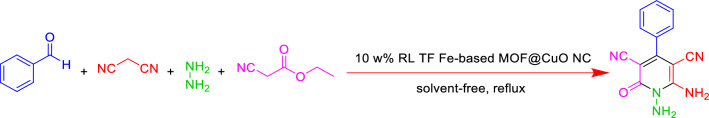

Four-component synthesis of N‑amino-2-pyridones catalyzed by RL BF Fe-based MOF@CuO NC under solvent-free and reflux conditions.
Figure 9
Figure 9

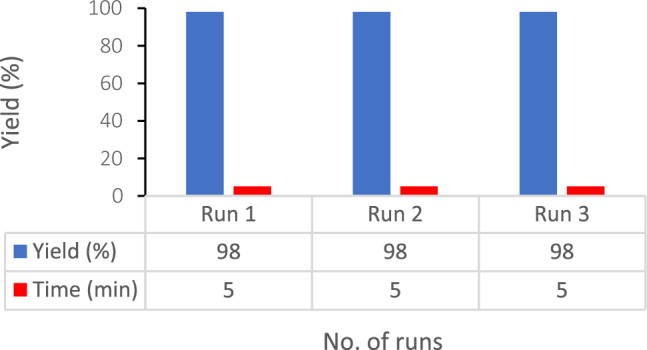

Reusability of the RL BF Fe-based MOF@CuO NC in the synthesis of 5a.
Figure 10
Figure 10
SEM images of recovered RL BF Fe-based MOF@CuO NC.
Figure 11
Figure 11

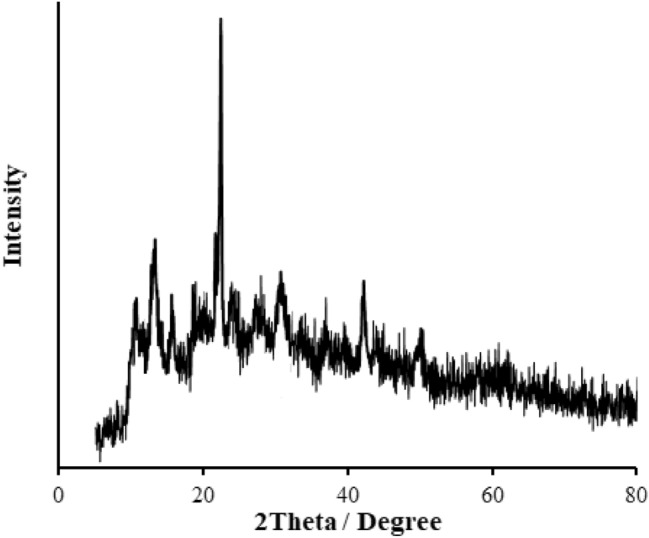

XRD Pattern of recovered RL BF Fe-based MOF@CuO NC.
Figure 12
Figure 12

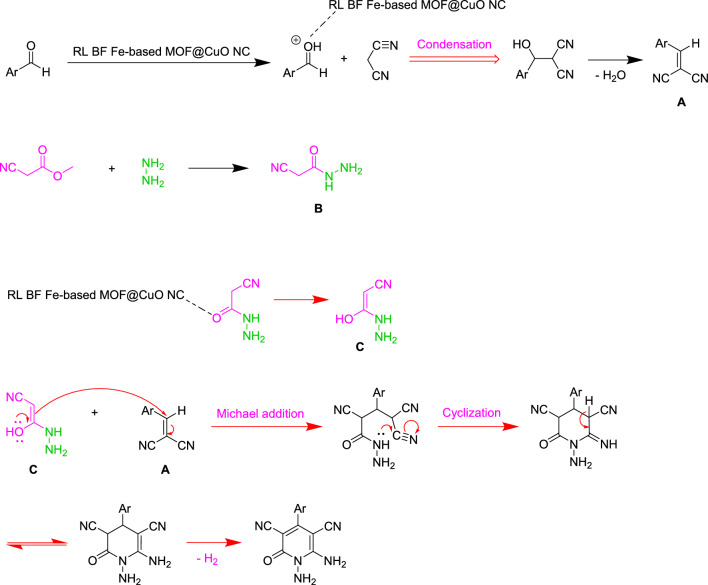

Proposed mechanism for the synthesis of N‑amino-2-pyridones.
