Calling Cards: A Customizable Platform to Longitudinally Record Protein-DNA Interactions Over Time in Cells and Tissues

Abstract

Calling Cards is a platform technology to record a cumulative history of transient protein-DNA interactions in the genome of genetically targeted cell types. The record of these interactions is recovered by next-generation sequencing. Compared with other genomic assays, readouts of which provide a snapshot at the time of harvest, Calling Cards enables correlation of historical molecular states to eventual outcomes or phenotypes. To achieve this, Calling Cards uses the piggyBac transposase to insert self-reporting transposon "Calling Cards" into the genome, leaving permanent marks at interaction sites. Calling Cards can be deployed in a variety of in vitro and in vivo biological systems to study gene regulatory networks involved in development, aging, and disease. Out of the box, it assesses enhancer usage but can be adapted to profile-specific transcription factor (TF) binding with custom TF-piggyBac fusion proteins. The Calling Cards workflow has five main stages: delivery of Calling Cards reagents, sample preparation, library preparation, sequencing, and data analysis. Here, we first present a comprehensive guide for experimental design, reagent selection, and optional customization of the platform to study additional TFs. Then, we provide an updated protocol for the five steps, using reagents that improve throughput and decrease costs, including an overview of a newly deployed computational pipeline. This protocol is designed for users with basic molecular biology experience to process samples into sequencing libraries in 2 days. Familiarity with bioinformatic analysis and command line tools is required to set up the pipeline in a high-performance computing environment and to conduct downstream analyses. © 2023 Wiley Periodicals LLC. Basic Protocol 1: Preparation and delivery of Calling Cards reagents Support Protocol 1: Next-generation sequencing quantification of barcode distribution within self-reporting transposon plasmid pool and adeno-associated virus genome Basic Protocol 2: Sample collection and RNA purification Support Protocol 2: Library density quantitative PCR Basic Protocol 3: Sequencing library preparation Basic Protocol 4: Library pooling and sequencing Basic Protocol 5: Data analysis.

Keywords: calling cards; enhancer usage; epigenetics; gene regulation; transcription factor binding.

Figure 1:. Example tracks showing recording of BRD4-bound super enhancers and TF binding sites using Calling Cards.

(A) Diagram of the self reporting transposon (SRT) and piggyBac transposase constructs. When expressed in cells, the piggyBac transposase inserts the SRT into the genome at sites of protein-DNA interaction leaving a permanent mark, or Calling Card. The location of Calling Cards insertions can be recovered through RNA sequencing. (B) The top track shows the genomic locations of SRT insertions in cells transfected with Calling Cards at the PCDH7 locus. The normalized density of Calling Cards correlates with BRD4 and H3K27ac ChIP-seq peaks. (C-F) Fusion of hyPB with a variety of TFs works to redirect Calling Cards across different cell lines. This figure is adapted from (Moudgil et al., 2020b).

Figure 2:. General workflows of a Calling Cards experiment.

(A) The wet lab protocol is split into five main stages: 1) the viral or plasmid Calling Cards reagents are prepared and delivered into the target cells/tissue; 2) The sample is harvested and RNA is purified; 3) the sequencing libraries are prepared; 4) the libraries are sequenced on Illumina NGS platforms; and 5) the generated FASTQ files are processed through the Calling Cards pipeline, Py-callingcards, and other downstream computational software. (B) The computational pipeline is distributed as a self-contained package that will process FASTQ files to Calling Cards qBED files. The pipeline is divided into four main chunks: 1) the reads are prepared by extracting sample barcodes, trimming Illumina adapters, and standard quality control; 2) the reads are aligned to a reference genome; 3) the alignments undergo standard quality control and sample barcodes are added to headers of each read then collated into a qBED file; 4) the output files can be used for downstream analysis such as differential peak analysis and motif enrichment analysis. The blue check mark represents steps where QC metrics will be written to a file in the output and analysis directory.

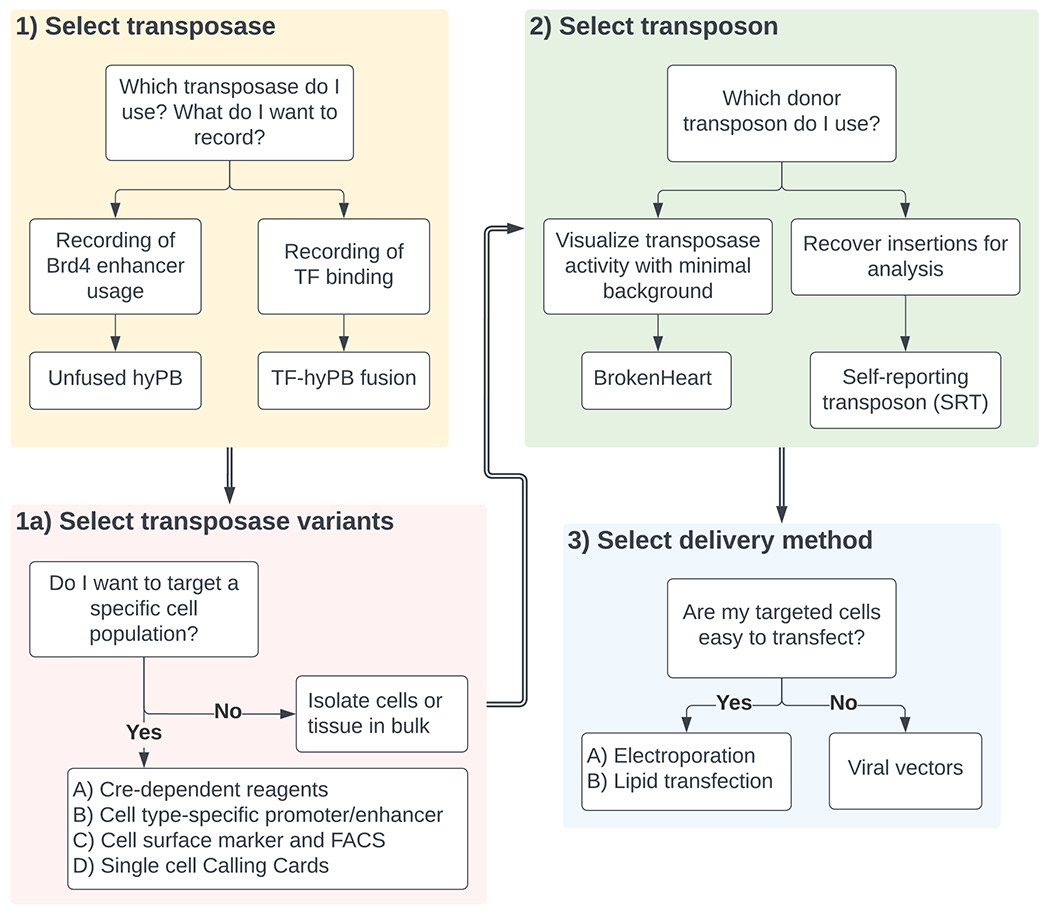

Figure 3:. Decision tree for selecting Calling Cards reagents for desired readouts.

There are various transposase and donor transposon variants depending on the biological question and goal. The first decision is to decide between using an unfused or TF-fused transposase (step 1). If Calling Cards recording is desired in a genetically defined cell population, “FrontFlip-hyPB” Cre-dependent transposase options are available (step 1a.A). Alternatively, a cell type-specific promoter can be used to drive expression of hyPB (e.g. Nestin-hyPB to target neural progenitors) (step 1a.B). A constitutive hyPB can be used for ubiquitous expression followed by enrichment of target cell population by FACS (step 1a.C). The final option is to conduct a single cell Calling Cards experiment (step 1a.D; see (Moudgil et al., 2020b) for details). The decision of donor transposon is made in step 2, followed by delivery method in step 3.

Figure 4.. General workflows for creating TF-hyperactive piggyBac (hyPB) fusions.

(A) Steps to create a TF-hyPB fusion construct. Functional validation with immunofluorescence or flow cytometry is recommended to be performed using the BrokenHeart donor transposon due to its complete absence of fluorescence background, compared to the minimal background of the SRT (Supplemental Figure S1C,F). Final functional validation is performed using the SRT to generate libraries for downstream analysis. (B) Additional considerations for in vivo applications.

Figure 5.. Timeline of Calling Cards activity in the mouse brain after AAV delivery.

(A) Schematic of AAV Calling Cards time course experimental design. (B) Sagittal section of a brain harvested 2 days after neonatal intracerebroventricular injection with Calling Cards reagents, showing widespread expression of SRT-derived tdTomato. Scale bar 1000 μM. (C) Insertion counts recovered at each time point, normalized to read depth. n = 4-6 hemi-cortices. (D) SRT concentration, measured by RT-qPCR as tdTomato -dC_T relative to Gapdh, over time. (E) Insertion counts recovered as a function of SRT concentration. Simple linear regression, R² = 0.4447, p = 0.0025.

Figure 6.. The experimental workflow for bulk Calling Cards library preparation.

(A) The sequencing library preparation protocol is broken down into several main sections. Recommended quality control (QC) checkpoints are noted by the blue checkmark. Appropriate pause points are shown in red. (B) A cartoon depicting how the libraries are prepared and the final library structure that is loaded onto the sequencer.

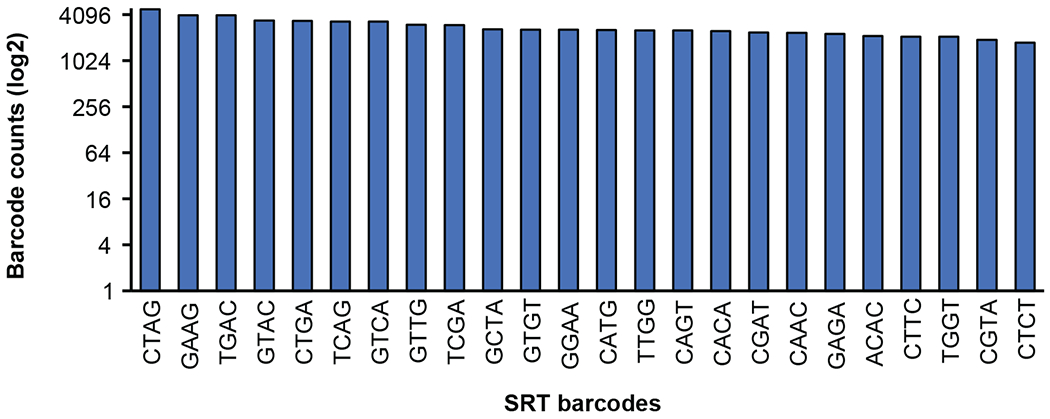

Figure 7.. Representative distribution of SRT barcodes in AAV genomes.

Bar plot showing the relatively equal barcode representation from a library prepared from pooled adeno-associated virus genomes.

Figure 8.. Representative quality control of cDNA and library complexity qPCR.

(A) Example data from a qPCR library density assay using samples with a range of Calling Cards expression. Samples with a C_T>30 have minimal number of tdTomato transcripts and can be omitted from downstream processing. (B) Plot showing tdTomato expression normalized to B-actin expression. (C) Plot showing the number of recovered insertions (blue) with number of sequencing reads (orange) per sample. In this example, insertions were recovered from samples with a tdTomato C_T<30.

Figure 9.. Titration of input cDNA into PCR to amplify SRTs.

(A) Example Tapestation gel images and (B) electropherogram traces demonstrating that larger amounts of starting material (up to 100ng) can be used to increase yield of SRTs.

Figure 10.. Representative quality control of SRTs and final library.

Representative gel images and electropherogram traces for tdTomato SRTs after bead cleanup (A,B) and final sequencing library (C,D).

Figure 11.. Generic file structure of nf-core/callingcards pipeline output.

The tree file structure upon completion of the pipeline is shown on the left. The name of the top-level directory is specified as the --ouput parameter within the params.json file. For each line in the samplesheet.csv, there will be a separate directory with the sample name provided in the first field. Within each sample directory, /hops contain the .qbed file listing Calling Cards insertions. Intermediate files that may be helpful in troubleshooting can also be found here. A html report can be found at multiqc/multiqc_report.html, where basic sequencing and alignment statistics are aggregated and displayed. Diagnostic reports and information can be found in the pipeline_info directory.
