. 2023 Dec;97(12):3095-3111.
doi: 10.1007/s00204-023-03603-3. Epub 2023 Oct 4.

Species-differences in the in vitro biotransformation of trifluoroethene (HFO-1123)

Affiliations

Species-differences in the in vitro biotransformation of trifluoroethene (HFO-1123)

R Dekant et al. Arch Toxicol. 2023 Dec.

Erratum in

Abstract

1,1,2-Trifluoroethene (HFO-1123) is anticipated for use as a refrigerant with low global warming potential. Inhalation studies on HFO-1123 in rats indicated a low potential for toxicity (NOAELs ≥ 20,000 ppm). In contrast, single inhalation exposure of Goettingen® minipigs (≥ 500 ppm) and New Zealand white rabbits (≥ 1250 ppm) resulted in severe toxicity. It has been suggested that these pronounced species-differences in toxicity may be attributable to species-differences in biotransformation of HFO-1123 via the mercapturic acid pathway. Therefore, the overall objective of this study was to evaluate species-differences in glutathione (GSH) dependent in vitro metabolism of HFO-1123 in susceptible versus less susceptible species and humans as a basis for human risk assessment. Biotransformation of HFO-1123 to S-(1,1,2-trifluoroethyl)-L-glutathione (1123-GSH) and subsequent cysteine S-conjugate β-lyase-mediated cleavage of the corresponding cysteine conjugate (1123-CYS) was monitored in hepatic and renal subcellular fractions of mice, rats, minipigs, rabbits, and humans. While 1123-GSH formation occurred at higher rates in rat and rabbit liver S9 compared to minipig and human S9, increased β-lyase cleavage of 1123-CYS was observed in minipig kidney cytosol as compared to cytosolic fractions of other species. Increased β-lyase activity in minipig cytosol was accompanied by time-dependent formation of monofluoroacetic acid (MFA), a highly toxic compound that interferes with cellular energy production via inhibition of aconitase. Consistent with the significantly lower β-lyase activity in human cytosols, the intensity of the MFA signal in human cytosols was only a fraction of the signal obtained in minipig subcellular fractions. Even though the inconsistencies between GSH and β-lyase-dependent metabolism do not allow to draw a firm conclusion on the overall contribution of the mercapturic acid pathway to HFO-1123 biotransformation and toxicity in vivo, the β-lyase data suggest that humans may be less susceptible to HFO-1123 toxicity compared to minipigs.

Keywords: 19F-NMR; HFO-1123; In vitro biotransformation; LC–MS/MS; Mercapturic acid pathway; Trifluoroethene; β-Lyase.

PubMed Disclaimer

Conflict of interest statement

Authors associated with the University of Wuerzburg (R. Dekant, R. Bertermann, J. Serban, S. Sharma, W. Dekant, and A. Mally) have no conflicts of interest to declare. Shinohara M., Morisawa Y. and Okamoto H. are employees of AGC Inc. W. J. Brock is scientific consultant for AGC Inc.

Figures

Fig. 1

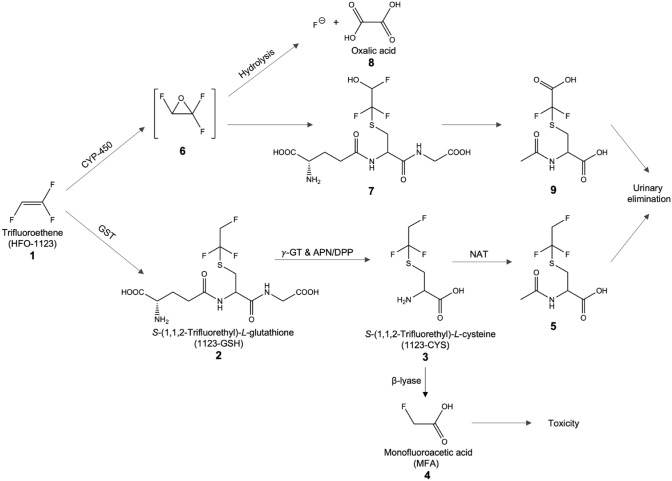

Fig. 1
Proposed biotransformation of HFO-1123 1 to account for its toxicity in sensitive species. Cytochrome P450 (CYP-450)-mediated biotransformation may result in hydrolysis of the 1,2,2-trifluorooxirane 6 into F and oxalic acid 8 or subsequent conjugation with GSH 7 and urinary excretion of a mercapturic acid 9. The mercapturic acid pathway (lower pathway) is expected to be responsible for HFO-1123 toxicity. HFO-1123 may be conjugated with GSH, likely mediated by glutathione S-transferases (GST), to form S-(1,1,2-trifluorethyl)-L-glutathione (1123-GSH) 2. This conjugate may be cleaved by γ-glutamyltransferases (γ-GT) and aminopeptidase (APN)/dipeptidase (DPP) to form the corresponding cysteine S-conjugate 3 (S-(1,1,2-trifluoroethyl)-L-cysteine; 1123-CYS). 1123-CYS can either be eliminated by N-acetyltransferases (NAT) or bioactivated by β-lyases. The latter reaction may give rise to monofluoroacetic acid 4 (MFA) as the ultimate toxic agent expected to be responsible for HFO-1123 toxicity
Fig. 2
Fig. 2
a Time-dependent formation of 1123-GSH in hepatic S9 fractions of mice, rats, rabbits, minipigs, and humans in the presence or absence of an NADPH regenerating system. b Velocity of 1123-GSH formed (ng 1123-GSH/mL/h) in hepatic S9 fractions of mice, rats, rabbits, minipigs, and humans after incubation with HFO-1123. Results are presented as mean ± standard deviation (n = 3)
Fig. 3.

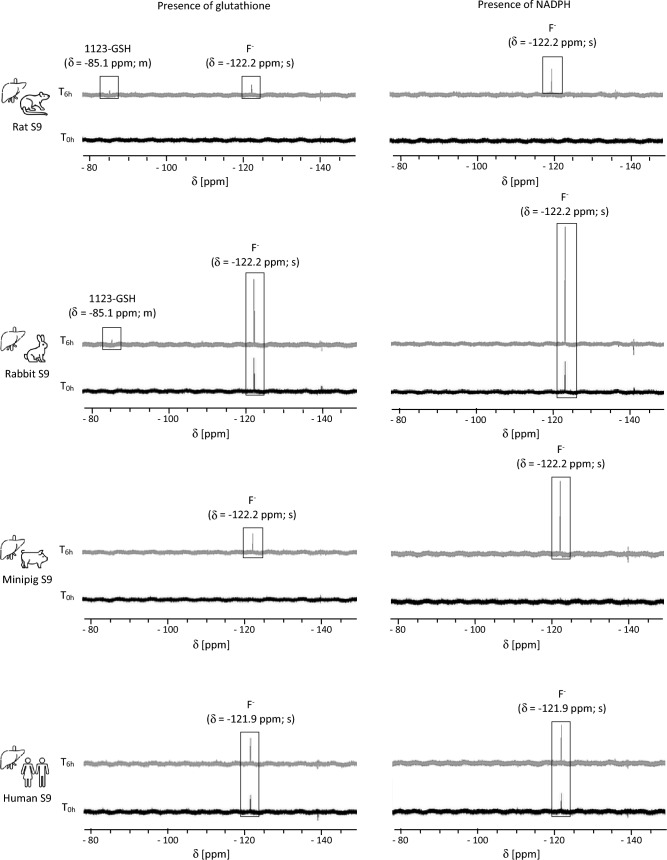

Fig. 3.
19F-NMR spectra of rat, human, minipig, and rabbit hepatic S9 subcellular fractions incubated with HFO-1123 in the presence of either GSH or the NADPH regenerating system. The black spectra show fluorine-containing metabolites present at the beginning of the incubation (T0h) and the gray spectra reveal fluorine-containing metabolites after 6 h of incubation (T6h). 19F-NMR signals corresponding to 1123-GSH (δ = − 85.1 ppm, m) were detected in hepatic rat and rabbit S9 fractions in the presence of GSH, but not in S9 of other species. Compared to human and rat S9, increased F formation was detected in minipig and rabbit hepatic S9 in the presence of an NADPH regenerating system. In contrast to the synthesized 1123-GSH reference compound, which is characterized by two signals (δ = − 85.0 ppm, m, 2F; δ = − 227.9 ppm, m, 1F), only the signal corresponding to the C1 bound fluorine atoms (δ = − 85.1 ppm, m, 2F) was detected in rat and rabbit incubations close to the limit of detection. Absence of the additional signal (δ = − 227.9 ppm, m, 1F) and signals in other S9 fractions can be explained by the lower sensitivity of 19F-NMR compared to LC–MS/MS
Fig. 4

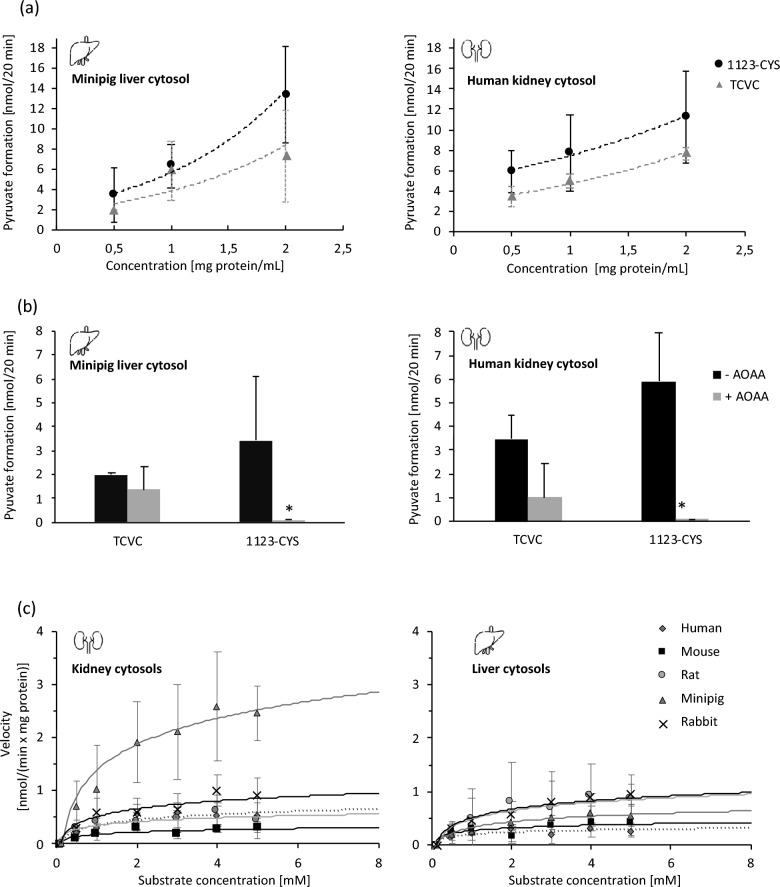

Fig. 4
a Protein concentration-dependent formation of pyruvate in incubations of minipig liver and human kidney cytosol with 1123-CYS and b inhibition of pyruvate formation in incubations of cytosols and 1123-CYS/TCVC in the presence of AOAA. c In vitro kinetics of β-lyase-mediated cleavage of 1123-CYS in renal and hepatic cytosols (Mouse, rat, minipig, rabbit, and human). Data are presented as mean ± standard deviation of three independent experiments performed in triplicates (n = 3)
Fig. 5

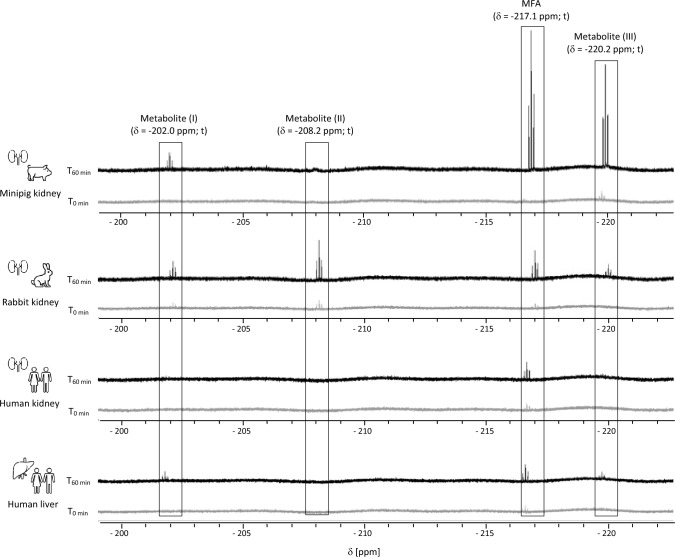

Fig. 5
Identification of species-differences in β-lyase-dependent formation of MFA and metabolites containing a CH2F unit in cytosolic fractions of minipigs, rabbits and humans. Resonances were assigned to MFA (δ = − 217.1 ppm; t, JHF = 48.4 Hz); unknown CH2F unit-containing metabolite (I) (δ = − 202.0 ppm; t, JHF = 48.5 Hz); unknown CH2F unit-containing metabolite (II) ((δ = − 208.2 ppm, t, JHF = 48.5 Hz); unknown CH2F unit-containing metabolite (III) (δ = − 220.2 ppm; t, JHF = 48.5 Hz)
Fig. 6
Fig. 6
Inhibition of the formation of MFA and unknown metabolites containing a CH2F unit in the presence of AOAA in renal minipig cytosol. Resonances were assigned MFA (δ = − 217.1 ppm; t, JHF = 48.4 Hz); unknown CH2F unit-containing metabolite (I) (δ = − 202.0 ppm; t, JHF = 48.5 Hz) and unknown CH2F unit-containing metabolite (III) (δ = − 220.2 ppm; t, JHF = 48.5 Hz)
Fig. 7

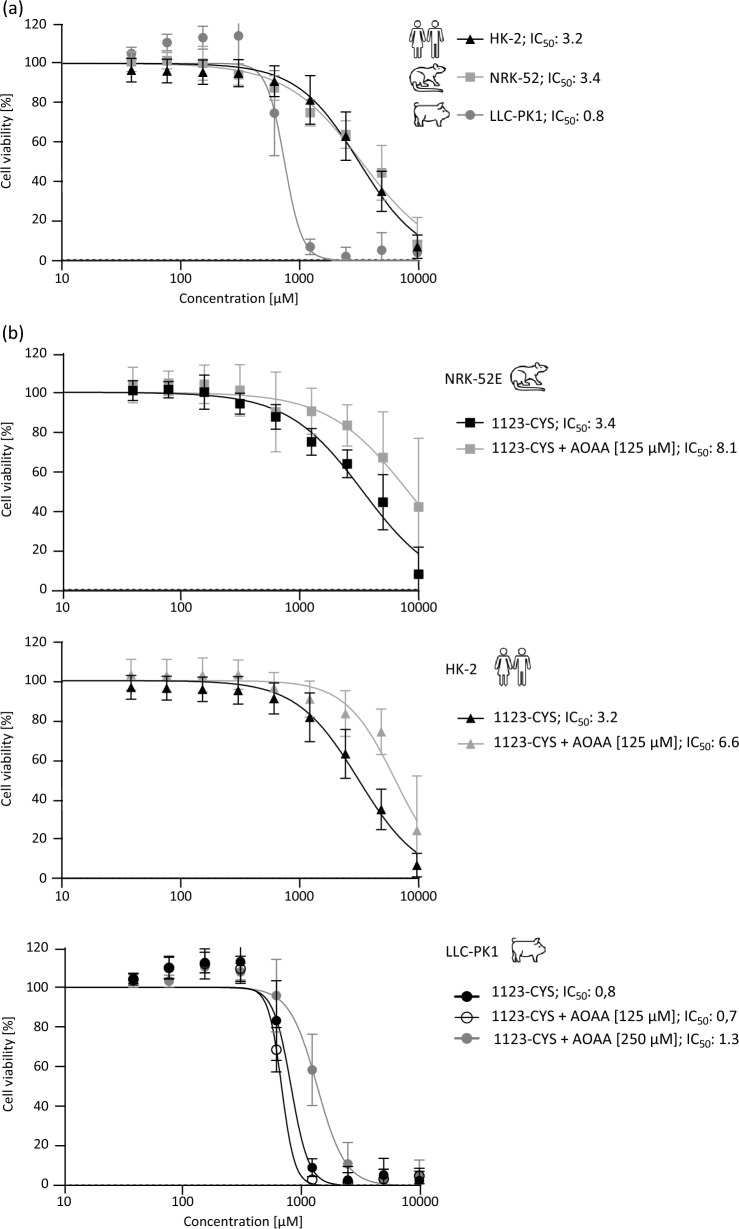

Fig. 7
Cytotoxicity of 1123-CYS in human (HK-2), rat (NRK-52E) and porcine (LLC-PK1) proximal tubular cell lines after 48 h treatment with a 1123-CYS and b 1123-CYS in the absence and presence of the β-lyase inhibitor AOAA (NRK-52E and HK-2: 125 µM AOAA; LLC-PK1: 125 µM/250 µM AOAA). Results are presented as mean ± standard deviation of three independent experiments, each performed in triplicates
