. 2023 Oct-Dec;106(4):368504231205392.
doi: 10.1177/00368504231205392.

The impact of zirconium dioxide nanoparticles on the color stability of artificially aged heat-polymerized maxillofacial silicone elastomer

Mohammed Abdalqadir  1 , Kaml Mohammed  1 , Bruska Azhdar  2
Affiliations

The impact of zirconium dioxide nanoparticles on the color stability of artificially aged heat-polymerized maxillofacial silicone elastomer

Mohammed Abdalqadir et al. Sci Prog. 2023 Oct-Dec.

Abstract

The limited service life of craniofacial prostheses due to degradation and color instability is a significant challenge. This in vitro study aimed to determine how zirconium dioxide (ZrO2) nanoparticles affect the color stability of M511 heat temperature vulcanizing (HTV) maxillofacial silicone elastomers after artificial aging. ZrO2 nanoparticles were added at concentrations of 1, 2, and 3 wt% to M511 HTV silicone elastomer. Two intrinsic silicone pigments were used (red and mocha). Silicone with pigment and without ZrO2 nanoparticles were used as the control. Eighty disk-shaped specimens were fabricated and divided into eight experimental groups, each containing ten specimens (n = 10). All specimens were subjected to artificial aging, and color changes were recorded at 252, 504, and 1008 h intervals. The L*a *b * values were measured using a colorimeter and the CIE-Lab system. To interpret the recorded color differences, a 50:50 percent perceptibility threshold (ΔE* = 1.1) and acceptability threshold (ΔE* = 3.0) were implemented. A one-way analysis of variance and Tukey's post hoc test at a significance level of 0.05 were used for the statistical analysis. We found that every evaluated specimen group exhibited a chromatic change (ΔE* > 0). The ΔE* values for the mocha pigments with and without ZrO2 nanoparticles were below the perceptible threshold (1.1 units). The ΔE* values of the red pigment with and without ZrO2 nanoparticles were significantly higher than the acceptable threshold (P < 0.000). According to the findings of this in vitro study, all the specimens underwent color changes (ΔE* > 0). The red pigment exhibited highly significant chromatic alterations. In contrast, mocha pigments with and without ZrO2 nanoparticles exhibited the least color change and were below the perceptible threshold. ZrO2 nanoparticles provided important protection and showed a reduction in color change.

Keywords: ZrO2 nanoparticles; artificial aging; color change; color stability; elastomers; maxillofacial silicone; nanoparticles.

PubMed Disclaimer

Conflict of interest statement

Declaration of conflicting interestsThe author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Figures

Figure 1.
Figure 1.

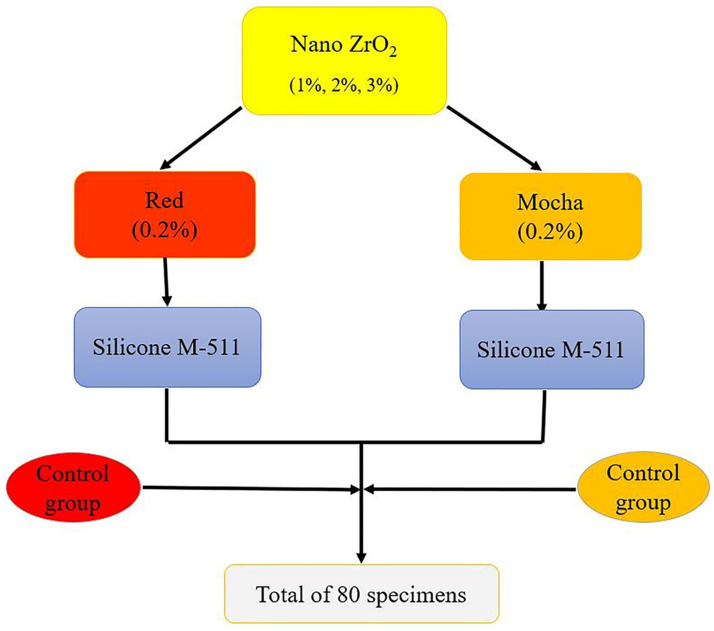

Flow chart of the specimen distribution and preparation.
See this image and copyright information in PMC

References

    1. Beatty MW, Mahanna GK, Dick K, et al. Color changes in dry-pigmented maxillofacial elastomer resulting from ultraviolet light exposure. J Prosthet Dent 1995; 74: 493–498. - PubMed
    1. Hecker DM. Maxillofacial rehabilitation of a large facial defect resulting from an arteriovenous malformation utilizing a two-piece prosthesis. J Prosthet Dent 2003; 89: 109–113. - PubMed
    1. Kiat-amnuay S, Johnston DA, Powers JMet al. et al. Color stability of dry earth pigmented maxillofacial silicone A-2186 subjected to microwave energy exposure. J Prosthodont 2005; 14: 91–96. - PubMed
    1. Goiato MC, Pesqueira AA, Ramos da Silva C, et al. Patient satisfaction with maxillofacial prosthesis. Literature review. J Plast Reconstr Aesthet Surg 2009; 62: 275–280. - PubMed
    1. Mancuso DN, Goiato MC, dos Santos DM. Color stability after accelerated aging of two silicones, pigmented or not, for use in facial prostheses. Braz Oral Res 2009; 23: 144–148. - PubMed
