Active learning for extracting surgomic features in robot-assisted minimally invasive esophagectomy: a prospective annotation study

Abstract

Background: With Surgomics, we aim for personalized prediction of the patient's surgical outcome using machine-learning (ML) on multimodal intraoperative data to extract surgomic features as surgical process characteristics. As high-quality annotations by medical experts are crucial, but still a bottleneck, we prospectively investigate active learning (AL) to reduce annotation effort and present automatic recognition of surgomic features.

Methods: To establish a process for development of surgomic features, ten video-based features related to bleeding, as highly relevant intraoperative complication, were chosen. They comprise the amount of blood and smoke in the surgical field, six instruments, and two anatomic structures. Annotation of selected frames from robot-assisted minimally invasive esophagectomies was performed by at least three independent medical experts. To test whether AL reduces annotation effort, we performed a prospective annotation study comparing AL with equidistant sampling (EQS) for frame selection. Multiple Bayesian ResNet18 architectures were trained on a multicentric dataset, consisting of 22 videos from two centers.

Results: In total, 14,004 frames were tag annotated. A mean F1-score of 0.75 ± 0.16 was achieved for all features. The highest F1-score was achieved for the instruments (mean 0.80 ± 0.17). This result is also reflected in the inter-rater-agreement (1-rater-kappa > 0.82). Compared to EQS, AL showed better recognition results for the instruments with a significant difference in the McNemar test comparing correctness of predictions. Moreover, in contrast to EQS, AL selected more frames of the four less common instruments (1512 vs. 607 frames) and achieved higher F1-scores for common instruments while requiring less training frames.

Conclusion: We presented ten surgomic features relevant for bleeding events in esophageal surgery automatically extracted from surgical video using ML. AL showed the potential to reduce annotation effort while keeping ML performance high for selected features. The source code and the trained models are published open source.

Keywords: Artificial intelligence; Machine learning; Minimally invasive surgery; Precision medicine; Surgical data science; Surgomics.

Fig. 1

Visual abstract of the annotation study. The development process of the surgomic features with required data and selected features, experimental setup with feature annotation investigating equidistant sampling (EQS) vs. active learning (AL) for frame selection, and results are depicted

Fig. 2

Annotation of surgomic features. Example frames for all ordinal and binary surgomic features. For the ordinal features, blood and smoke, example frames for every scale level are presented. Supplement 1 includes a detailed annotation protocol for all features

Fig. 3

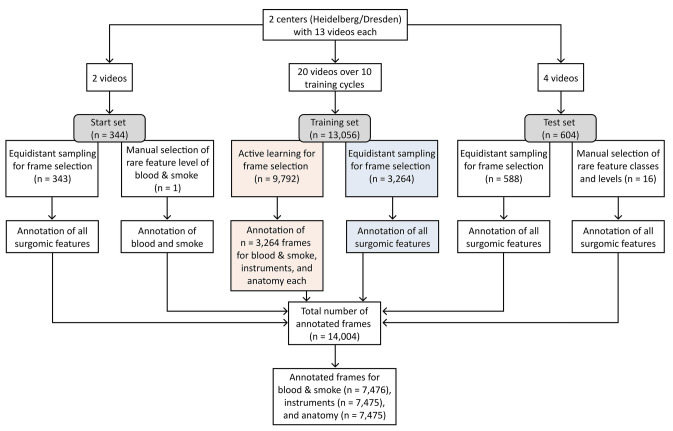

Flow diagram of the frame selection and annotation process

Fig. 4

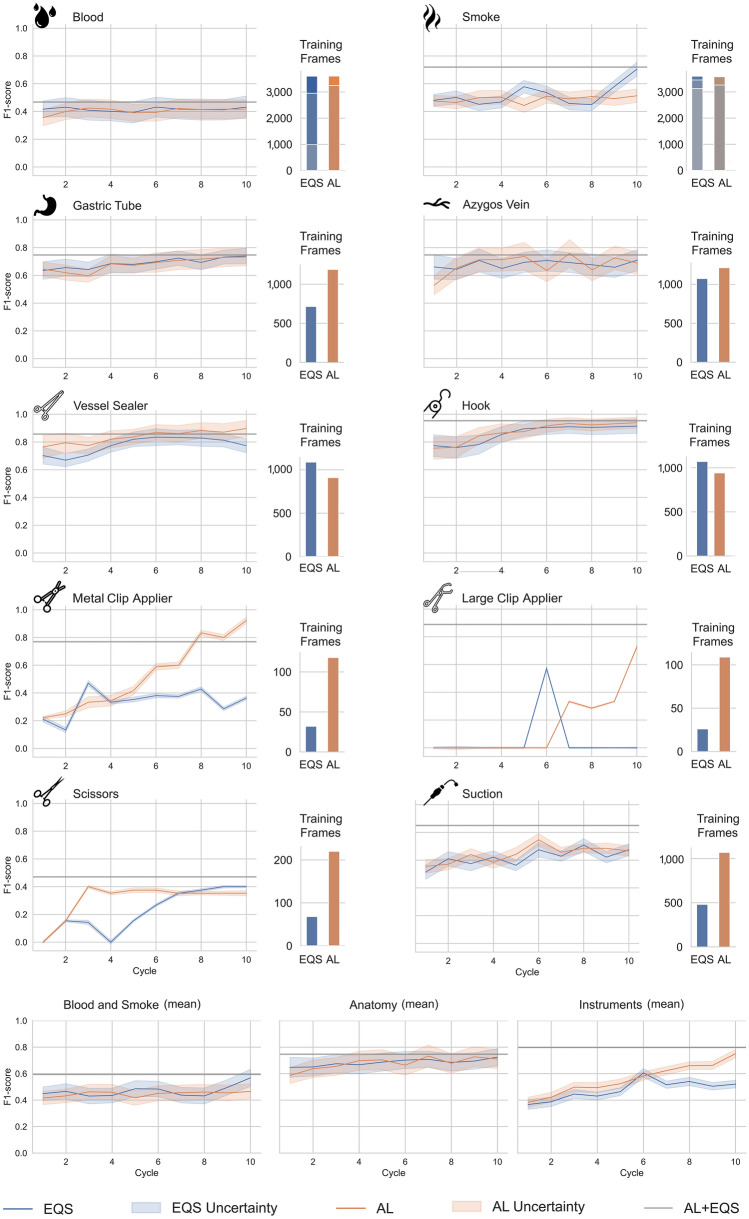

F1-scores of surgomic features for the ten cycles (line-plots) and total number of available training frames (bar plots). Equidistant sampling (EQS) for frame selection is depicted in blue and active learning (AL) in orange, the performance of the model trained on all available frames after ten cycles is shown as a reference line (AL + EQS). An error bar visualizes the uncertainty of the model, as given by the std between predictions in Bayesian models, during inference. These error bars should not be confused with confidence intervals

Fig. 5

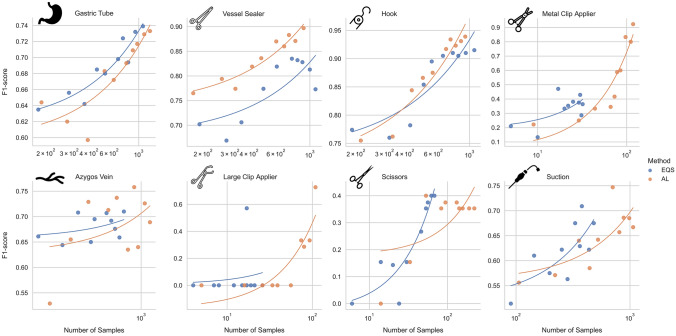

F1-scores of anatomy and instrument features in relation to the number of available positive samples. The single samples of F1-score and number of samples are plotted for all ten cycles with equidistant sampling (EQS) in blue and active learning (AL) in orange. A regression line of order 1 is shown with the same colors (Color figure online)

Fig. 6

Surgomic report. The surgomic report is presented containing the automatically assessed feature information along the whole surgery (a). The report on the right (b) contains in addition the mean certainty of each prediction (red dots). A videogram is depicted on top. For the instrument/organ features the total duration of the features and the amount of tool usage/organ presence (in ‰) are shown. For the features “blood” and “smoke” the amount as well as the duration of a relevant amount of blood/smoke (levels > 2 for blood, > 1 for smoke) is shown (Color figure online)

Fig. 7

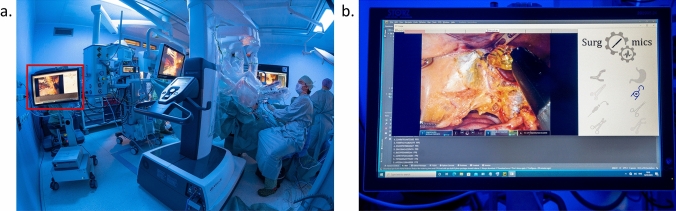

Live evaluation of Surgomics in the operating room. The surgomic feature tower was brought into the operating room (a) depicting the live detection of the surgomic features (b)
