. 2023 Dec;54(4):2857-2865.
doi: 10.1007/s42770-023-01154-4. Epub 2023 Oct 23.

Electronic nose versus VITEK 2 system for the rapid diagnosis of bloodstream infections

Ehab I Mohamed  1 , Mohamed S Turkey  2   3 , Radwa A Meshref  4 , Abeer A Ghazal  2 , Sherine M Shawky  2 , Aliaa G Aboulela  2
Affiliations

Electronic nose versus VITEK 2 system for the rapid diagnosis of bloodstream infections

Ehab I Mohamed et al. Braz J Microbiol. 2023 Dec.

Abstract

Infectious diseases that spread through the bloodstream, known as bloodstream infections (BSIs), are a major global health problem. Positive outcomes for patients with sepsis are typically the result of prompt treatment started after an early diagnosis of BSIs. In this study, we evaluated the capabilities of a portable electronic nose (E-Nose) to detect BSIs with two commonly isolated Gram-negative bacterial species, E. coli and K. pneumonia. One hundred and five blood samples were randomly collected for blood culture examinations using BACTEC and VITEK 2 system, and headspace analysis by an E-Nose from June to December 2021. Classification accuracy of E. coli, K. pneumonia, and negative controls was measured using principal component analysis, area under the receiver operating characteristic curve, sensitivity, and specificity analysis. After incubation for 24 h, cluster plots generated using principal component analysis demonstrated that E-Nose could accurately diagnose the presence of E. coli and K. pneumonia in BACTEC blood culture bottles with a sensitivity and specificity of 100% in just 120 s. The E-Nose method has been shown to be an immediate, precise, and cost-effective alternative to automated blood culture BACTEC and VITEK 2 systems for the fast detection of the causative bacterial pathogens of BSIs in clinical practice. Thus, patients with such Gram-negative bacteremia can have guided empirical antimicrobial therapy on the same day of BSIs diagnosis, which can be lifesaving.

Keywords: BACTEC; E. coli; Electronic nose (E-Nose); K. pneumonia; VITEK 2.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

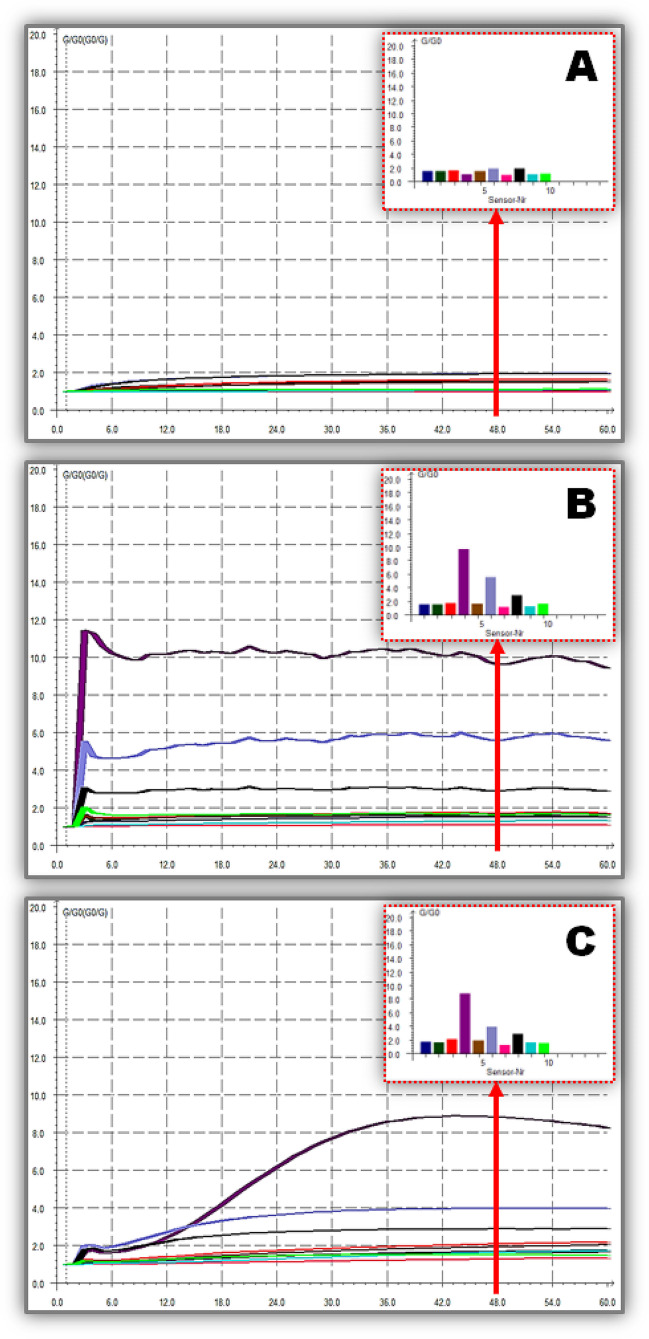

Typical continuous alterations in 10 sensors resistance (Ri) and relative conductance (G/Go) of an e-nose measurement time-plot for blood culture bottle from A a negative control sample for bacterial infections, B a positive infected sample with E. coli, and C a positive infected sample with K. pneumonia. In the headspace of blood samples infected with E. coli and K. pneumonia, sensors S4, S6, and S8, which are sensitive mostly to H2, CH3, and CO compounds, respectively, were significantly different from negative controls
Fig. 2
Fig. 2

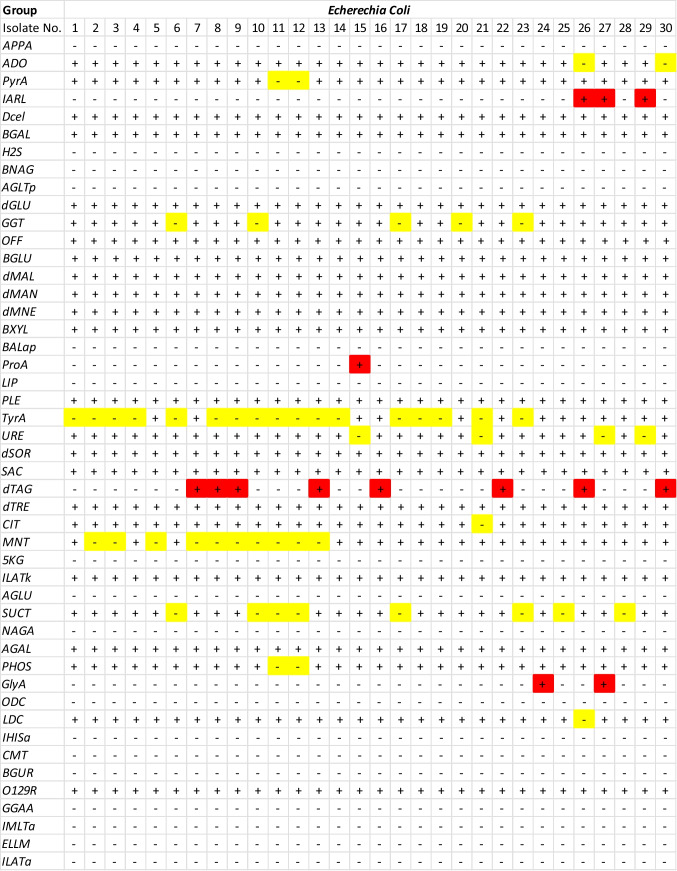

VITEK 2 system results for identifying infected blood culture bottles tested positive for E. coli
Fig. 3
Fig. 3

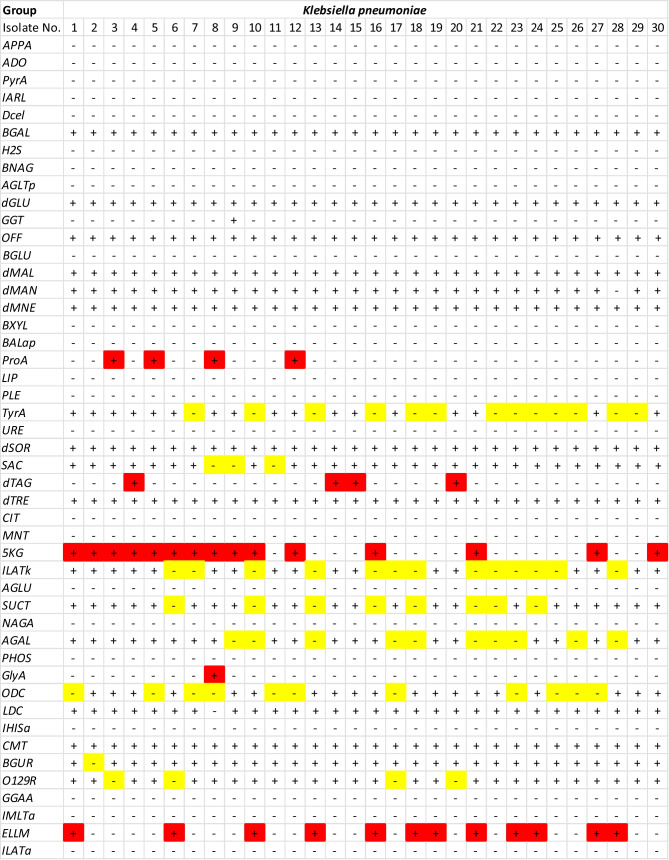

VITEK 2 system results for identifying infected blood culture bottles tested positive for K. pneumonia
Fig. 4
Fig. 4

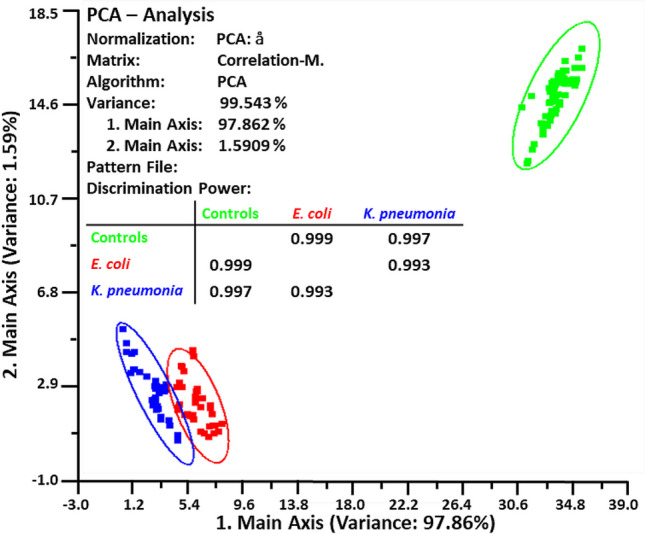

Cluster plot of principal component #1 against principal component #2 for an electronic nose (E-Nose) with an array of 10 metal-oxide sensors applied to the headspace of infected blood culture bottles with E. coli and K. pneumonia and negative controls
See this image and copyright information in PMC

References

    1. Datta S, Wattal C, Goel N, Oberoi JK, Raveendran R, Prasad KJ. A ten year analysis of multi-drug resistant blood stream infections caused by Escherichia coli & Klebsiella pneumoniae in a tertiary care hospital. Ind J Med Res. 2012;135(6):907–912. - PMC - PubMed
    1. Sung H, Ferlay J, Siegel RL, Laversanne M, Soerjomataram I, Jemal A, et al. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J Clin. 2021;71:209–249. doi: 10.3322/caac.21660. - DOI - PubMed
    1. Ombelet S, Barbé B, Affolabi D, Ronat JB, Lompo P, Lunguya O, et al. Best practices of blood cultures in low- and middle-income countries. Front Med. 2019;6:131. doi: 10.3389/fmed.2019.00131. - DOI - PMC - PubMed
    1. Hernández-Durán M, López-Jácome LE, Colín-Castro CA, Cerón-González G, Ortega-Peña S, Vanegas-Rodríguez S, et al. Comparison of the MicroScan WalkAway and VITEK 2 Compact systems for the identification and susceptibility of clinical Gram-positive and Gram-negative bacteria. Investig Discap. 2017;6(3):105–114.
    1. Khine S, Rabah L, Palanisamy N, Kailin Liroff K, Bachuwa G. Enterobacter cloacae as sole organism responsible for vertebral osteomyelitis/discitis and vertebral collapse in a patient with intravenous drug abuse. BMJ Case Reports CP. 2023;2023(16):e254988. doi: 10.1136/bcr-2023-254988. - DOI - PMC - PubMed
