. 2023 Oct 29;23(21):8807.
doi: 10.3390/s23218807.

Research on the Relative Position Detection Method between Orchard Robots and Fruit Tree Rows

Baoxing Gu  1 , Qin Liu  2 , Yi Gao  1 , Guangzhao Tian  1   3 , Baohua Zhang  4 , Haiqing Wang  1 , He Li  1
Affiliations

Research on the Relative Position Detection Method between Orchard Robots and Fruit Tree Rows

Baoxing Gu et al. Sensors (Basel). .

Abstract

The relative position of the orchard robot to the rows of fruit trees is an important parameter for achieving autonomous navigation. The current methods for estimating the position parameters between rows of orchard robots obtain low parameter accuracy. To address this problem, this paper proposes a machine vision-based method for detecting the relative position of orchard robots and fruit tree rows. First, the fruit tree trunk is identified based on the improved YOLOv4 model; second, the camera coordinates of the tree trunk are calculated using the principle of binocular camera triangulation, and the ground projection coordinates of the tree trunk are obtained through coordinate conversion; finally, the midpoints of the projection coordinates of different sides are combined, the navigation path is obtained by linear fitting with the least squares method, and the position parameters of the orchard robot are obtained through calculation. The experimental results show that the average accuracy and average recall rate of the improved YOLOv4 model for fruit tree trunk detection are 5.92% and 7.91% higher, respectively, than those of the original YOLOv4 model. The average errors of heading angle and lateral deviation estimates obtained based on the method in this paper are 0.57° and 0.02 m. The method can accurately calculate heading angle and lateral deviation values at different positions between rows and provide a reference for the autonomous visual navigation of orchard robots.

Keywords: YOLO; autonomous navigation; machine vision; orchard robot; positional parameters.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Entire design of the system.

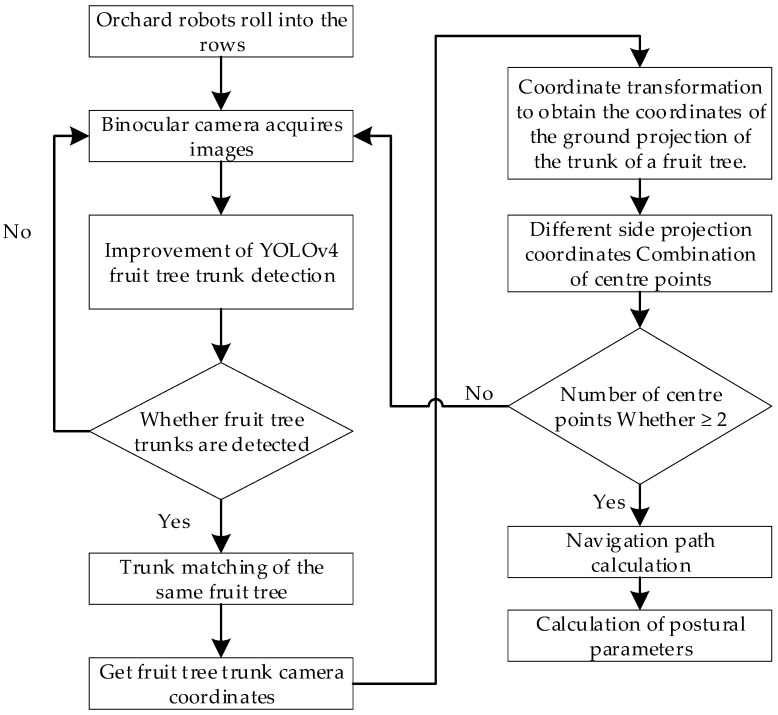

Figure 2
Figure 2
Technical process of estimating pose parameters between trees.
Figure 3
Figure 3
The ECA module. Note: C, W, and H denote the feature channel size, width, and height of the feature map, respectively; σ denotes the Sigmoid activation function.
Figure 4
Figure 4
The network model of the ECA5-YOLOv4 algorithm.
Figure 5
Figure 5
Structure of binocular camera.

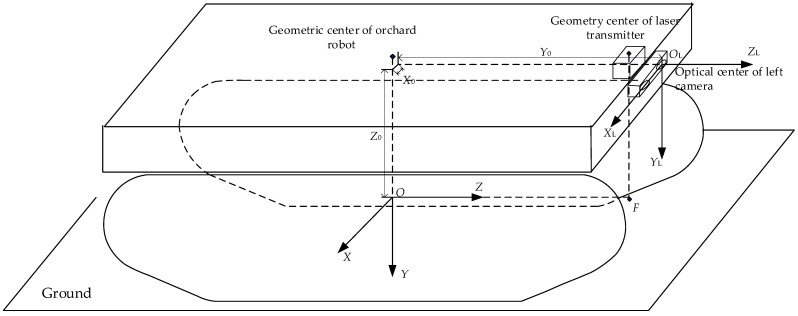

Figure 6
Figure 6
Coordinate system and transformation relations.

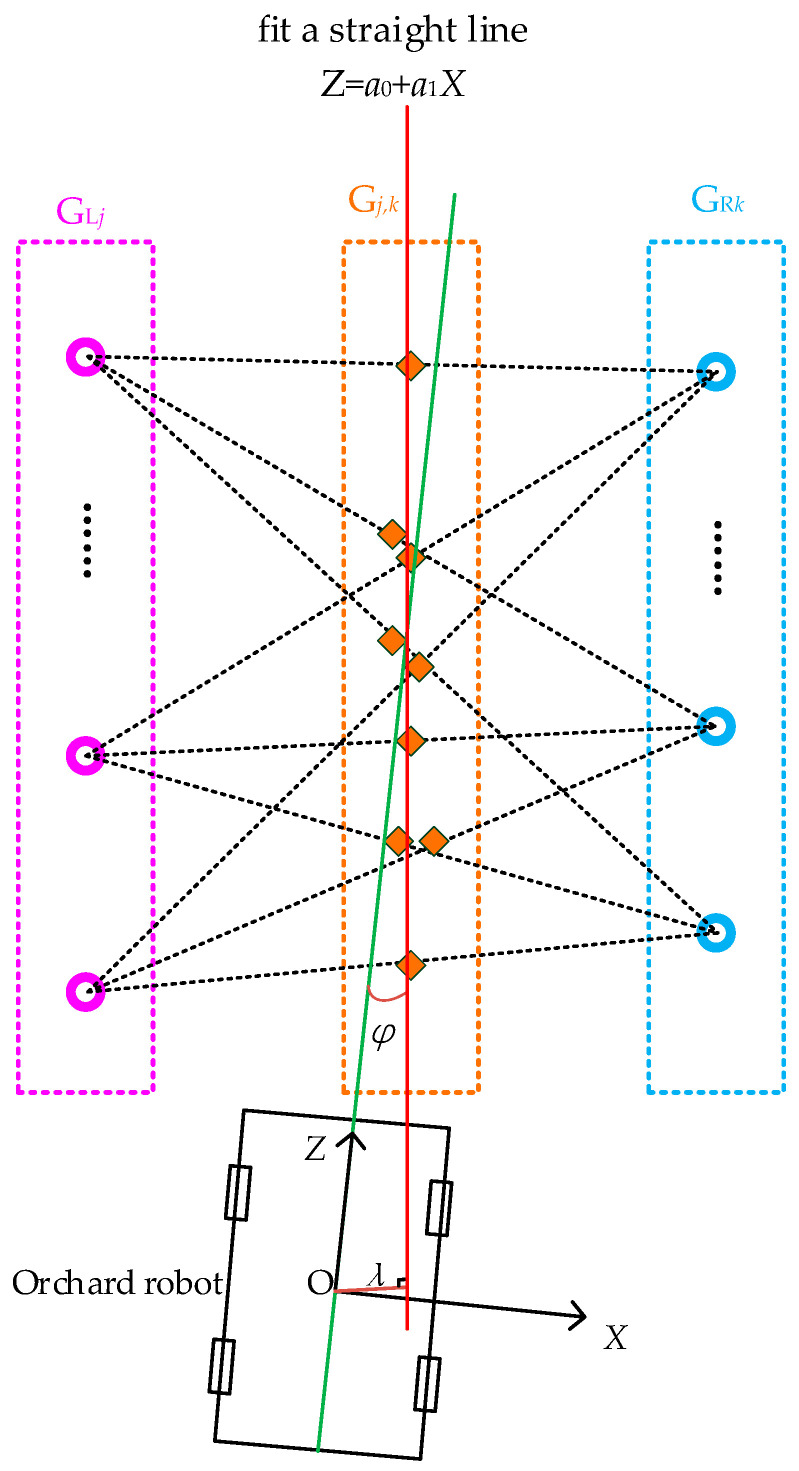

Figure 7
Figure 7
Driving position relationship between rows.
Figure 8
Figure 8
The loss function of model training.
Figure 9
Figure 9
The results of tree trunk detection based on different models.
Figure 10
Figure 10
Enlarged ECA5-YOLOv4 image.
See this image and copyright information in PMC

References

    1. Zhao C.J. The development current situation and future outlook of smart agriculture. J. South China Agric. Univ. 2021;42:1–7.
    1. Hu J.T., Gao L., Bai X.P., Li T.C., Liu X.G. Research progress in automatic navigation technology of Agricultural machinery. Trans. Chin. Soc. Agric. Eng. 2015;31:1–10.
    1. Zhou J., He Y.Q. Research progress in agricultural machinery navigation path planning. Trans. Chin. Soc. Agric. Mach. 2021;52:1–14.
    1. Qi F., Zhu M., Zhou X.Q., Wei X.M. Analysis of the relationship between agricultural engineering and China’s agricultural modernization. Trans. Chin. Soc. Agric. Eng. 2015;31:1–10.
    1. Luo X.W., Liao J., Hu L., Zang Y., Zhou Z.Y. Improve the level of agricultural mechanization to promote sustainable agricultural development. Trans. Chin. Soc. Agric. Eng. 2016;32:1–11.
