Improving Hi-C contact matrices using genome graphs

Abstract

Three-dimensional chromosome structure plays an important role in fundamental genomic functions. Hi-C, a high-throughput, sequencing-based technique, has drastically expanded our comprehension of 3D chromosome structures. The first step of Hi-C analysis pipeline involves mapping sequencing reads from Hi-C to linear reference genomes. However, the linear reference genome does not incorporate genetic variation information, which can lead to incorrect read alignments, especially when analyzing samples with substantial genomic differences from the reference such as cancer samples. Using genome graphs as the reference facilitates more accurate mapping of reads, however, new algorithms are required for inferring linear genomes from Hi-C reads mapped on genome graphs and constructing corresponding Hi-C contact matrices, which is a prerequisite for the subsequent steps of the Hi-C analysis such as identifying topologically associated domains and calling chromatin loops. We introduce the problem of genome sequence inference from Hi-C data mediated by genome graphs. We formalize this problem, show the hardness of solving this problem, and introduce a novel heuristic algorithm specifically tailored to this problem. We provide a theoretical analysis to evaluate the efficacy of our algorithm. Finally, our empirical experiments indicate that the linear genomes inferred from our method lead to the creation of improved Hi-C contact matrices. These enhanced matrices show a reduction in erroneous patterns caused by structural variations and are more effective in accurately capturing the structures of topologically associated domains.

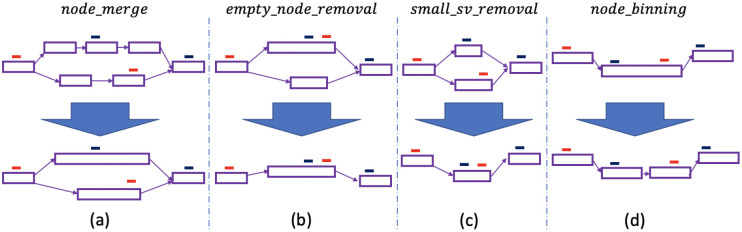

Figure S1:

Four components of our graph pruning algorithm. Each red line represents one end of a read pair, and each blue line represents the other end.

Figure S2:

An example of converting $G$ (a) to $G^{\prime }$ (b) in the proof of Theorem 1.

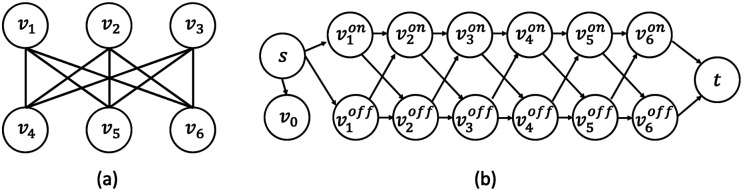

Figure S3:

An example of generating a DAG (b) from a cubic graph instance (a) in the proof of Theorem 5.

Figure S4:

A worst-case example of the heuristic algorithm

Figure S5:

The region between 77, 000, 000bp and 102, 000, 000bp in chromosome 13. The genome graph shows a large deletion ($s_2$) with an approximate length of 9, 000, 000bp.

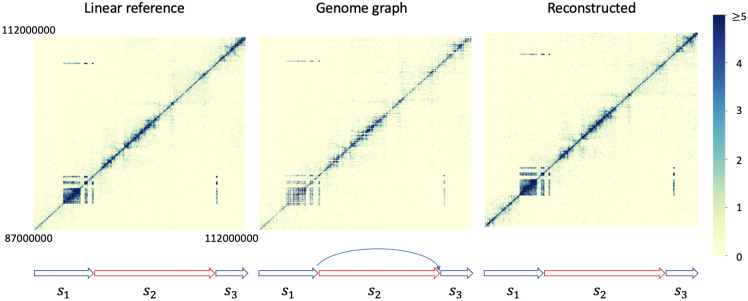

Figure S6:

The region between 87, 000, 000bp and 112, 000, 000bp in chromosome 13. The genome graph shows a large deletion ($s_2$) with an approximate length of 15, 000, 000bp.

Figure S7:

The region between 0bp and 23, 000, 000bp in chromosome 18. The genome graph shows a large deletion ($s_2$) with an approximate length of 20, 000, 000bp. The empty stripe is the centromere region.

Figure S8:

TADs in the same region as Figure 2. TADs are called by Armatus with hyper-parameter ${\gamma }_{Armatus}=0.5$.

Figure S9:

TADs in the same region as Figure S5. TADs are called by Armatus with hyper-parameter ${\gamma }_{Armatus}=0.5$.

Figure S10:

TADs in the same region as Figure 3. TADs are called by Armatus with hyper-parameter ${\gamma }_{Armatus}=0.5$.

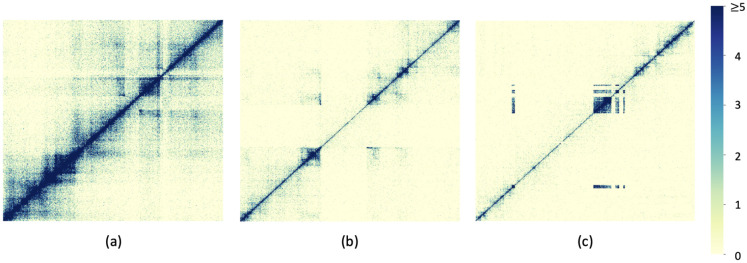

Figure S11:

Three regions of contact matrices generated by the longest $M$-weighted path algorithm, corresponding to regions shown in Figure 3, Figure 2, and Figure S5.

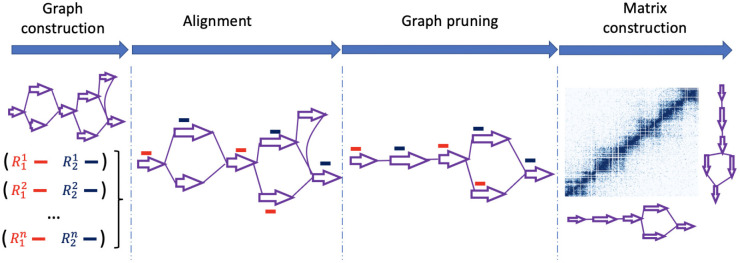

Figure 1:

The workflow of our graph-based Hi-C processing pipeline. Each red line represents one end of a read pair, and each blue line represents the other end.

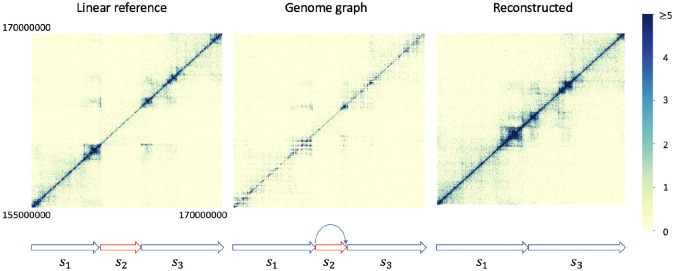

Figure 2:

The region between 155, 000, 000bp and 170, 000, 000bp in chromosome 4. The genome graph shows a large deletion ($s_2$) with an approximate length of 3, 000, 000bp. Note that besides this large deletion, the genome graph also contains numerous other structural variations within this region. These are not shown in the plot for the sake of clearer visualization.

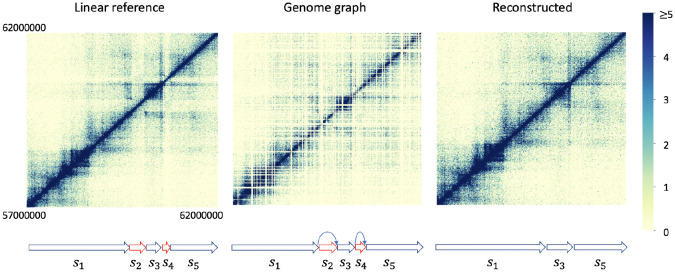

Figure 3:

The region between 57, 000, 000bp and 62, 000, 000bp in chromosome 3. The genome graph shows two deletions ($s_2$ and $s_4$) with approximate lengths of 300, 000bp and 150, 000bp respectively.

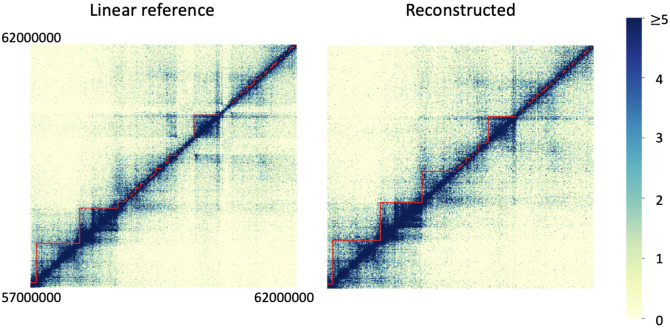

Figure 4:

(a),(b) CTCF peak signals around TAD boundaries from the linear reference genome (a) and the inferred linear genome (b). (c),(d) SMC3 peak signals around TAD boundaries from the linear reference genome (c) and the inferred linear genome (d). TADs are called by Armatus with hyperparameter $\gamma =0.5$.
