A novel free-operant framework enables experimental habit induction in humans

Abstract

Habits are a prominent feature of both adaptive and maladaptive behavior. Yet, despite substantial research efforts, there are currently no well-established experimental procedures for habit induction in humans. It is likely that laboratory experimental settings, as well as the session-based structure typically used in controlled experiments (also outside the lab), impose serious constraints on studying habits and other effects that are sensitive to context, motivation, and training duration and frequency. To overcome these challenges, we devised a unique real-world free-operant task structure, implemented through a novel smartphone application, whereby participants could freely enter the app (24 hours a day, 7 days a week) to win rewards. This procedure is free of typical laboratory constraints, yet well controlled. Using the canonical sensitivity to outcome devaluation criterion, we successfully demonstrated habit formation as a function of training duration, a long-standing challenge in the field. Additionally, we show a positive relationship between multiple facets of engagement/motivation and goal-directedness. We suggest that our novel paradigm can be used to study the neurobehavioral and psychological mechanism underlying habits in humans. Moreover, the real-world free-operant framework can potentially be used to examine other instrumental behavior-related questions, with greater face validity in naturalistic conditions.

Keywords: Free-operant; Goal-directed behavior; Habits; Learning; Mobile application; Model-based learning; Model-free learning; Motivation; Real-world; Reward.

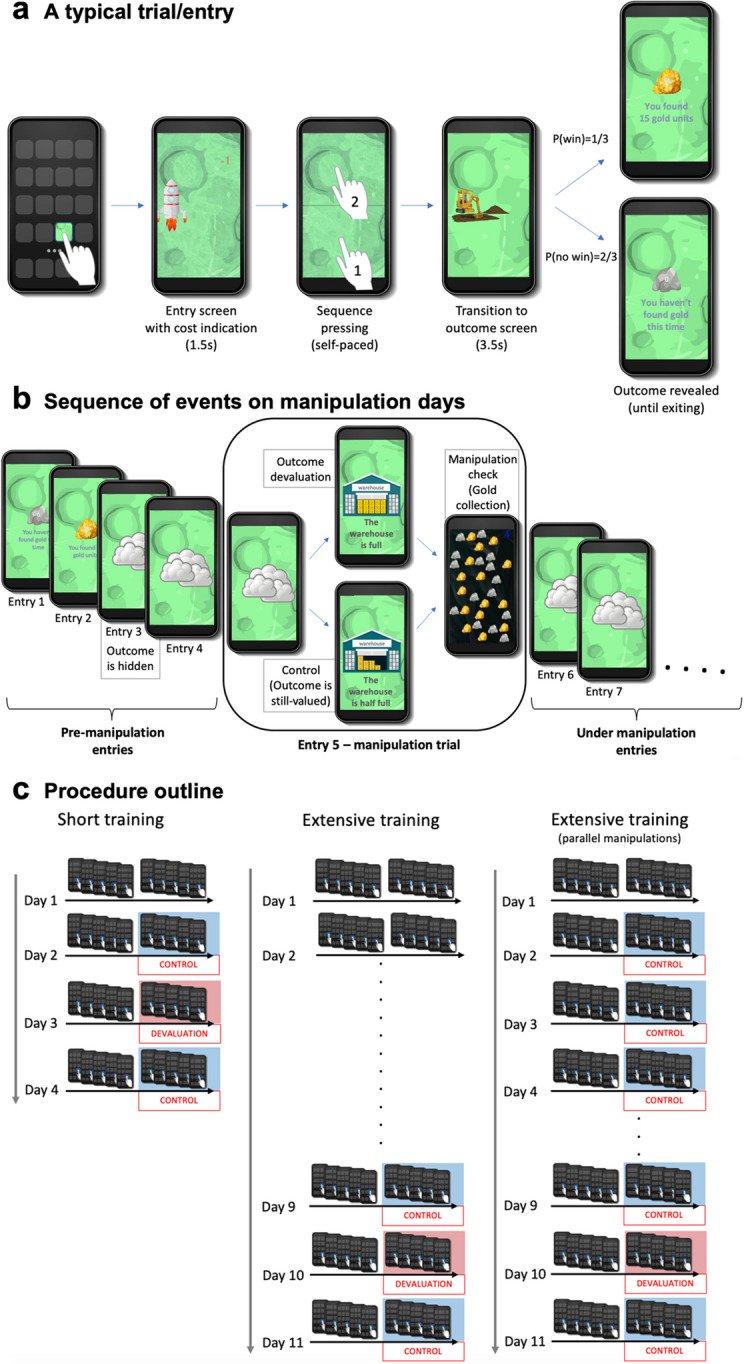

Fig. 1

Illustration of the experimental procedure. During the experiment, participants were free to enter a gamified experimental app to find gold (converted into real money in case a dedicated warehouse is not full) on a distant planet (“the gold planet”). Participants were free to enter whenever and as much as they liked (24/7). (a) On a typical entry/trial, participants first viewed an animation of their spaceship landing on the gold planet and an indication of the cost each entry involved (one unit of gold). Then, to start looking for gold, they had to press the lower and upper half of the screen (in this fixed order), followed by a digging for gold animation that ended with the outcome presentation (either 15 units of gold or a worthless piece of rock). (b) On manipulation days (unbeknownst to participants), the day started regularly. From the third daily entry and until the next day, the outcome was hidden. On the fifth entry, the participants were presented with either a message stating that the warehouse had reached capacity, effectively meaning they could not accumulate any more of the gold they would possibly find for the rest of the day (outcome devaluation), or a message stating that the warehouse had become half full, meaning they could continue to accumulate gold (a control manipulation). After confirming this message, they found a cave rich with gold and had 5 seconds to collect gold (by pressing the gold piles). Each press in the cave cost 10 gold units, and each pile was worth 15 units, which could only be accumulated if the warehouse was not full. This part was used as a manipulation check for the outcome devaluation. Subsequent entries during the rest of the day were considered entries under manipulation and were used as the main dependent variable. (c) Participants were assigned to three experimental groups that varied in training duration and number of control manipulations. * An online demo of the task is accessible at https://ranigera.github.io/RWFO_app_demo

Fig. 2

Raw daily entry data. Average (on the left panel) and median (on the right panel) numbers of entries to the app on each experimental day. Error bars on the left panel represent ±1 standard error of the mean (SEM) and on the right panel represent estimated 95% CI around the median (calculated as $Median\pm \frac{1.57xIQR}{\surd N}$, similar to boxplot notches). Semitransparent lines represent individual participants

Fig. 3

Participants’ entries on the main manipulation days. (a) On the upper part: a raster plot depicting participants’ entries (each vertical line represents an entry) throughout the three consecutive main manipulation days. Groups are separated by the dashed blue lines. On the lower part: the (relative) density of these entries across each group. (b) Relative proportion of valued (on the day before devaluation) vs. devalued entries ($\frac{stillvalued}{stillvalued+devalued}$). The horizontal lines represent the median. Statistical significance indicated here was extracted from the relevant simple interaction effects of our main analysis, that is, the negative-binomial mixed-model (with a “quasi-Poisson” parameterization). * “Extensive parallel” refers to the extensive training group with additional parallel control manipulations (in the first week)

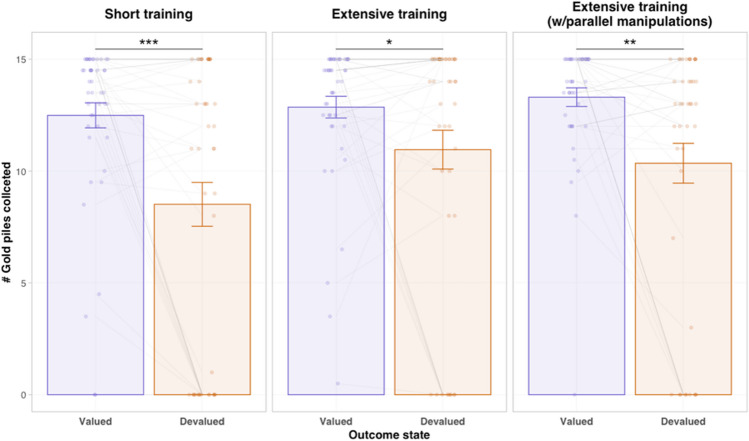

Fig. 4

Manipulation check of the outcome devaluation procedure. Mean gold piles collected during a 5-second period of free gold collection following outcome devaluation and control (value unchanged) manipulations. Each press (i.e., touching the screen) cost 10 units of gold and each pile was worth 15 units. Error bars represent ±1 std error of the mean (SEM)

Fig. 5

Cluster analysis of the behavioral adaptation index. Distribution of the identified clusters (latent subgroups) of the behavioral adaptation index. For each group (extensive training groups were combined), we fitted k = 1 or 2 clusters using a finite mixture-modeling analysis and chose the number of latent clusters that was most likely to generate the data (based on lowest BIC)

Fig. 6

Effects of engagement measures on habit expression. The individual behavioral adaptation index, used as the dependent measure, can range between –1 and 1, where values around 0 represent habitual responding, and higher values represent goal-directed behavior. (a) Effects of high vs. low baseline rates (upper vs. lower quartile) as measured on the pre-devaluation day (following the control manipulation). (b) Effects of self-engaged spaced and massed training measures (based on inferred participants’ self-initiated session). The contours are portrayed according to the predicted values from a rank-based regression. Values were set to 1 if their prediction was larger. For visualization purposes, we set an upper bound of three standard deviations from the mean for both measures (resulting in four participants’ points not presented). (c) Effects of the number of entries on the first day and (left) and of the average daily entries (right). The regression lines are portrayed according to the predicted values from a rank-based regression (used for an exploratory analysis)

Fig. 7

Relationship between MF learning and habit expression. Participants’ individual levels of MF learning (as extracted from the two-step task using a reinforcement learning computational model; Daw et al., ; Sharp et al., 2016) are illustrated along with their individual behavioral adaptation index as calculated from the app main task. The individual behavioral adaptation index ranges between –1 and 1, where values around 0 represent habitual responding, and higher values represent goal-directed behavior. The regression lines are portrayed according to the predicted values from a rank-based regression (used for an exploratory analysis). We consider this analysis of the relationship between these measures exploratory
