Diagnosis of Endometriosis Based on Comorbidities: A Machine Learning Approach

Abstract

Endometriosis is defined as the presence of estrogen-dependent endometrial-like tissue outside the uterine cavity. Despite extensive research, endometriosis is still an enigmatic disease and is challenging to diagnose and treat. A common clinical finding is the association of endometriosis with multiple diseases. We use a total of 627,566 clinically collected data from cases of endometriosis (0.82%) and controls (99.18%) to construct and evaluate predictive models. We develop a machine learning platform to construct diagnostic tools for endometriosis. The platform consists of logistic regression, decision tree, random forest, AdaBoost, and XGBoost for prediction, and uses Shapley Additive Explanation (SHAP) values to quantify the importance of features. In the model selection phase, the constructed XGBoost model performs better than other algorithms while achieving an area under the curve (AUC) of 0.725 on the test set during the evaluation phase, resulting in a specificity of 62.9% and a sensitivity of 68.6%. The model leads to a quite low positive predictive value of 1.5%, but a quite satisfactory negative predictive value of 99.58%. Moreover, the feature importance analysis points to age, infertility, uterine fibroids, anxiety, and allergic rhinitis as the top five most important features for predicting endometriosis. Although these results show the feasibility of using machine learning to improve the diagnosis of endometriosis, more research is required to improve the performance of predictive models for the diagnosis of endometriosis. This state of affairs is in part attributed to the complex nature of the condition and, at the same time, the administrative nature of our features. Should more informative features be used, we could possibly achieve a higher AUC for predicting endometriosis. As a result, we merely perceive the constructed predictive model as a tool to provide auxiliary information in clinical practice.

Keywords: AdaBoost; XGBoost; comorbidities; decision tree; endometriosis; feature importance; logistic regression; machine learning; random forest.

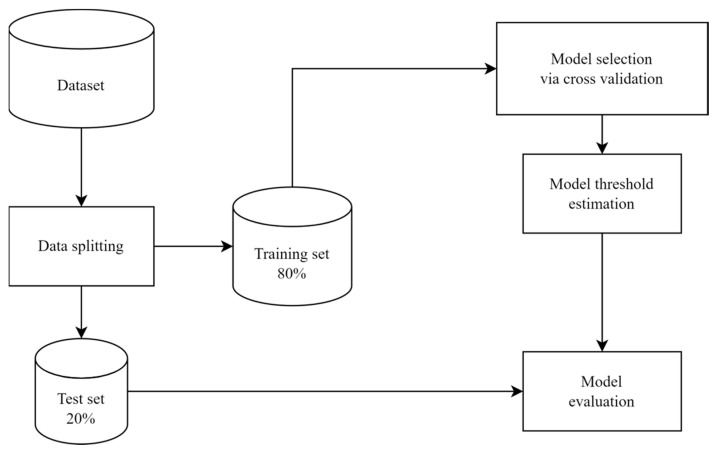

Figure 1

A general view of the machine learning pipeline.

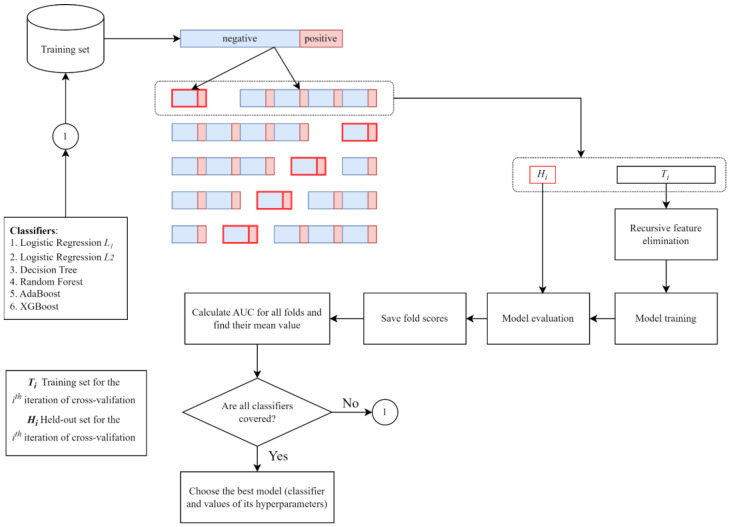

Figure 2

A schematic diagram of the joint model-feature selection.

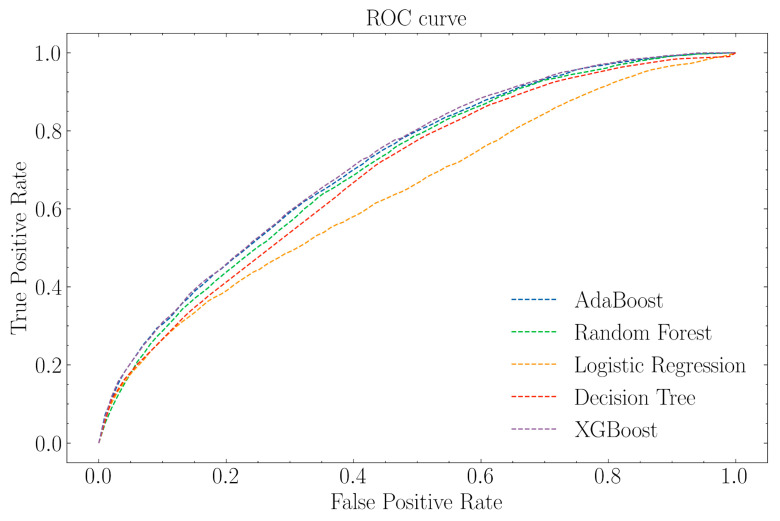

Figure 3

The ROC curves for the best-performing model in each class of algorithm.

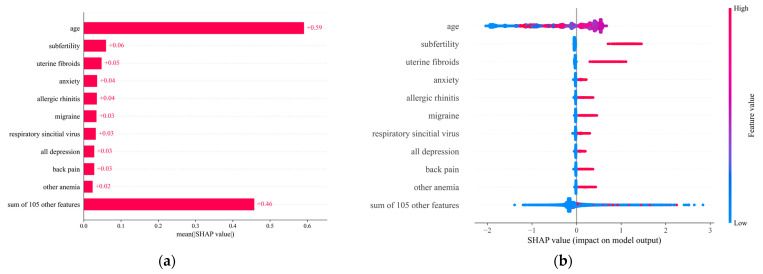

Figure 4

(a) Bar plot of top 10 features according to SHAP analysis. (b) Beeswarm plot of top 10 features according to SHAP analysis.
