. 2023 Nov 29;10(1):124.
doi: 10.1186/s40634-023-00709-6.

Near-Infrared Spectroscopy measurements are reliable for studying patellar bone hemodynamics and affected by venous occlusion, but not by skin compression

Martin J Ophey  1   2   3 , Anne Westerweel  4 , Maxime van Oort  4 , Robert van den Berg  5   6   7 , Gino M M J Kerkhoffs  8   9   10 , Igor J R Tak  5   9   10   11
Affiliations

Near-Infrared Spectroscopy measurements are reliable for studying patellar bone hemodynamics and affected by venous occlusion, but not by skin compression

Martin J Ophey et al. J Exp Orthop. .

Abstract

Purpose: According to the homeostasis model, patellofemoral pain (PFP) results from disturbed homeostasis due to vascular insufficiency in the anterior knee. Near-Infrared Spectroscopy (NIRS) measures relative changes in concentrations (in µmol/cm2) of (de-)oxygenated hemoglobine (HHb and O2Hb). The aims were to: 1) investigate the characteristics of the NIRS signal derived from the patella during experiments affecting hemodynamics in healthy controls, and 2) determine the test-retest reliability of NIRS in positions clinically relevant for PFP patients.

Methods: Two experiments were conducted on 10 healthy controls and analysed using Student's t-test. Reliability (ICC2,1) was evaluated for two activities ('Prolonged Sitting' and 'Stair Descent') in five PFP patients and 15 healthy controls, performed twice within five days.

Results: The NIRS signal (HHb and O2Hb) showed a statistically significant increase (p < .001 - .002) on all optodes (30, 35, 40 mm) during 'Venous Occlusion' (M = 1.0 - 2.0), while it showed no statistically significant change (p = .075 - .61) during 'Skin Compression' (M = -0.9 - 0.9) on the 30 and 35 mm optode. Reliability of NIRS (HHb and O2Hb) ranged from moderate to almost perfect (ICC2,1 = .47 - .95) on the 30 mm optode for 'Prolonged Sitting', and from moderate to substantial (ICC2,1 = .50 - .68) on the 35 mm optode for 'Stair Descent'.

Conclusions: Patella NIRS measurements are affected by venous occlusion, but not by skin compression, and are sufficiently reliable as research application to compare real-time patellar bone hemodynamics. These insights may assist to improve effectiveness of evidence-based treatment strategies for PFP.

Trial registration: ISRCTN Trial Registration under number: 90377123.

Keywords: Near-Infrared Spectroscopy; Patellofemoral pain; Reliability.

PubMed Disclaimer

Conflict of interest statement

None. The authors certify that they have no affiliations with or financial involvement in any organization or entity with a direct financial interest in the subject matter or materials discussed in the article.

Figures

Fig. 1
Fig. 1

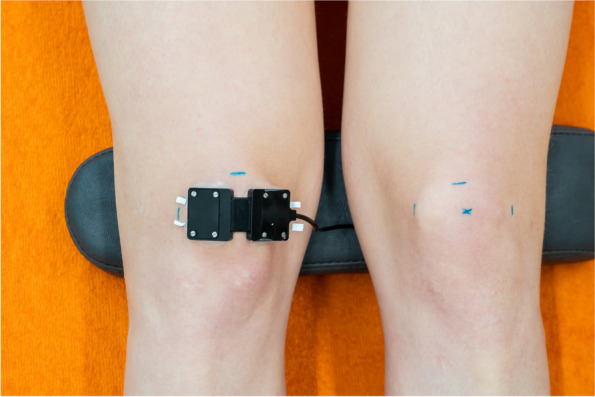

Marks on the skin of the left knee and sensor placement on the right knee
Fig. 2
Fig. 2

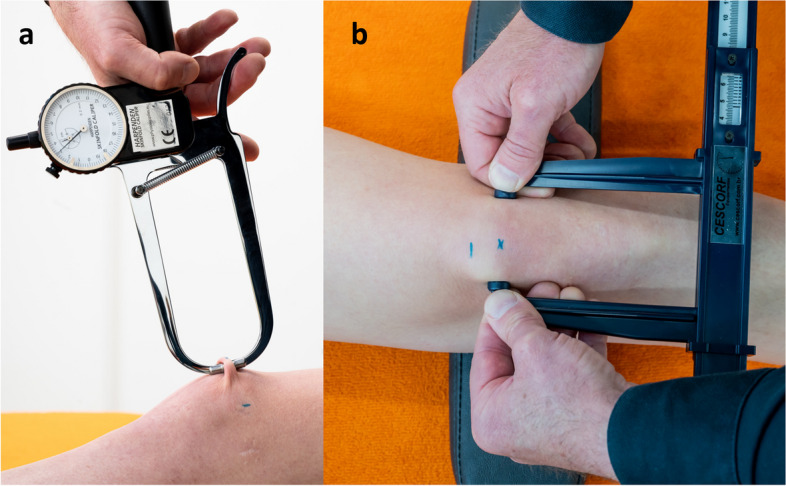

a Skinfold measurement and 2b Patella width measurement
Fig. 3
Fig. 3

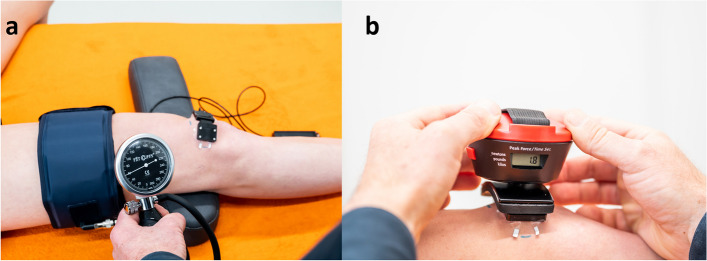

a Experiment 1 ‘Venous Occlusion’ and 3b Experiment 2 ‘Skin Compression’. (Note: Absence of the opaque cloth to visualise the set-up. During measurements the sensor was covered)
Fig. 4
Fig. 4

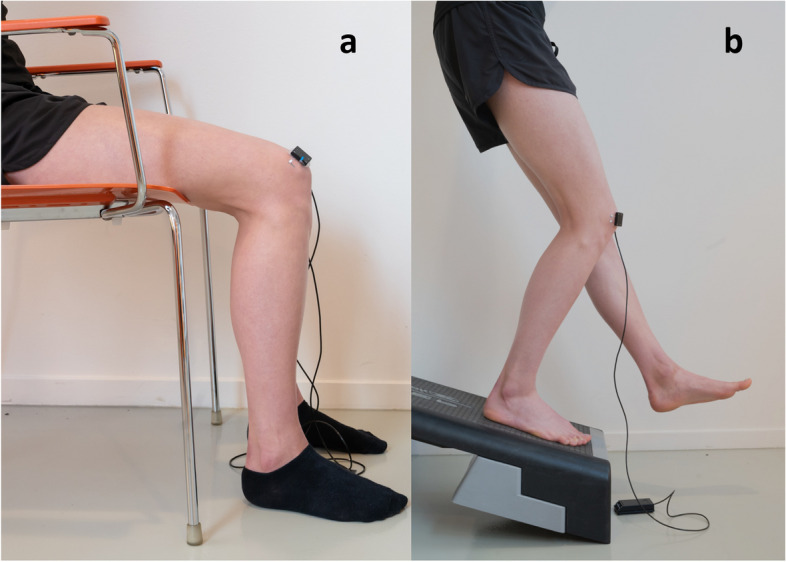

a Activity 1 ‘Prolonged Sitting’ and 4b Activity 2 ‘Stair Descent´. (Note: Absence of the opaque cloth to visualise the set-up, during measurements the sensor was covered)
Fig. 5
Fig. 5

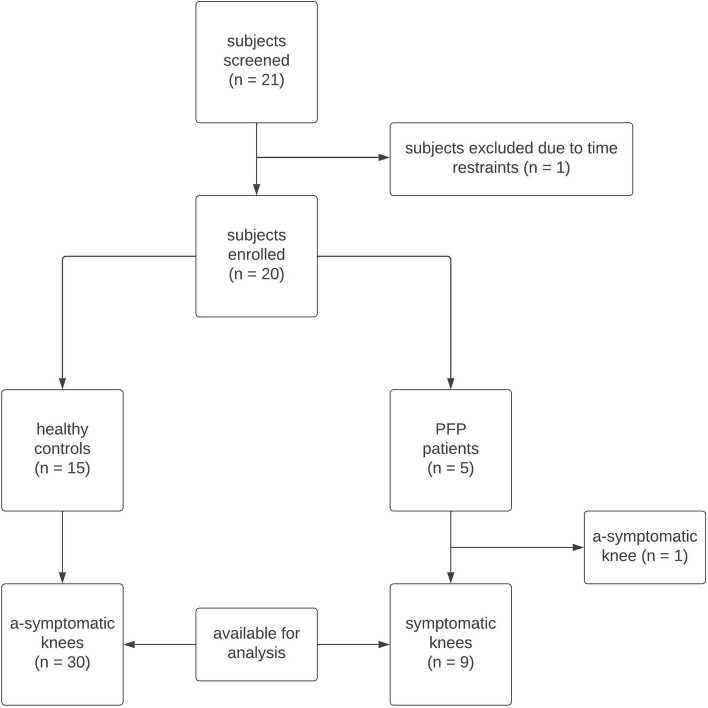

Flowchart of the inclusion process
Fig. 6
Fig. 6

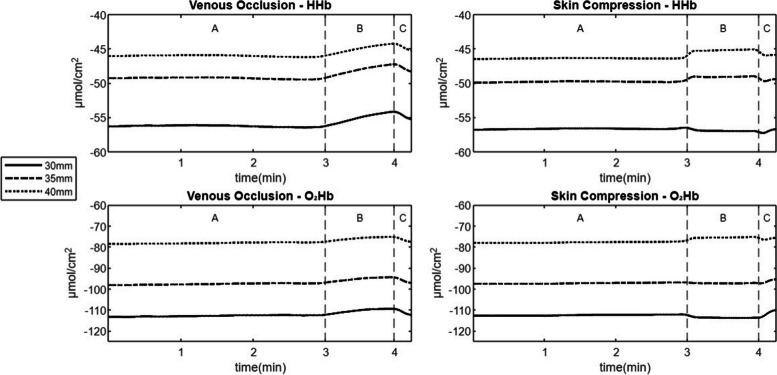

Plotted means of HHb and O2Hb (in µmol/cm.2) of Experiment 1 ‘Venous Occlusion’ and Experiment 2 ‘Skin Compression’. Abbreviations: HHb, deoxygenated hemoglobine; O2Hb, oxygenated hemoglobine for each optode (30, 35, 40 mm); min, minutes; A, baseline (3 min); B, experimental measurement (venous occlusion / skin compression) (1 min); C, recovery time (15 s)
See this image and copyright information in PMC

References

    1. Altunkan Ş, Iliman N, Kayatürk N, Altunkan E. Validation of the Omron M6 (HEM-7001-E) upper-arm blood pressure measuring device according to the International Protocol in adults and obese adults. Blood Press Monit. 2007;12:219–225. - PubMed
    1. Arnoldi CC. Patellar pain. Acta Orthop Scand Suppl. 1991;244:1–29. - PubMed
    1. Artinis Medical Systems . Manual Portalite for Oxysoft 3.0.95 and higher - Version 1610. 2016.
    1. Aziz SM, Khambatta F, Vaithianathan T, et al. A near infrared instrument to monitor relative hemoglobin concentrations of human bone tissue in vitro and in vivo. Rev Sci Instrum. 2010;81:043111. - PubMed
    1. Binzoni T, van de Ville D. Noninvasive probing of the neurovascular system in human bone/bone marrow using near-infrared light. J Innov Opt Health Sci. 2011;04:183–189.
