. 2023 Oct 30;13(22):14614-14626.
doi: 10.1021/acscatal.3c04011. eCollection 2023 Nov 17.

"Activated Borane": A Porous Borane Cluster Polymer as an Efficient Lewis Acid-Based Catalyst

Martin Lamač  1 , Béla Urbán  1 , Michal Horáček  1 , Daniel Bůžek  2 , Lucie Leonová  3 , Aleš Stýskalík  3 , Anna Vykydalová  2 , Karel Škoch  2 , Matouš Kloda  2 , Andrii Mahun  4 , Libor Kobera  4 , Kamil Lang  2 , Michael G S Londesborough  2 , Jan Demel  2
Affiliations

"Activated Borane": A Porous Borane Cluster Polymer as an Efficient Lewis Acid-Based Catalyst

Martin Lamač et al. ACS Catal. .

Abstract

Borane cluster-based porous covalent networks, named activated borane (ActB), were prepared by cothermolysis of decaborane(14) (nido-B10H14) and selected hydrocarbons (toluene, ActB-Tol; cyclohexane, ActB-cyHx; and n-hexane, ActB-nHx) under anaerobic conditions. These amorphous solid powders exhibit different textural and Lewis acid (LA) properties that vary depending on the nature of the constituent organic linker. For ActB-Tol, its LA strength even approaches that of the commonly used molecular LA, B(C6F5)3. Most notably, ActBs can act as heterogeneous LA catalysts in hydrosilylation/deoxygenation reactions with various carbonyl substrates as well as in the gas-phase dehydration of ethanol. These studies reveal the potential of ActBs in catalytic applications, showing (a) the possibility for tuning catalytic reaction outcomes (selectivity) in hydrosilylation/deoxygenation reactions by changing the material's composition and (b) the very high activity toward ethanol dehydration that exceeds the commonly used γ-Al2O3 by achieving a stable conversion of ∼93% with a selectivity for ethylene production of ∼78% during a 17 h continuous period on stream at 240 °C.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Scheme 1

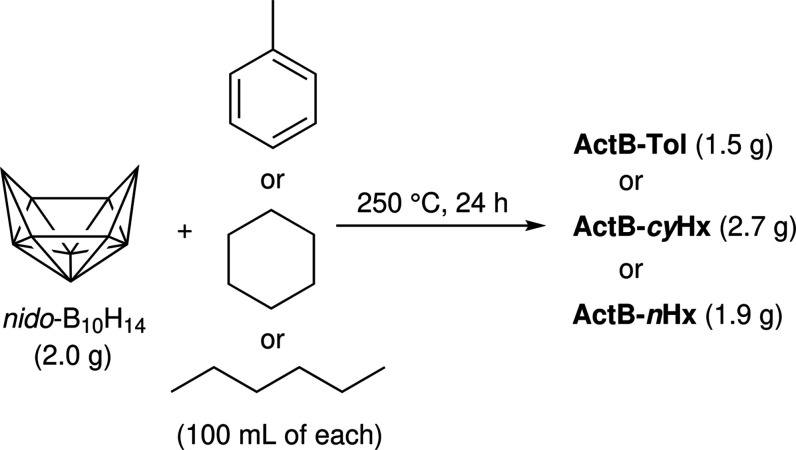

Scheme 1. Synthesis of ActB Materials
Figure 1
Figure 1
SEM images of ActB-Tol (left), ActB-cyHx (middle), and ActB-nHx (right). For additional images, see the SI.
Figure 2
Figure 2
Adsorption isotherms of Ar at 87 K (top) and CO2 at 195 K (bottom) for ActB-Tol, ActB-cyHx, and ActB-nHx.
Figure 3
Figure 3
FTIR (ATR-Si) spectra of ActB-Tol (top), ActB-cyHx (middle), and ActB-nHx (bottom); red lines correspond to samples exposed to air for 1 min.
Figure 4
Figure 4
1H MAS NMR (left column), 13C CP/MAS NMR (middle column), and 11B MAS NMR (right column) spectra of ActB-Tol, ActB-cyHx, and ActB-nHx samples.
Figure 5
Figure 5
31P MAS ssNMR spectra from top: BCF+TEPO adduct, TEPO, ActB-Tol+TEPO, ActB-cyHx+TEPO, and ActB-nHx+TEPO.
Figure 6
Figure 6
11B 3Q/MAS NMR spectra of ActB-Tol+TEPO (a), ActB-cyHx+TEPO (b), and ActB-nHx+TEPO (c). The newly detected signal is highlighted by gray boxes.
Figure 7
Figure 7
TPD curves for ActB-Tol (left), ActB-cyHx (middle), and ActB-nHx (right).
Scheme 2
Scheme 2. Deoxygenation of Benzophenone (1) Performed Using Different ActB Catalysts, Yields Determined by GC (Isolated Yield in Parentheses)
1 mol % B(C6F5)3 (BCF) used as a catalyst (reaction time 2 h). kinetic profiles (bottom) of the deoxygenation of 1 catalyzed by ActBs at 60 or 100 °C. Conversion of 1 determined by GC.
Scheme 3
Scheme 3. Hydrosilylation/deoxygenation of Acetophenone (4): (a) Screening of Different ActB Materials Using 1.5 or 3 equiv of Silane and Toluene as the Solvent; (b) Reaction Temperature Optimization Using ActB-Tol in Toluene; and (c) Variation of Reaction Conditions in THF Solvent. Yields Determined by GC
Scheme 4
Scheme 4. Reactions Involved in the Mechanism of 4-Hydrosilylation/Deoxygenation by ActB-Tol: (a) Deoxygenation of Silyl Ether 5 in the Presence of Silane, (b) without Silane, (c) Attempted Reaction of Styrene (6), (d) Reaction of Alcohol 9 in the Presence of Silane, and (e) without Silane. Conditions: 60 °C, 22 h, Toluene Solvent (1 mmol Substrate, 20 mg of ActB). GC Yields Given in Parentheses
Scheme 5
Scheme 5. Hydrosilylation/Deoxygenation of (a) Benzaldehyde (10), (b) Trans-chalcone (13), (c) Benzil (16), (d) Cyclohexanone (22), and (e) 2-Heptanone (27), using ActB-Tol or ActB-cyHx as the Catalysts at Various Conditions (Silane Stoichiometry, Temperature, Time) as Indicated. All Reactions Performed in Toluene. Yields Determined by GC
Figure 8
Figure 8
Time-dependence of the catalytic activity of ActB-Tol in benzophenone (1) deoxygenation and ActB-cyHx in trans-chalcone (13) 1,4-hydrosilylation under flow conditions (X-Cube, 100 °C, flow rate: 0.1 mL min–1—solid lines—or 0.2 mL min–1—segmented line, concentration of substrates 0.5 mM mL–1).
Figure 9
Figure 9
Ethanol conversion (top) and ethylene yield (bottom) during ethanol dehydration at 170, 190, 210, and 240 °C. Weight hour space velocity (WHSV) was kept for all measurements at 2.2 g g–1 h–1.
Figure 10

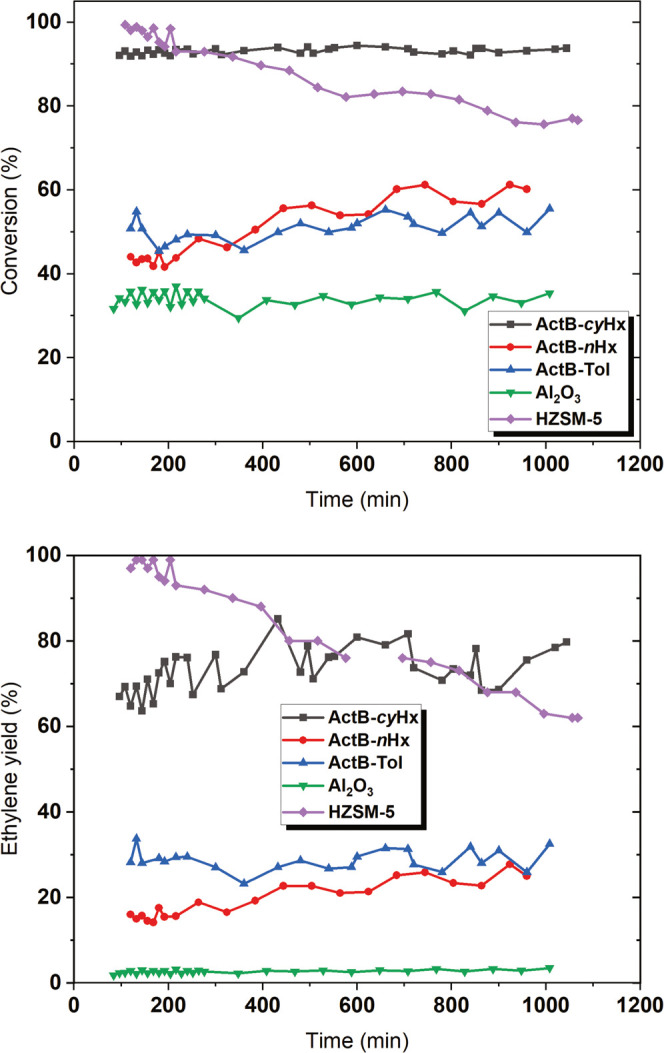

Figure 10
Ethanol conversion (top) and ethylene yield (bottom) during ethanol dehydration at 240 °C overnight (stability test). WHSV was kept at 4.4 g g–1 h–1 except for HZSM-5 due to its high activity. WHSV was set to 17.6 g g–1 h–1; for details, see the SI.
See this image and copyright information in PMC

References

    1. Corma A. Inorganic Solid Acids and Their Use in Acid-Catalyzed Hydrocarbon Reactions. Chem. Rev. 1995, 95, 559–614. 10.1021/cr00035a006. - DOI
    2. Busca G. Acid Catalysts in Industrial Hydrocarbon Chemistry. Chem. Rev. 2007, 107, 5366–5410. 10.1021/cr068042e. - DOI - PubMed
    1. Gao B.; Qiu B.; Zheng M.; Liu Z.; Lu W.-D.; Wang Q.; Xu J.; Deng F.; Lu A.-H. Dynamic Self-Dispersion of Aggregated Boron Clusters into Stable Oligomeric Boron Species on MFI Zeolite Nanosheets under Oxidative Dehydrogenation of Propane. ACS Catal. 2022, 12, 7368–7376. 10.1021/acscatal.2c01622. - DOI
    2. Qiu B.; Lu W.-D.; Gao X.-Q.; Sheng J.; Yan B.; Ji M.; Lu A.-H. Borosilicate zeolite enriched in defect boron sites boosting the low-temperature oxidative dehydrogenation of propane. J. Catal. 2022, 408, 133–141. 10.1016/j.jcat.2022.02.017. - DOI
    1. Altvater N. R.; Dorn R. W.; Cendejas M. C.; McDermott W. P.; Thomas B.; Rossini A. J.; Hermans I. B-MWW Zeolite: The Case Against Single-Site Catalysis. Angew. Chem., Int. Ed. 2020, 59, 6546–6550. 10.1002/anie.201914696. - DOI - PMC - PubMed
    1. Cendejas M. C.; Dorn R. W.; McDermott W. P.; Lebrón-Rodríguez E. A.; Mark L. O.; Rossini A. J.; Hermans I. Controlled Grafting Synthesis of Silica-Supported Boron for Oxidative Dehydrogenation Catalysis. J. Phys. Chem. C 2021, 125, 12636–12649. 10.1021/acs.jpcc.1c01899. - DOI
    1. de Farias A. M. D.; Esteves A. M. L.; Ziarelli F.; Caldarelli S.; Fraga M. A.; Appel L. G. Boria modified alumina probed by methanol dehydration and IR spectroscopy. Appl. Surf. Sci. 2004, 227, 132–138. 10.1016/j.apsusc.2003.11.052. - DOI
    2. Chaichana E.; Boonsinvarothai N.; Chitpong N.; Jongsomjit B. Catalytic dehydration of ethanol to ethylene and diethyl ether over alumina catalysts containing different phases with boron modification. J. Porous Mater. 2019, 26, 599–610. 10.1007/s10934-018-0663-7. - DOI
    3. Delmastro A.; Gozzelino G.; Mazza D.; Vallino M.; Busca G.; Lorenzelli V. Characterization of microporous amorphous alumina–boria. J. Chem. Soc., Faraday Trans. 1992, 88, 2065–2070. 10.1039/FT9928802065. - DOI
