Clinical prediction models and the multiverse of madness

Abstract

Background: Each year, thousands of clinical prediction models are developed to make predictions (e.g. estimated risk) to inform individual diagnosis and prognosis in healthcare. However, most are not reliable for use in clinical practice.

Main body: We discuss how the creation of a prediction model (e.g. using regression or machine learning methods) is dependent on the sample and size of data used to develop it-were a different sample of the same size used from the same overarching population, the developed model could be very different even when the same model development methods are used. In other words, for each model created, there exists a multiverse of other potential models for that sample size and, crucially, an individual's predicted value (e.g. estimated risk) may vary greatly across this multiverse. The more an individual's prediction varies across the multiverse, the greater the instability. We show how small development datasets lead to more different models in the multiverse, often with vastly unstable individual predictions, and explain how this can be exposed by using bootstrapping and presenting instability plots. We recommend healthcare researchers seek to use large model development datasets to reduce instability concerns. This is especially important to ensure reliability across subgroups and improve model fairness in practice.

Conclusions: Instability is concerning as an individual's predicted value is used to guide their counselling, resource prioritisation, and clinical decision making. If different samples lead to different models with very different predictions for the same individual, then this should cast doubt into using a particular model for that individual. Therefore, visualising, quantifying and reporting the instability in individual-level predictions is essential when proposing a new model.

Keywords: Bootstrapping; Clinical prediction model; Instability; Mean absolute prediction error (MAPE); Risk prediction; Variance.

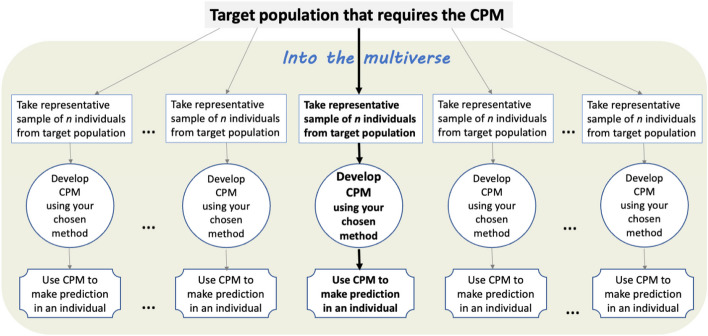

Fig. 1

Depiction of the multiverse of clinical prediction models (CPMs) for a chosen target population. Each CPM is developed using the same model development method but from a different sample of size n from the target population of interest. After development, the CPM is used to make subsequent predictions for individuals. Bold arrows indicate the route that was actually taken, whilst grey arrows represent other hypothetical routes that would have been taken had a different dataset of size n been sampled

Fig. 2

Prediction instability plot for a logistic regression model (with a lasso penalty) considering 8 predictors fitted in a the full sample of 40,830 participants (2851 deaths) and b a sub-sample of 500 participants (35 deaths). The solid diagonal line indicates perfect agreement between the predictions from the developed model and predictions in the bootstrap model. The vertical spread of points indicates the instability in the multiverse, reflecting differences in an individual’s prediction from the developed model (our universe) and their prediction in other hypothetical models (other universes). The dashed lines denote the 2.5th and 97.5th percentiles of the distribution

Fig. 3

Classification instability plot for logistic regression models with a lasso penalty considering 8 predictors and a risk threshold of 0.1

Fig. 4

Calibration instability plot for a logistic regression model (with a lasso penalty) considering 8 predictors fitted in a the full sample of 40,830 participants (2851 deaths) and b a sub-sample of 500 participants (35 deaths). The solid diagonal line indicates ideal calibration. The dashed line indicates the calibration curve of the original model in the original sample. Others are the calibration curves of 200 bootstrap models applied in the original sample
