Inter-device agreement of sacral subepidermal oedema measurement in healthy adults during prolonged 60° head of bed elevation

Abstract

Aim: To investigate the level of agreement between the SEM 200 and Provisio® subepidermal moisture sacral delta measurements, which may indicate increased pressure injury risk, in healthy adults during 120 min of prolonged 60° head of bed elevation. This position, which requires the elevation of the patient's upper body at a 60° angle above the horizontal plane for an extended period, is used by clinicians to prevent or manage a patient's medical or surgical conditions.

Design: This prospective exploratory study recruited 20 healthy adults during October 2021 and collected sacral subepidermal moisture delta measurements using the SEM 200 and Provisio® devices.

Methods: Delta measurements were taken at 20-min intervals over 120 min resulting in seven data collection timepoints. Descriptive statistics and a Bland Altman plot analysis were conducted.

Results: A total of 280 sacral subepidermal moisture delta measurements were gathered or 140 per device. There were good levels of agreement between the two devices at baseline (T0) [mean 0.025; SD 0.137] and following 60- (T3) [mean 0.025; SD 0.111], 80- (T4) [mean -0.01; SD 0.177] and 100 min (T5) [mean 0.01; SD 0.129] of prolonged 60° head of bed elevation. Head of bed elevations can increase a patient's risk of sacral pressure injuries. In some countries, nurses have access to the SEM 200 and/or the Provisio® device, so our findings may increase nurses' confidence in the interchangeability of the device measurements, although further research is needed to confirm this. The SEM 200 and Provisio® subepidermal moisture scanners show promise in gathering similar objective pressure injury risk data which could prompt clinicians to implement prevention strategies.

Impact: Current pressure injury risk assessment is largely subjective in nature. This quantitative study on healthy human sacral tissue found a good level of agreement in the SEM 200 and Provisio® subepidermal moisture scanners, which may increase nurses' confidence in the interchangeability of the devices in clinical practice.

Keywords: pressure injuries; pressure injury risk; pressure ulcers; sub-epidermal Oedema; wounds.

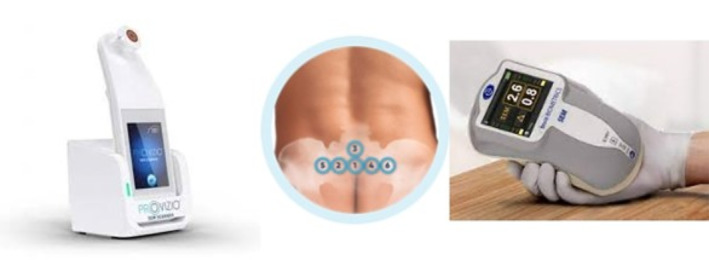

FIGURE 1

Provisio® SEM scanner, six sacral SEM absolute values, and SEM 200. Images used with permission from Bruin Biometrics 2022.

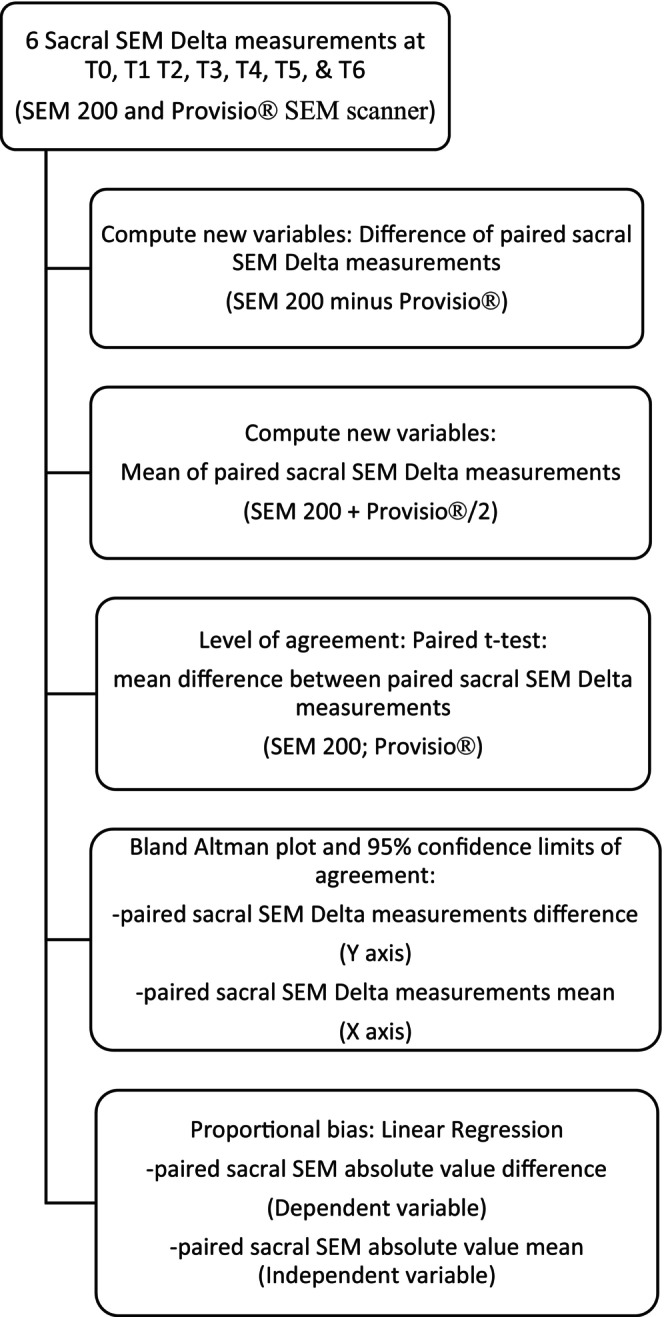

FIGURE 2

Bland Altman data analysis process: paired sacral SEM delta measurements.

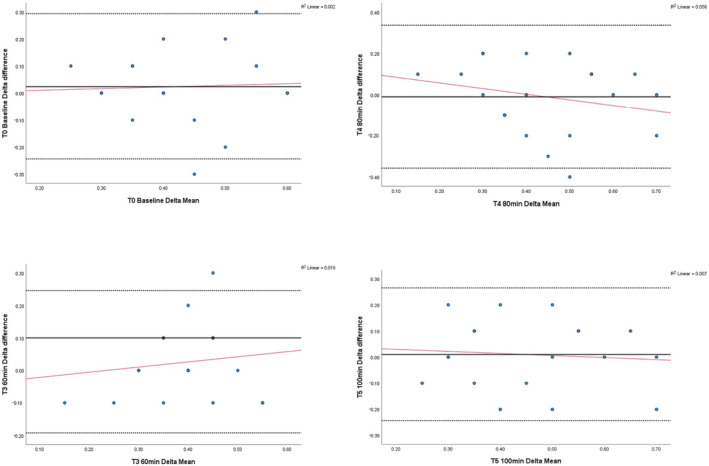

FIGURE 3

T0, T3, T4, T5 Bland Altman plots: Sacral SEM delta levels of agreement and proportional bias (paired SEM 200 and Provisio®) during 120 min of 60° HOBE (n = 20).
