Regulation of the Activity of the Dual Leucine Zipper Kinase by Distinct Mechanisms

Abstract

The dual leucine zipper kinase (DLK) alias mitogen-activated protein 3 kinase 12 (MAP3K12) has gained much attention in recent years. DLK belongs to the mixed lineage kinases, characterized by homology to serine/threonine and tyrosine kinase, but exerts serine/threonine kinase activity. DLK has been implicated in many diseases, including several neurodegenerative diseases, glaucoma, and diabetes mellitus. As a MAP3K, it is generally assumed that DLK becomes phosphorylated and activated by upstream signals and phosphorylates and activates itself, the downstream serine/threonine MAP2K, and, ultimately, MAPK. In addition, other mechanisms such as protein-protein interactions, proteasomal degradation, dephosphorylation by various phosphatases, palmitoylation, and subcellular localization have been shown to be involved in the regulation of DLK activity or its fine-tuning. In the present review, the diverse mechanisms regulating DLK activity will be summarized to provide better insights into DLK action and, possibly, new targets to modulate DLK function.

Keywords: dual leucine zipper kinase; palmitoylation; phosphorylation; proteasomal degradation; protein–protein interaction.

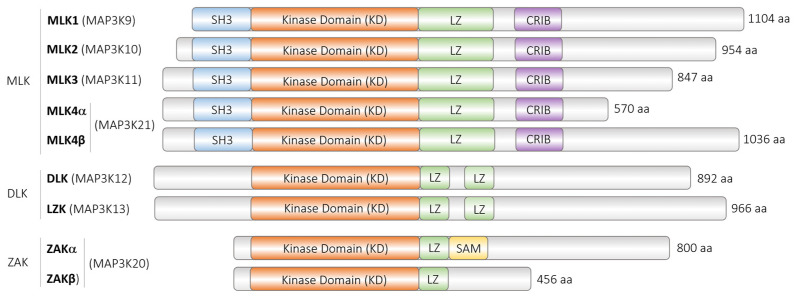

Figure 1

Mixed-lineage kinase (MLK) subfamilies. Schematic depiction of the functional domains of different MLK family members (not to scale). MLK (mixed-lineage kinase), DLK (dual leucine zipper kinase), LZK (leucine zipper kinase), ZAK (sterile alpha motif and leucine zipper containing kinase AZK), SH3 (Src homology 3 domain), LZ (Leucine Zipper), CRIB (Cdc42/Rac interactive-binding), and SAM (sterile-α motif). NCBI RefSeq accession numbers (if applicable): MLK1/MAP3K9 (NP_001271159.1, Isoform 2), MLK2/MAP3K10 (NP_002437.2), MLK3/MAP3K11 (NP_002410.1), MLK 4/MAP3K21 (CAC84639.1, Isoform 1/α; NP_115811.2, Isoform 2/β), DLK/MAP3K12 (NP_001180440.1, Isoform 1), LZK/MAP3K13 (NP_004712.1, Isoform 1), and ZAK/MAP3K20 (NP_057737.2, Isoform 1/α; NP_598407.1, Isoform 2/β).

Figure 2

The human MAP3K12 gene spans 21.871 nucleotides (nt) and is located on the complementary strand of chromosome 12, GRCh38.p14 Primary Assembly. It is flanked by the gene encoding for the TARBP2 subunit of RISC loading complex (TARBP2) and the poly(rC) binding protein 2 (PCBP2) gene, both located on the positive strand in opposite directions relative to the DLK gene. The transcripts of the human DLK Isoforms 1 (NM_001193511.2) and 2 (NM_006301.4) differ in a 99 nt stretch absent in Isoform 2, resulting in a slightly shorter protein of 859 amino acids (aa) and a calculated molecular weight of 93.2 kDa instead of 892 aa and 96.3 kDa. Data were retrieved from NCBI (https://www.ncbi.nlm.nih.gov/gene/7786, 30 June 2023, 14:33). The figure created using BioRender.

Figure 3

Examples for regulation of DLK activity. (A) Under basal unstimulated conditions, unphosphorylated DLK protein abundance is regulated by the E3 ubiquitin ligase PHR1 and the deubiquitinase USP9X. (B) Signals activating cAMP and PKA phosphorylate dimerized DLK on Ser-302, leading to the activation of MKK4/7 and JNK. JNK, in turn, phosphorylates DLK on Thr-43 and Ser-535, preventing the interaction with PHR1, thereby stabilizing DLK. Other signals activating MAP4K phosphorylate DLK on Thr-43 and stabilize DLK. (C) Upon an increase in the intracellular calcium concentration, calcineurin interacts with monomeric or dimeric DLK and dephosphorylates the kinase. The inhibition of calcineurin by ROS prevents the dephosphorylation of DLK, whereas the interaction of immunophilin-bound CsA or FK506 displaces DLK from the calcineurin interaction site, and DLK dimerizes and autophosphorylates in trans. For further information, please see the text.

Figure 4

DLK amino acid residues are modulated at the post-translational level. Isoform 1 of human DLK is depicted; T—threonin; C—cystein; K—lysin; S—serin; orange dots—phosphorylation and, possibly, dephosphorylation sites; violet dot—palmitoylation site; blue dot—ubiquitylation and SUMOylation site. KD—kinase domain; AL—activation loop within the kinase domain; LZ—leucine zipper for homodimerization; NLS—bipartite nuclear localization site; NES—nuclear export site; K185—ATP binding site; L—leucine; x—any amino acid; V—valine; P—proline; LxVP—interaction site with calcineurin. For further information, please see the text.
