. 2024 Feb 10;24(4):1170.
doi: 10.3390/s24041170.

Deeply Implanted Conformal Antenna for Real-Time Bio-Telemetry Applications

Ladislau Matekovits  1   2   3 , Farzad Mir  4 , Gianluca Dassano  1 , Ildiko Peter  5
Affiliations

Deeply Implanted Conformal Antenna for Real-Time Bio-Telemetry Applications

Ladislau Matekovits et al. Sensors (Basel). .

Abstract

The design and experimental verification of a deeply implanted conformal printed antenna is presented. The hip implant acts as the ground plane for a coaxial-cable-fed trapezoidal radiator designed to transmit biological signals collected within the body by proper biosensors. The arrangement, consisting of a metallic (or equivalent) hip implant, bio-compatible gypsum-based dielectric, and conformal radiator, was tested when the hosting 3D-printed plastic bone was immersed in tissue-like liquid contained in a plastic bucket. The dimensions of the set-up are similar to a human leg. Matching and radiation characteristics are presented in the industrial, scientific, and medical (ISM) frequency band (2.4-2.5 GHz), showing the feasibility of the proposed arrangement.

Keywords: bio-electromagnetic; bio-telemetry; conformal antennas; implanted antenna; in-body microstrip antenna.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

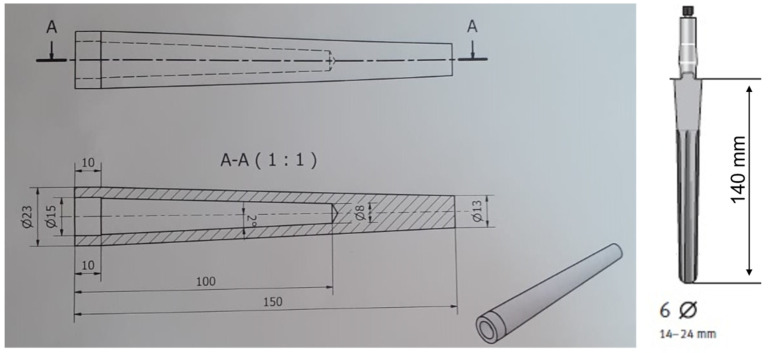

Technical drawing of the geometry of the implant (left); geometry of a commercial implant [38] (right).
Figure 2
Figure 2

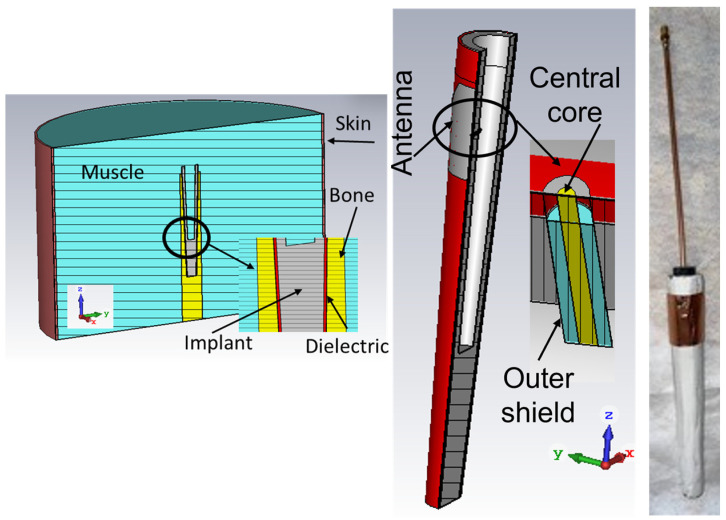

CAD model of the implant immersed in the body implemented in CST (left), antenna detail (center), and implant with dielectric layer and antenna artwork (right).
Figure 3
Figure 3

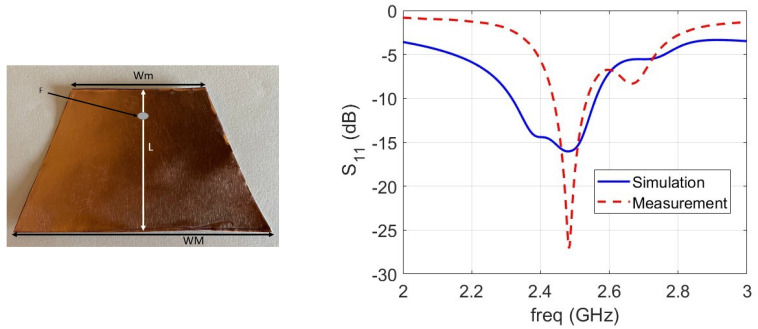

Leading dimensions of the antenna geometry (left). Comparison between the matching S11 of the antenna: simulation (continuous line) vs. measurement (dashed line) (right).
Figure 4
Figure 4

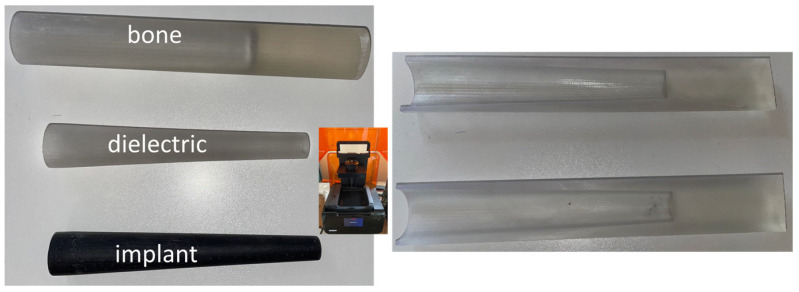

Photograph of the implant, dielectric layer, and bone geometry printed by 3D technology. Inset: 3D printer device (left) and the 3D-printed die. The two parts are identical (right).
Figure 5
Figure 5

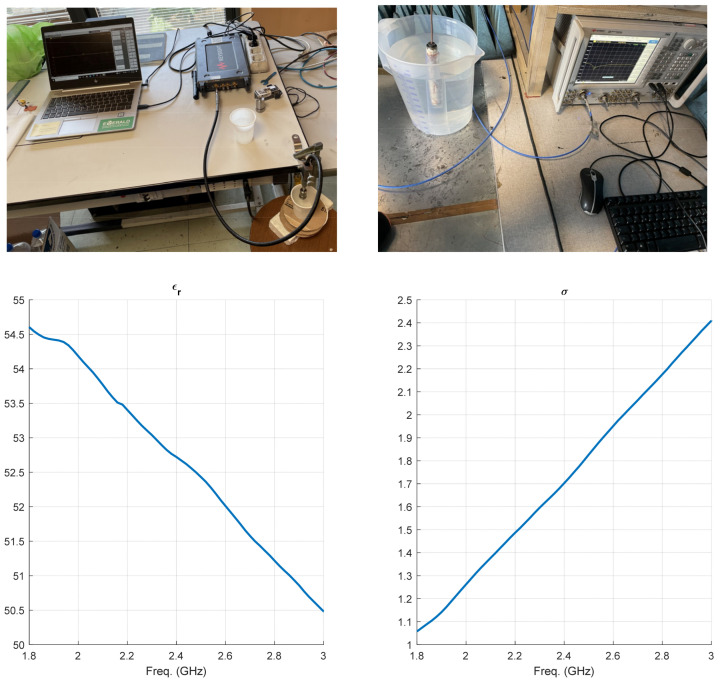

System to measure the dielectric constant of the tissue-like liquid (top left), and the quasi-in vitro configuration (top right). Measured relative dielectric constant (bottom left) and conductivity S/m (bottom right).
Figure 6
Figure 6

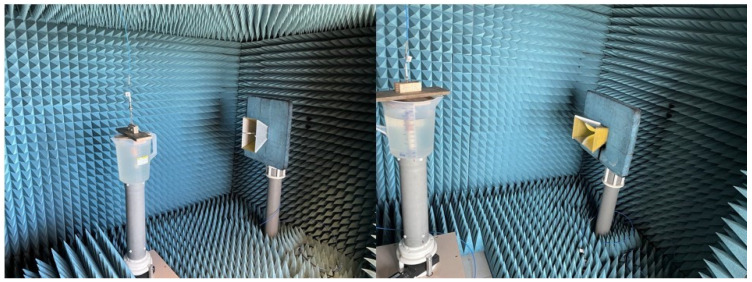

RP measurement set-up for the embedded antenna: cross-polarization (left) and co-polarization (right) components.
Figure 7
Figure 7

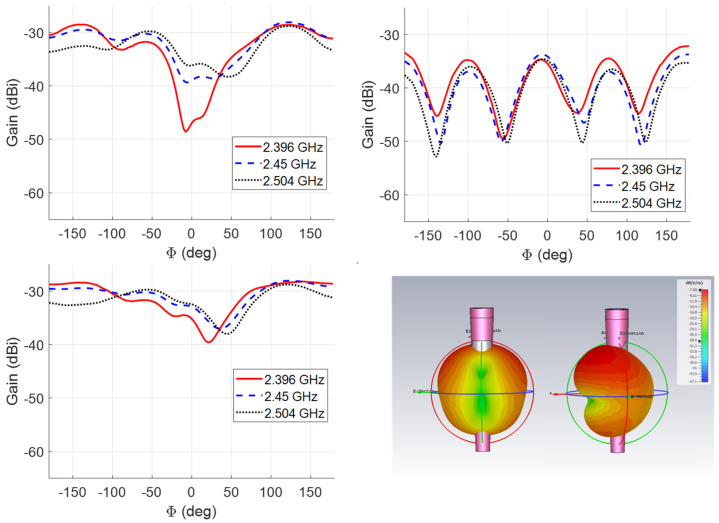

H-field RP: co-polarization (top left), cross-polarization (top right), total field (bottom left), and simulated 3D pattern (bottom right).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Iqbal A., Al-Hasan M., Mabrouk I.B., Basir A., Nedil M., Yoo H. Biotelemetry and Wireless Powering of Biomedical Implants Using a Rectifier Integrated Self-Diplexing Implantable Antenna. IEEE Trans. Microw. Theory Tech. 2021;69:3438–3451. doi: 10.1109/TMTT.2021.3065560. - DOI
    1. Agarwal K., Jegadeesan R., Guo Y.X., Thakor N.V. Wireless Power Transfer Strategies for Implantable Bioelectronics. IEEE Rev. Biomed. Eng. 2017;10:136–161. doi: 10.1109/RBME.2017.2683520. - DOI - PubMed
    1. Nikolayev D., Skrivervik A.K., Ho J.S., Zhadobov M., Sauleau R. Reconfigurable Dual-Band Capsule-Conformal Antenna Array for In-Body Bioelectronics. IEEE Trans. Antennas Propag. 2022;70:3749–3761. doi: 10.1109/TAP.2021.3138264. - DOI
    1. Srivastava A., Das D., Vignesh M.S., Bharadwaj K., Dewan S., Baghini M.S. Bio-telemetry and bio-instrumentation technologies for healthcare monitoring systems; Proceedings of the 2016 IEEE Region 10 Humanitarian Technology Conference (R10-HTC); Agra, India. 21–23 December 2016; pp. 1–6. - DOI
    1. Kiourti A., Abbosh A.M., Athanasiou M., Björninen T., Eid A., Furse C., Ito K., Lazzi G., Manoufali M., Pastorino M., et al. Next-Generation Healthcare: Enabling Technologies for Emerging Bioelectromagnetics Applications. IEEE Open J. Antennas Propag. 2022;3:363–390. doi: 10.1109/OJAP.2022.3162110. - DOI
