Simulation of Full HIV Cluster Networks in a Nationally Representative Model Indicates Intervention Opportunities

Abstract

Background: Clusters of rapid HIV transmission in the United States are increasingly recognized through analysis of HIV molecular sequence data reported to the National HIV Surveillance System. Understanding the full extent of cluster networks is important to assess intervention opportunities. However, full cluster networks include undiagnosed and other infections that cannot be systematically observed in real life.

Methods: We replicated HIV molecular cluster networks during 2015-2017 in the United States using a stochastic dynamic network simulation model of sexual transmission of HIV. Clusters were defined at the 0.5% genetic distance threshold. Ongoing priority clusters had growth of ≥3 diagnoses/year in multiple years; new priority clusters first had ≥3 diagnoses/year in 2017. We assessed the full extent, composition, and transmission rates of new and ongoing priority clusters.

Results: Full clusters were 3-9 times larger than detected clusters, with median detected cluster sizes in new and ongoing priority clusters of 4 (range 3-9) and 11 (range 3-33), respectively, corresponding to full cluster sizes with a median of 14 (3-74) and 94 (7-318), respectively. A median of 36.3% (range 11.1%-72.6%) of infections in the full new priority clusters were undiagnosed. HIV transmission rates in these clusters were >4 times the overall rate observed in the entire simulation.

Conclusions: Priority clusters reflect networks with rapid HIV transmission. The substantially larger full extent of these clusters, high proportion of undiagnosed infections, and high transmission rates indicate opportunities for public health intervention and impact.

Figure 1.

Simulated proportions of detected (diagnosed and sequenced) HIV infections by time since HIV infection and cluster status at time of cluster detection (12/31/2017), among simulated persons with HIV infection diagnosed during 2015–2017, by cluster status defined at 0.5% genetic distance threshold.

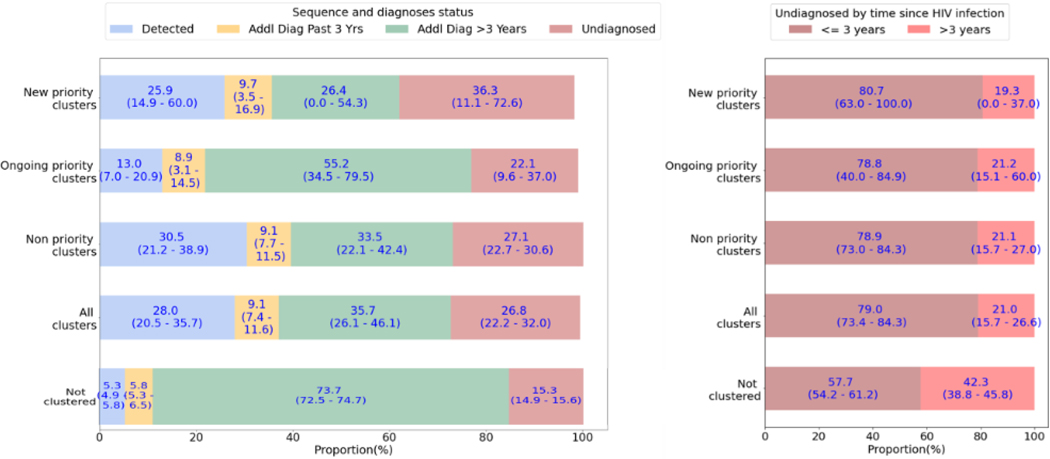

FIGURE 2:

A) Median proportion and range of infections in full clusters by diagnosis and sequencing status, among clusters defined at 0.5% genetic distance threshold; B) Median proportion and range of undiagnosed infections in full clusters by time since HIV infection as of the last time step of the model simulation (December 2017)

FIGURE 3:

Median and range of transmission rates in molecular detected and corresponding full clusters by cluster type, as generated in the simulation model with clusters defined at the 0.5% genetic distance threshold.
