From CNN to Transformer: A Review of Medical Image Segmentation Models

Wenjian Yao  1 , Jiajun Bai  1 , Wei Liao  2 , Yuheng Chen  1 , Mengjuan Liu  3 , Yao Xie  4   5
Affiliations
Review

From CNN to Transformer: A Review of Medical Image Segmentation Models

Wenjian Yao et al. J Imaging Inform Med. 2024 Aug.

Abstract

Medical image segmentation is an important step in medical image analysis, especially as a crucial prerequisite for efficient disease diagnosis and treatment. The use of deep learning for image segmentation has become a prevalent trend. The widely adopted approach currently is U-Net and its variants. Moreover, with the remarkable success of pre-trained models in natural language processing tasks, transformer-based models like TransUNet have achieved desirable performance on multiple medical image segmentation datasets. Recently, the Segment Anything Model (SAM) and its variants have also been attempted for medical image segmentation. In this paper, we conduct a survey of the most representative seven medical image segmentation models in recent years. We theoretically analyze the characteristics of these models and quantitatively evaluate their performance on Tuberculosis Chest X-rays, Ovarian Tumors, and Liver Segmentation datasets. Finally, we discuss the main challenges and future trends in medical image segmentation. Our work can assist researchers in the related field to quickly establish medical segmentation models tailored to specific regions.

Keywords: CNN; Deep learning; Medical image segmentation; Transformer; U-Net.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

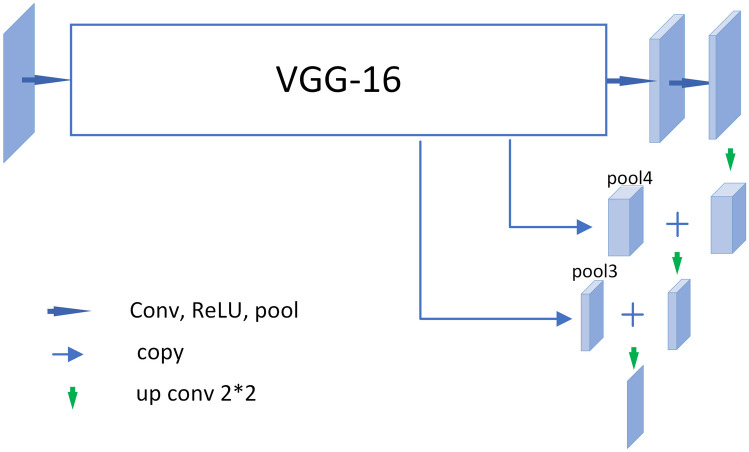

Structure of FCN-8 s [20]
Fig. 2
Fig. 2

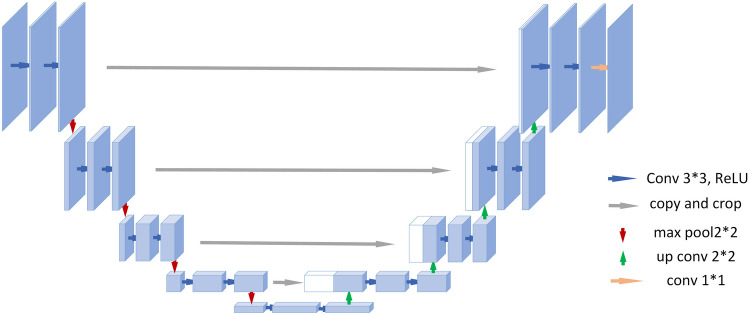

Structure of U-Net [6]
Fig. 3
Fig. 3
Structure of UNet++ [17]
Fig. 4
Fig. 4
Structure of TransUNet [9]
Fig. 5
Fig. 5

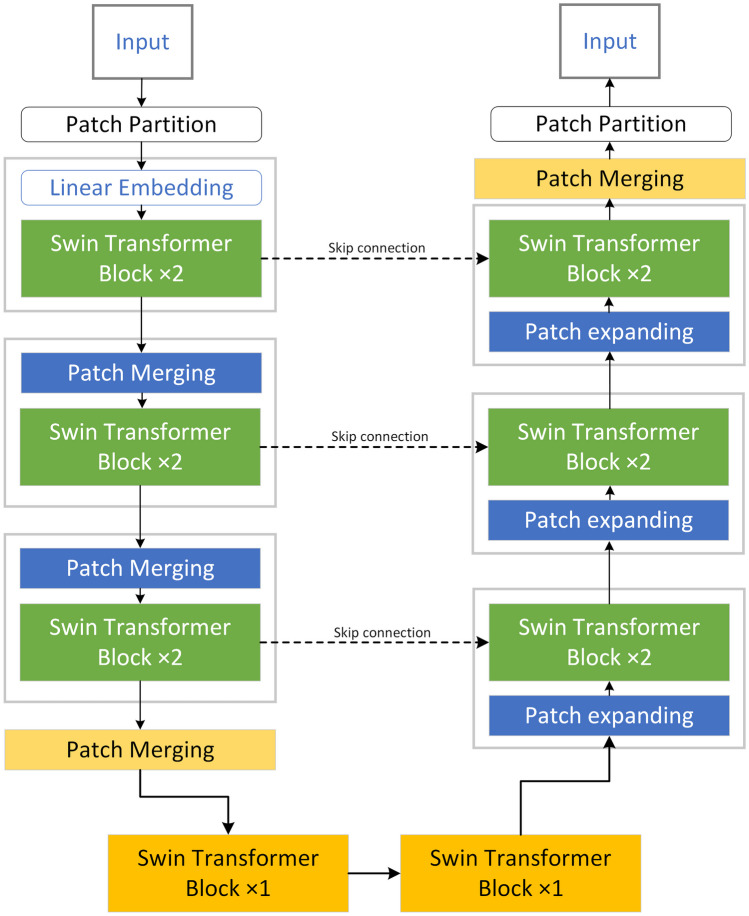

Structure of Swin-Unet [10]
Fig. 6
Fig. 6
Examples of Tuberculosis Chest X-rays (Shenzhen)dataset
Fig. 7
Fig. 7

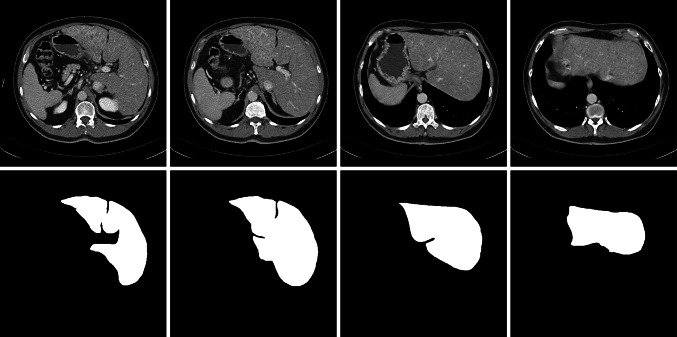

Examples of Clinical Liver CT dataset
Fig. 8
Fig. 8
Examples of Ovarian Tumors dataset
Fig. 9
Fig. 9

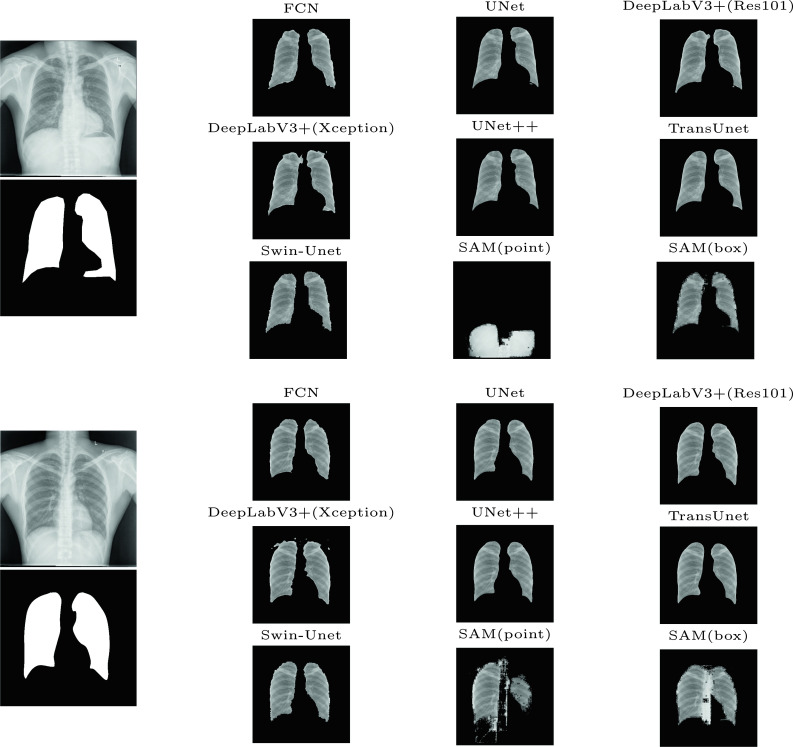

Tuberculosis Chest X-rays (Shenzhen)dataset segmentation results
Fig. 10
Fig. 10
Tuberculosis Chest X-rays (Shenzhen)dataset segmentation coloring results
Fig. 11
Fig. 11

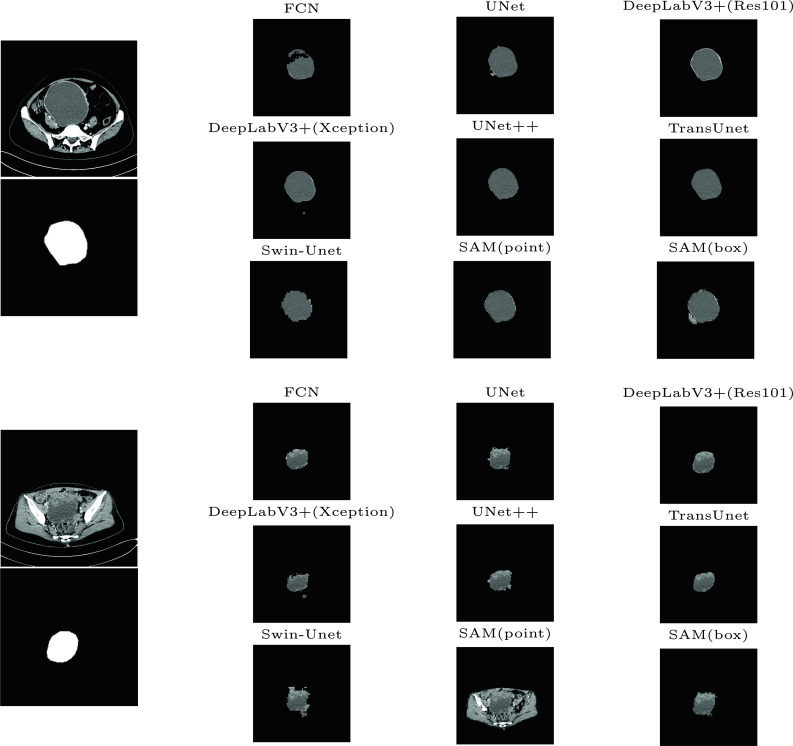

Ovarian Tumors dataset segmentation results
Fig. 12
Fig. 12

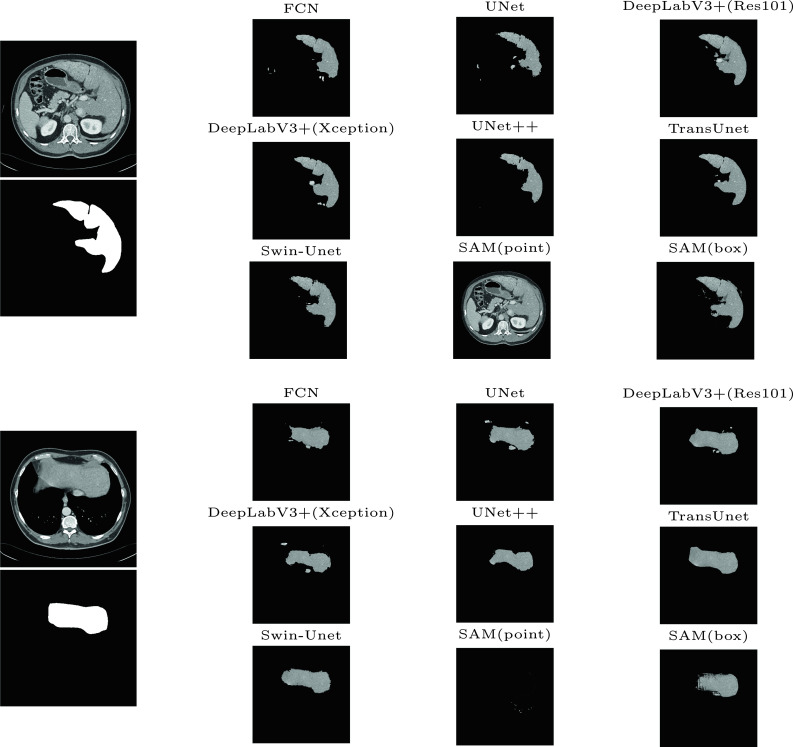

Clinical Liver dataset segmentation results
Fig. 13
Fig. 13

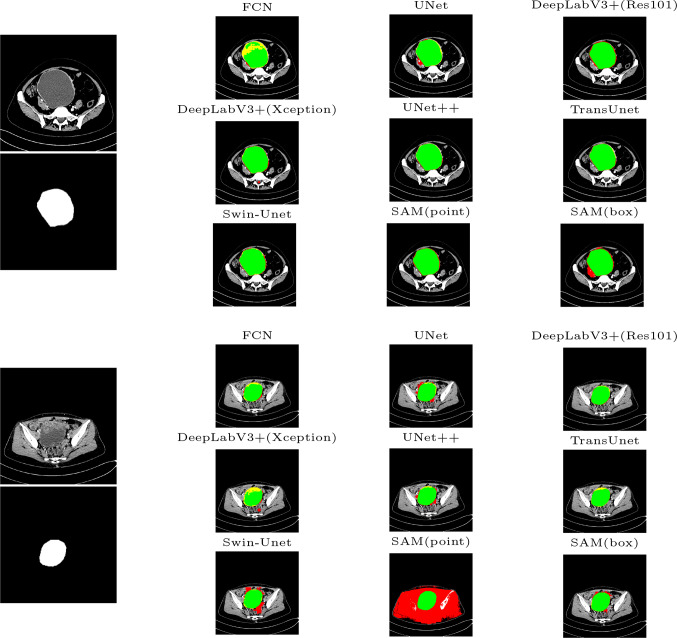

Ovarian Tumors dataset segmentation coloring results
Fig. 14
Fig. 14
Clinical Liver dataset segmentation coloring results
