Purification and use of crude green glycerol from the transesterification of triglycerides in the formulation of an alcohol gel hand sanitizer

Abstract

The aim of this study was to produce an alcohol gel hand sanitizer containing green glycerol. Crude glycerol was purified using chemical and physical treatments. The sanitizer was prepared using 71.100 g of 99.3° GL ethanol, 28.0 g H₂O, 0.5 g of Carboxypolymethylene [Carbopol 940® or Carbomer], 5 drops of triethanolamine (pH 5-7), and glycerol (1.5% w/w). The thermal behavior of the ethanol, carbopol, triethanolamine, glycerol, and alcohol gels were evaluated using Thermogravimetry and Differential Thermal Analysis. The apparent viscosity was obtained using a rotary viscometer. The determination of in vitro spreadability was achieved by an adaptation of the Knorst method. The ethanol content was measured by headspace gas chromatography using a flame ionization detector. The thermal behavior of the gels was influenced by the presence of glycerol, which confirms the possible network interactions formed. The relative densities of the samples were between 0.887 and 0.890 g/cm³. No alteration of the pH of the formulation resulted from the incorporation of glycerol. The apparent viscosities of the alcohol gels were greater than 20,000 cP. No alteration in the in vitro spreadability of the gel alcohol (530.6 mm²) resulted from the addition of glycerol. Hand sanitizer was produced using glycerol from a transesterification reaction. It represents an alternative use for the glycerol being produced in biodiesel processes. The product satisfied the requirements of WHO that preconize a formulation containing 1.45% glycerol as an humectant to protect skin against dryness and dermatitis.

Figure 1

¹H NMR (400 MHz, CDCl₃) of purified glycerol, as described in the literature.

Figure 2

Thermal behavior of Carbopol, 70% ethanol, glycerol and triethanolamine by thermogravimetry analysis (TG, red line), TG derivative in 1st order (DTG, pink line) and differential thermal analysis (DTA, black line).

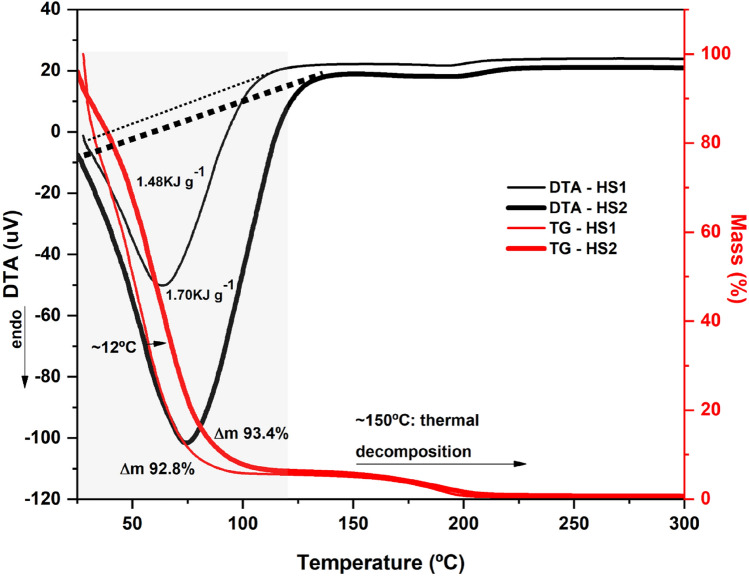

Figure 3

Thermal properties of gel alcohol in the hand sanitizer without (HS1—thin line) and with (HS2—thick line) glycerol, by thermogravimetry (red line) and differential thermal analysis (black line).
