Case Reports
. 2024 Feb 23:15:1331676.
doi: 10.3389/fgene.2024.1331676. eCollection 2024.

A maternally derived complex small supernumerary marker chromosome involving chromosomes 8 and 14: case report and review of the literature

Fatima Ouboukss  1   2 , Zhour El Amrani  1   2 , Hicham Bouchahta  2 , Ilham Ratbi  1 , Aziza Sbiti  2 , Thomas Liehr  3 , Abdelaziz Sefiani  1   2 , Abdelhafid Natiq  1
Affiliations
Case Reports

A maternally derived complex small supernumerary marker chromosome involving chromosomes 8 and 14: case report and review of the literature

Fatima Ouboukss et al. Front Genet. .

Abstract

Introduction: The majority of small supernumerary marker chromosomes (sSMCs) are derived from one single chromosome. Complex sSMCs, on the other hand, consist of genetic material derived from more than one, normally two chromosomes. Complex sSMCs involving chromosomes 8 and 14 are rarely encountered. Case presentation: We present here a 14-month-old boy born from an unrelated couple. At birth, the baby was hypotonic and had a cleft lip and palate, as well as ocular involvement. Throughout the course of development, the baby experienced feeding difficulties, stunted growth, and delayed psychomotor development. Banding together with molecular cytogenetics revealed a balanced maternal translocation t(8;14)(p22.3;q21)mat, leading due to meiotic 3:1 segregation to a partial trisomy of chromosomes 8 and 14 in the affected boy. Discussion/Conclusion: This report highlights the importance of cytogenetics in diagnosis of rare genetic disorders, with impact on genetic counselling of patients and their families. There are three comparable cases in the literature involving both chromosomes 8 and 14, but with different breakpoints; the complex sSMC derived from chromosomes 8 and 14 in this case, characterized as der(14)t(8;14) (p22.3;q21)mat.

Keywords: chromosome 8 and 14; clinical features; complex small supernumerary marker chromosome (sSMC); molecular cytogenetics; partial trisomy.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest. The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Figures

FIGURE 1
FIGURE 1

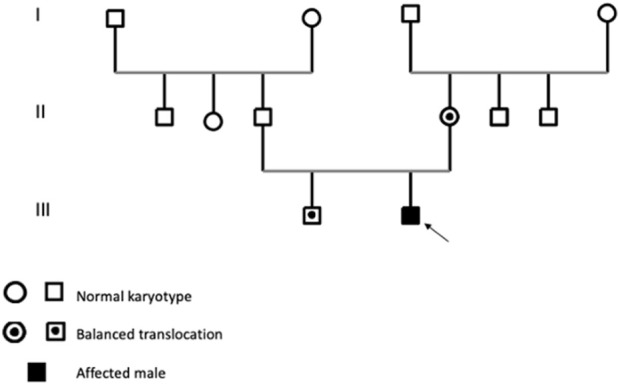

Pedigree balanced translocation in the mother’s family.
FIGURE 2
FIGURE 2
The karyotype of the patient showing sSMC.
FIGURE 3
FIGURE 3
The karyotype of the mother showing the balanced translocation.
FIGURE 4
FIGURE 4
Result of molecular cytogenetics for the patient and his mother. For each (derivative) chromosome left inverted DAPI-banding, and right the FISH-results are shown.
FIGURE 5
FIGURE 5
Ideogram of the sSMC(14) as a der(14)t(8;14)(p22.3;q21).
FIGURE 6
FIGURE 6
The karyotype of brother showing the balanced translocation.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Brooks S. S., Genovese M., Gu H., Duncan C. J., Shanske A., Jenkins E. C. (1998). Normal adaptive function with learning disability in duplication 8p including band p22. Am. J. Med. Genet. 78 (2), 114–117. 10.1002/(sici)1096-8628(19980630)78:2<114::aid-ajmg3>3.3.co;2-6 - DOI - PubMed
    1. Brunetti-Pierri N., Paciorkowski A. R., Ciccone R., Mina E. D., Bonaglia M. C., Borgatti R., et al. (2011). Duplications of FOXG1 in 14q12 are associated with developmental epilepsy, mental retardation, and severe speech impairment. Eur. J. Hum. Genet. 19 (1), 102–107. 10.1038/ejhg.2010.142 - DOI - PMC - PubMed
    1. Dutrillaux B., Couturier J. (1981). La Pratique de L’analyse Chromosomique. Paris: Masson.
    1. Faas B. H., Van D. D. J., Wunderink M. I., Merkx G., Brunner H. G. (2006). Multiple congenital abnormalities in a newborn with two supernumerary marker chromosomes derived from chromosome 14. Genet. Couns. 17, 349–357. - PubMed
    1. Guilherme R. S., Dutra A. R. N., Perez A. B. A., Takeno S. S., Oliveira M. M., Kulikowski L. D., et al. (2013). First Report of a Small Supernumerary der(8;14) Marker Chromosome. Cytogenet Genome Res. 139 (4), 284–288. 10.1159/000348743 - DOI - PubMed
