. 2024 Nov 15;89(22):16195-16202.
doi: 10.1021/acs.joc.4c00089. Epub 2024 Mar 14.

Rapid, Homogenous, B-Alkyl Suzuki-Miyaura Cross-Coupling of Boronic Esters

Matthew J Bock  1 , Scott E Denmark  1
Affiliations

Rapid, Homogenous, B-Alkyl Suzuki-Miyaura Cross-Coupling of Boronic Esters

Matthew J Bock et al. J Org Chem. .

Abstract

A rapid, anhydrous Suzuki-Miyaura cross-coupling of alkylboronic esters with aryl halides is described. Parallel experimentation revealed that the combination of AntPhos, an oxaphosphole ligand, neopentyldiol alkylboronic esters, and potassium trimethylsilanolate (TMSOK) enables successful cross-coupling. In general, reactions proceed in under 1 h with good yields and high linear/branched (l/b) selectivities. Crucially, two literature examples which previously took >20 h to reach completion were accomplished in a fraction of the time with the method described herein. Mechanistic studies revealed that the reaction proceeds through a stereoretentive pathway and identified the boronic ester skeleton as a predominant pathway for deleterious protodehalogenation.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interest.

Figures

Figure 1.

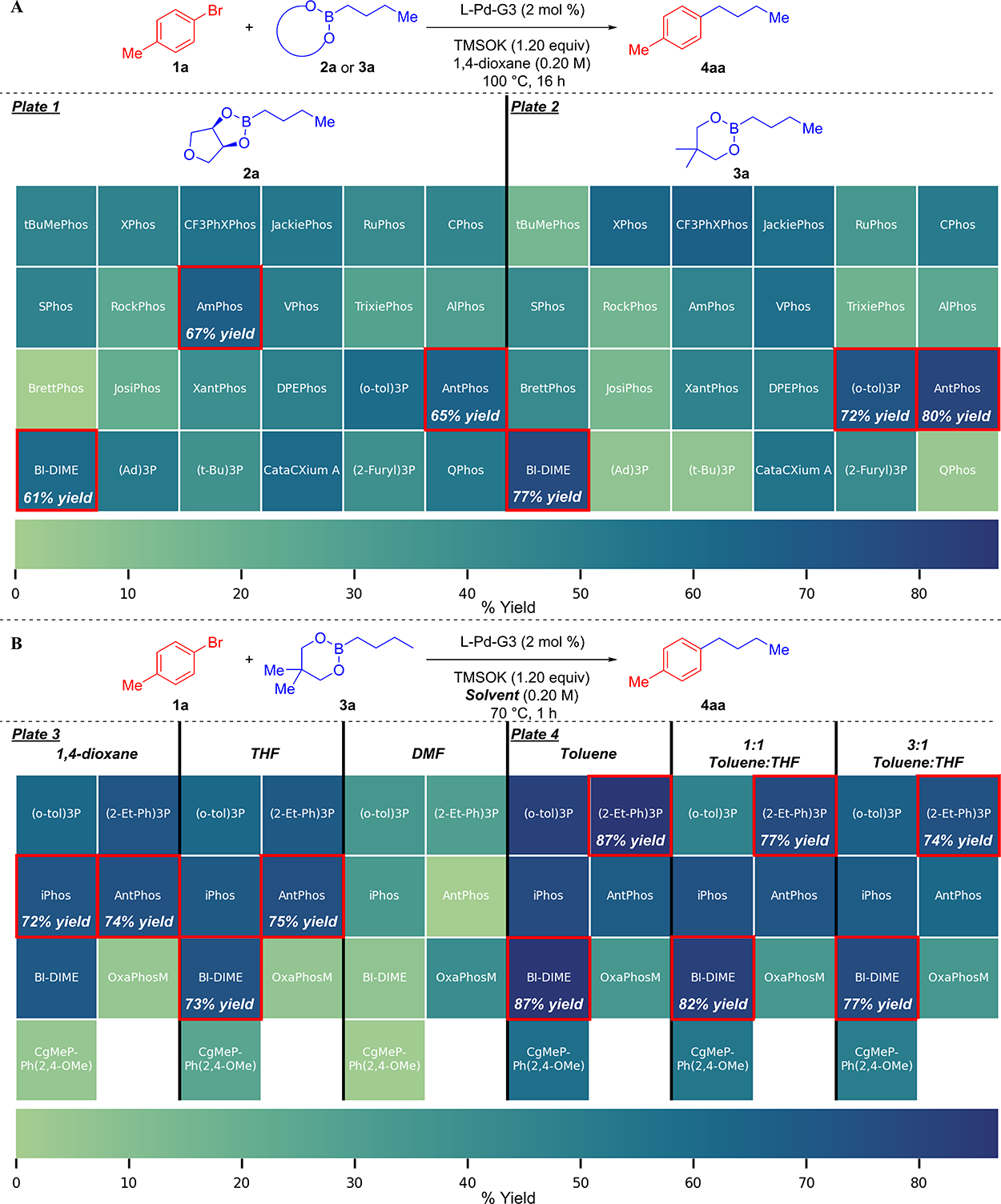

Figure 1.
HTE survey using four, 24 well plates. (A) First-generation screen focusing on ligand space. (B) Second-generation screen focusing on solvents and refined ligand space. Reactions run with 0.20 mmol of aryl halide and 1.20 equiv of boronic ester. Yields were determined by GC-FID analysis using biphenyl as an internal standard.
Figure 2.

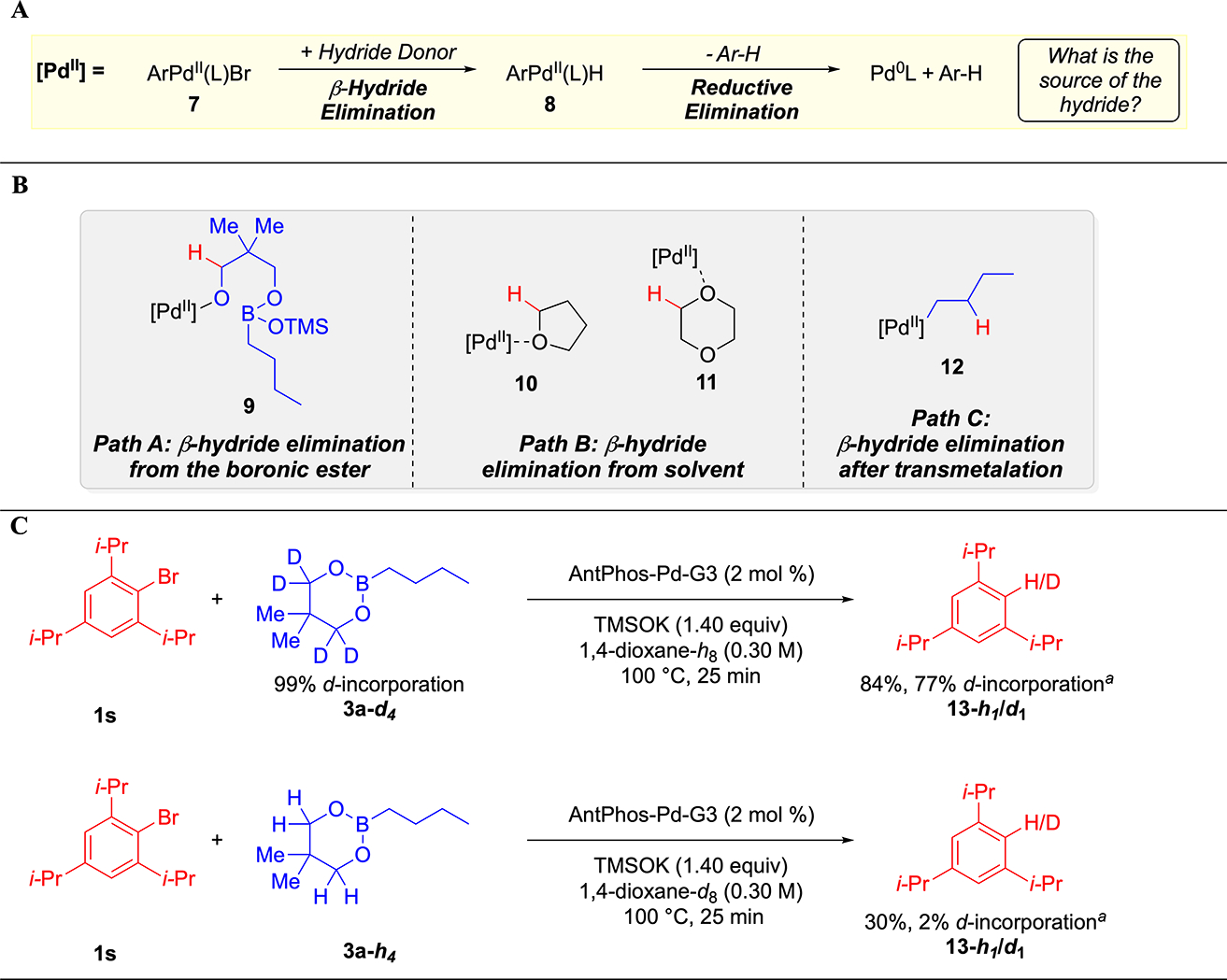

Figure 2.
(A). Plausible mechanism for the origin of protodehalogenation. (B). Hypothetical pathways for the source of the hydride. (C). Deuterium labeling experiments. Reactions run with 0.25 mmol of aryl halide and 1.20 equiv of boronic ester. Yields of isolated product after column chromatography. Deuterium incorporation was determined from mass spectrometry; see the Supporting Information for details.
Scheme 1.
Scheme 1.
Initial Investigation using n-Butylboronic Ester 2aa aReaction run with 0.20 mmol of aryl halide and 1.20 equiv of boronic ester. Yields determined by GC-FID analysis using biphenyl as internal standard.
Scheme 2.
Scheme 2.
Post-HTE Experimentsa aReaction run with 0.20 mmol of aryl halide and 1.20 equiv of boronic ester. Yields determined by GC-FID analysis using biphenyl as internal standard.
Scheme 3.
Scheme 3.
Stereospecificity of the Coupling Reaction aReactions run with 1.00 mmol of aryl halide and 1.20 equiv of boronic ester. Yields of isolated product after column chromatography. bProduct was further purified to analytical purity; see the Supporting Information.
See this image and copyright information in PMC

References

    1. Colacot TJ The 2010 Nobel Prize in Chemistry: Palladium-Catalysed Cross-Coupling. Platin. Met. Rev. 2011, 55, 84–90.
    2. Johansson Seechurn CCC; Kitching MO; Colacot TJ; Snieckus V Palladium-Catalyzed Cross-Coupling: A Historical Contextual Perspective to the 2010 Nobel Prize. Angew. Chem., Int. Ed. 2012, 51, 5062–5085. - PubMed
    3. Suzuki A Cross-Coupling Reactions of Organoboranes: An Easy Way To Construct C-C Bonds (Nobel Lecture). Angew. Chem., Int. Ed. 2011, 50, 6722–6737. - PubMed
    1. Chemler SR; Trauner D; Danishefsky SJ The B-Alkyl Suzuki–Miyaura Cross-Coupling Reaction: Development, Mechanistic Study, and Applications in Natural Product Synthesis. Angew. Chem., Int. Ed. 2001, 40, 4544–4568. - PubMed
    2. Doucet H Suzuki–Miyaura Cross-Coupling Reactions of Alkylboronic Acid Derivatives or Alkyltrifluoroborates with Aryl, Alkenyl or Alkyl Halides and Triflates. Eur. J. Org. Chem. 2008, 2008, 2013–2030.
    3. Molander GA; Sandrock DL Potassium Trifluoroborate Salts as Convenient, Stable Reagents for Difficult Alkyl Transfers. Curr. Opin. Drug Discovery Devel. 2009, 12, 811–823. - PMC - PubMed
    4. Rygus JPG; Crudden CM Enantiospecific and Iterative Suzuki–Miyaura Cross-Couplings. J. Am. Chem. Soc. 2017, 139, 18124–18137. - PubMed
    5. El-Maiss J; Mohy El Dine T; Lu C-S; Karamé I; Kanj A; Polychronopoulou K; Shaya J Recent Advances in Metal-Catalyzed Alkyl–Boron (C(sp3)–C(sp2)) Suzuki-Miyaura Cross-Couplings. Catalysts 2020, 10, 296.
    6. Ma X; Murray B; Biscoe MR Stereoselectivity in Pd-Catalysed Cross-Coupling Reactions of Enantioenriched Nucleophiles. Nat. Rev. Chem. 2020, 4, 584–599. - PMC - PubMed
    1. Littke AF; Dai C; Fu GC Versatile Catalysts for the Suzuki Cross-Coupling of Arylboronic Acids with Aryl and Vinyl Halides and Triflates under Mild Conditions. J. Am. Chem. Soc. 2000, 122, 4020–4028.
    2. Molander GA; Yun C-S; Ribagorda M; Biolatto B B-Alkyl Suzuki–Miyaura Cross-Coupling Reactions with Air-Stable Potassium Alkyltrifluoroborates. J. Org. Chem. 2003, 68, 5534–5539. - PubMed
    3. Dreher SD; Dormer PG; Sandrock DL; Molander GA Efficient Cross-Coupling of Secondary Alkyltrifluoroborates with Aryl Chlorides–Reaction Discovery Using Parallel Microscale Experimentation. J. Am. Chem. Soc. 2008, 130, 9257–9259. - PMC - PubMed
    4. Li L; Zhao S; Joshi-Pangu A; Diane M; Biscoe MR Stereospecific Pd-Catalyzed Cross-Coupling Reactions of Secondary Alkylboron Nucleophiles and Aryl Chlorides. J. Am. Chem. Soc. 2014, 136, 14027–14030. - PMC - PubMed
    5. Zhao S; Gensch T; Murray B; Niemeyer ZL; Sigman MS; Biscoe MR Enantiodivergent Pd-Catalyzed C–C Bond Formation Enabled through Ligand Parameterization. Science 2018, 362, 670–674. - PMC - PubMed
    6. Lehmann JW; Crouch IT; Blair DJ; Trobe M; Wang P; Li J; Burke MD Axial Shielding of Pd(II) Complexes Enables Perfect Stereoretention in Suzuki-Miyaura Cross-Coupling of Csp3 Boronic Acids. Nat. Commun. 2019, 10, 1263. - PMC - PubMed
    1. Lovering F; Bikker J; Humblet C Escape from Flatland: Increasing Saturation as an Approach to Improving Clinical Success. J. Med. Chem. 2009, 52, 6752–6756. - PubMed
    1. Wei W; Cherukupalli S; Jing L; Liu X; Zhan P Fsp3: A New Parameter for Drug-Likeness. Drug Discovery Today 2020, 25, 1839–1845. - PubMed
