ParaDime: A Framework for Parametric Dimensionality Reduction

Abstract

ParaDime is a framework for parametric dimensionality reduction (DR). In parametric DR, neural networks are trained to embed high-dimensional data items in a low-dimensional space while minimizing an objective function. ParaDime builds on the idea that the objective functions of several modern DR techniques result from transformed inter-item relationships. It provides a common interface for specifying these relations and transformations and for defining how they are used within the losses that govern the training process. Through this interface, ParaDime unifies parametric versions of DR techniques such as metric MDS, t-SNE, and UMAP. It allows users to fully customize all aspects of the DR process. We show how this ease of customization makes ParaDime suitable for experimenting with interesting techniques such as hybrid classification/embedding models and supervised DR. This way, ParaDime opens up new possibilities for visualizing high-dimensional data.

Keywords: CCS Concepts; Information visualization; Learning latent representations; • Computing methodologies → Neural networks; • Human‐centered computing → Visualization systems and tools.

Figure 1

ParaDime is a framework for parametric dimensionality reduction. Left: Data flow in a single training phase of a ParaDime routine. Right: Parametric t‐SNE trained on a subset of 5000 images from the MNIST dataset [LeC05] and applied to 15,000 unseen images.

Figure 2

Normalized stress [EMK*19] for parametric versions of metric MDS compared with the non‐parametric SMACOF implementation of scikit‐learn [PVG*11]. The non‐linear models were fully connected neural networks with hidden layer dimensions as indicated. The routine labeled “Direct” is a non‐parametric routine using a batch‐wise optimization which mimics that of the parametric ones. All models were trained on a 10‐dimensional diabetes dataset with 442 items [EHJT04].

Figure 3

Embeddings of hybrid embedding/classification routines for the MNIST dataset [LeC05] created with ParaDime. The relative weight of the embedding loss component is indicated by w_r,emb, and the weight of the classification component was 1‐w_r,emb. All embedding‐related specifications were the same as those of the ParaDime parametric UMAP routine. The routines were trained on a subset of 5000 randomly sampled MNIST images. Test accuracy was calculated on a different subset of 5000 images. Trustworthiness [VK01; EMK*19] was calculated based on ten nearest neighbors.

Figure 4

Supervised embeddings of a subset of the forest covertype dataset [CSSB10]. All embeddings labeled with R are supervised versions of parametric t‐SNE, where supervision was included by means of a triplet loss based on the ground truth labels. R is the ratio of the weights of the t‐SNE loss and the triplet loss. For comparison, embeddings created with scikit‐learn's non‐parametric t‐SNE implementation and with a plain ParaDime t‐SNE version (using item‐based sampling and no triplet loss) are shown. The perplexity was 200 in all cases, and a class‐balanced subset of 7000 items was used.

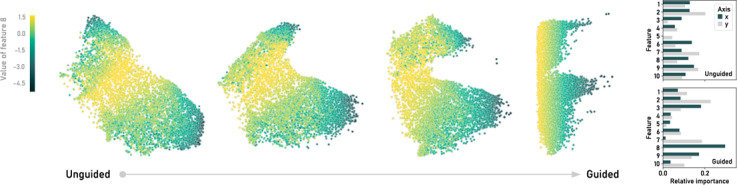

Figure 5

Attribute‐guided embeddings of a subset of the forest covertype dataset [CSSB10]. Attribute guiding was implemented by combining t‐SNE with a correlation loss which orders the data points along the x‐axis by the value of the eighth feature (hillshade at noon). The weights for the embeddings shown are (w_t‐SNE,w_corr) = (1,0), (5000,1), (1000,1), and (100,1), respectively. The bar chart on the right shows, based on integrated gradients, the feature importance scores for the learned embeddings.
