Review
. 2024 Mar 31;54(1):23-38.
doi: 10.28920/dhm54.1.23-38.

Review of saturation decompression procedures used in commercial diving

Jean-Pierre Imbert  1   2 , Lyubisa Matity  3 , Jean-Yves Massimelli  4 , Philip Bryson  5
Affiliations
Review

Review of saturation decompression procedures used in commercial diving

Jean-Pierre Imbert et al. Diving Hyperb Med. .

Abstract

Introduction: This is a review of commercial heliox saturation decompression procedures. The scope does not include compression, storage depth or bell excursion dive procedures. The objectives are to: identify the sources of the procedures; trace their evolution; describe the current practice; and detect relevant trends.

Methods: Eleven international commercial diving companies provided their diving manuals for review under a confidentiality agreement.

Results: Modern commercial diving saturation procedures are derived from a small number of original procedures (United States Navy, Comex, and NORSOK). In the absence of relevant scientific studies since the late 80's, the companies have empirically adapted these procedures according to their needs and experience. Such adaptation has caused differences in decompression rates shallower than 60 msw, decompression rest stops and the decision to decompress linearly or stepwise. Nevertheless, the decompression procedures present a remarkable homogeneity in chamber PO2 and daily decompression rates when deeper than 60 msw. The companies have also developed common rules of good practice; no final decompression should start with an initial ascending excursion; a minimum hold is required before starting a final decompression after an excursion dive. Recommendation is made for the divers to exercise during decompression.

Conclusions: We observed a trend towards harmonisation within the companies that enforce international procedures, and, between companies through cooperation inside the committees of the industry associations.

Keywords: Decompression tables; Occupational diving; Saturation diving.

PubMed Disclaimer

Conflict of interest statement

Conflicts of interest and funding

The authors work as consultants to the offshore industry and sometimes for the participating companies. However, the study received no funding.

Figures

Figure 1
Figure 1

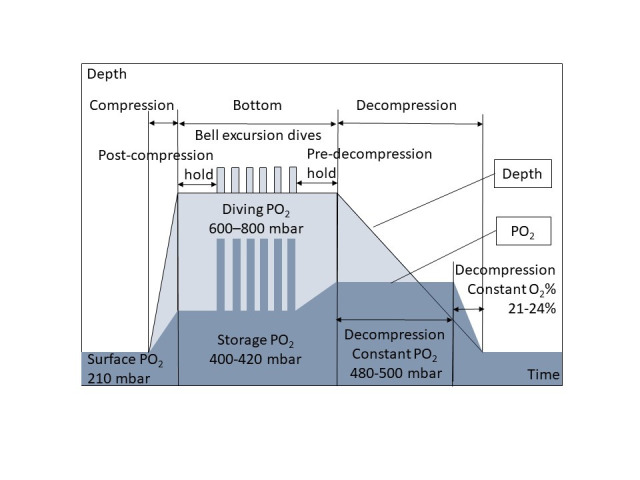

A typical commercial diving saturation showing depth profile and divers inhaled partial pressure of oxygen (PO2); mbar – millibar
Figure 2
Figure 2

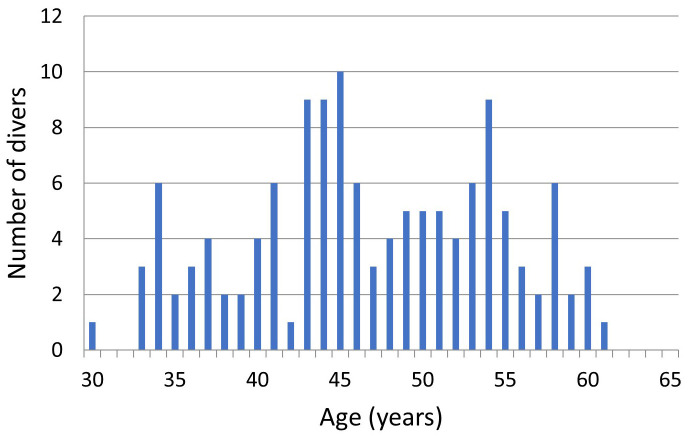

Age distribution of 131 saturation divers working on a large North Sea diving support vessel
Figure 3
Figure 3

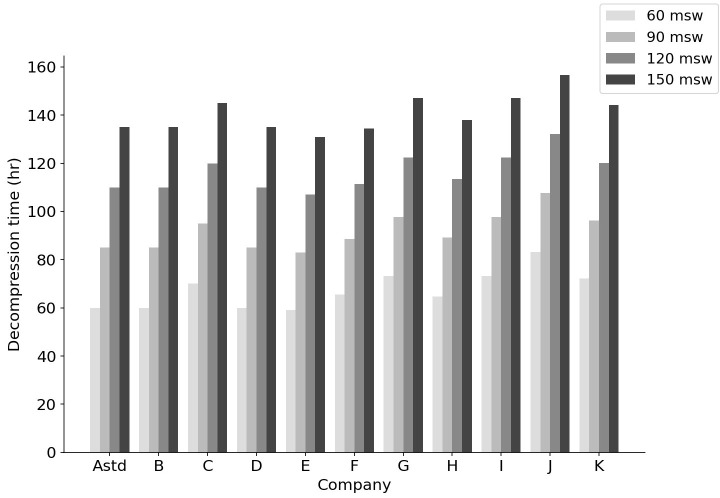

Decompression times in decimal hours for several typical storage depths, for the company procedures reviewed; the predecompression hold is excluded from the decompression time. std – standard
Figure 4
Figure 4

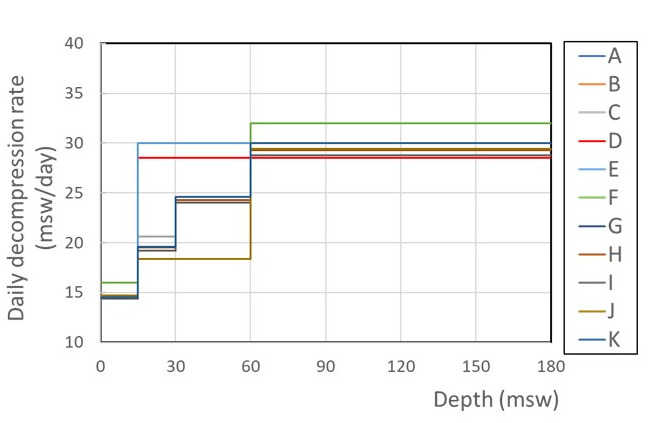

Daily decompression rate (msw·day-1) versus depth (msw), for the 11 different procedures analysed
Figure 5
Figure 5

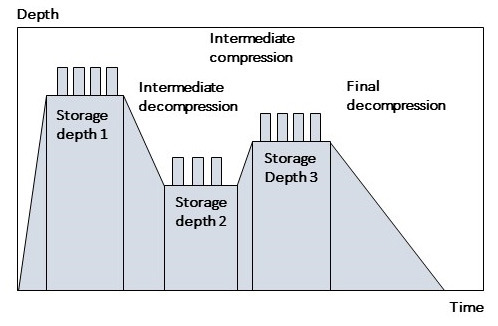

The ‘W’ rule used for storage depth adjustments during one saturation
See this image and copyright information in PMC

References

    1. DMAC. Guidance note 21, rev 2. The duration of saturation exposures and surface intervals following saturations. 2006 June. [cited 2023 Dec 5]. Available from: https://www.dmac-diving.org/guidance/DMAC21.pdf.
    1. US Navy Diving Manual Change 2. Mixed gas diving. NAVSEA 0994-LP-001-9010. Washington (DC): US Department of the Navy; 1977. [cited 2023 Dec 5]. Available from: https://apps.dtic.mil/sti/tr/pdf/ADA112710.pdf.
    1. US Navy Diving Manual, Revision 7. NAVSEA 0910-LP-115-1921. Washington (DC): US Department of the Navy; 2016. [cited 2023 Dec 5]. Available from: https://diving-rov-specialists.com/index_htm_files/docs-14-usn-manual-re....
    1. Imbert JP, Montbarbon M. Use of the comex diving data base. In: Sterk W, Hamilton RW, editors. Proceedings of the European Underwater and Biomedical Society workshop on operational dives and decompression data: collection and analysis; 11-18th August 1990. Amsterdam, The Netherlands: EUBS; 1990. p. 122–32.
    1. Mesures particulières de protection applicables aux scaphandriers. Imprimerie du Journal Officiel, 26 rue Desaix, 75732 Paris cedex 15: Bulletin Officiel du Ministère du Travail; 1992. [cited 2023 Dec 5]. Available from: https://diving-rov-specialists.com/index_htm_files/history-27-french-dec....
