Upstream open reading frames may contain hundreds of novel human exons

Abstract

Several recent studies have presented evidence that the human gene catalogue should be expanded to include thousands of short open reading frames (ORFs) appearing upstream or downstream of existing protein-coding genes, each of which would comprise an additional bicistronic transcript in humans. Here we explore an alternative hypothesis that would explain the translational and evolutionary evidence for these upstream ORFs without the need to create novel genes or bicistronic transcripts. We examined 2,199 upstream ORFs that have been proposed as high-quality candidates for novel genes, to determine if they could instead represent protein-coding exons that can be added to existing genes. We checked for the conservation of these ORFs in four recently sequenced, high-quality human genomes, and found a large majority (87.8%) to be conserved in all four as expected. We then looked for splicing evidence that would connect each upstream ORF to the downstream protein-coding gene at the same locus, thus creating a novel splicing variant using the upstream ORF as its first exon. These protein coding exon candidates were further evaluated using protein structure predictions of the protein sequences that included the proposed new exons. We determined that 582 out of 2,199 upstream ORFs have strong evidence that they can form protein coding exons that are part of an existing gene, and that the resulting protein is predicted to have similar or better structural quality than the currently annotated isoform.

Figure 1.

Each upstream ORF (uORF) was aligned to multiple human genomes, using both the genomic sequence and the annotated transcripts. The transcriptome alignment handled cases where a uORF spanned two exons in the 5’UTR of an annotated transcript.

Figure 2.

Construction of uORF-connected transcripts from a uORF and a downstream protein-coding transcript. The original protein-coding sequence is shown in green rectangles. For uORF-connected transcript #1, a splice junction (red bars) found in the GTEx collection of RNA-seq data is used to link the uORF to the second exon of the downstream transcript. For uORF-connected transcript #2, a splice donor (SD) site predicted by Splam (blue bars) is paired with an annotated splice acceptor (SA) site in a MANE transcript. The novel protein sequences are shown in red rectangles.

Figure 3.

Splice junctions seen in ~10,000 GTEx RNA-seq and Splam predictions yielded a total of 4,880 uORF-connected transcripts from 1,102 uORFs. 2,977 were supported by GTEx data and 1,903 had Splam support but not GTEx evidence.

Figure 4.

Conserved uORFs shared between GRCh38 and all subsets of four different genomes. The innermost region shows that there were 1,931 uORFs conserved in all five genomes.

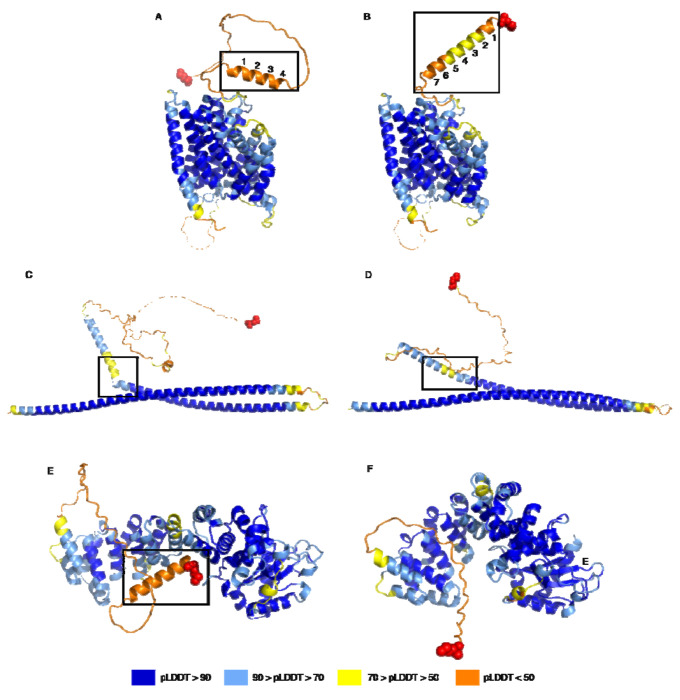

Figure 5.

Examples of structure changes in novel protein variants identified in this study. (A) and (B): alpha helix elongation at the SLC28A1 gene locus, where (A) shows the reference protein, ENST00000398637.10, and (B) shows the novel isoform, uorft_2119. The average pLDDT increase from A to B was 2.96. (C) and (D): straightening at the TRAK2 gene locus, where (C) shows the native protein, ENST00000430254.1, and (D) shows the novel isoform, uorft_441. The average pLDDT increase from C to D was 3.41. (E) and (F): tightening of a structure of TBRG4, where (E) shows the known protein, ENST00000395655.8, and (F) shows the novel isoform, uorft_1435. The main structural changes are highlighted by black boxes for each pair of structures. Red spheres represent the N-terminus of each protein. The average pLDDT increase from E to F was 4.29.
