Evaluation of a 3D-Printed Cleft Palate Obturator Using a Low-Dose Cone Beam Computed Tomography Acquisition Protocol: A Proof-of-Concept Study

Thomas Nelson  1 , Santiago F Cobos  2 , Vaibhav Gandhi  3 , Bina Katechia  4 , Sumit Yadav  5 , Aditya Tadinada  6
Affiliations

Evaluation of a 3D-Printed Cleft Palate Obturator Using a Low-Dose Cone Beam Computed Tomography Acquisition Protocol: A Proof-of-Concept Study

Thomas Nelson et al. Cureus. .

Abstract

Cone beam computed tomography (CBCT) technology is increasingly utilized in the head and neck region and is valuable in treatment planning for cleft palate patients, potentially enabling the creation of 3D-printed obturators to assist with feeding and speech. This technical report investigates the feasibility of using data from a 360-degree CBCT scan to accurately produce a cleft palate obturator and assesses whether a lower-dose 180-degree CBCT scan can achieve a comparable result. A simulated cleft palate was crafted on a dehydrated human skull, which was then scanned using both 360-degree and 180-degree CBCT scanning protocols. Two obturators were digitally designed based on the segmented images from each scan and subsequently 3D printed. Evaluation of the segmented images and 3D-printed obturators from both protocols demonstrated clear visualization of anatomical landmarks and identical scores across all parameters, suggesting that the 180-degree CBCT scan can produce an obturator of comparable quality to that of the 360-degree scan, with the added benefit of reduced radiation exposure.

Keywords: 3d digital models; 3d image reconstruction; cleft lip & palate; cone-beam computed tomography; maxillary obturator.

PubMed Disclaimer

Conflict of interest statement

The authors have declared that no competing interests exist.

Figures

Figure 1

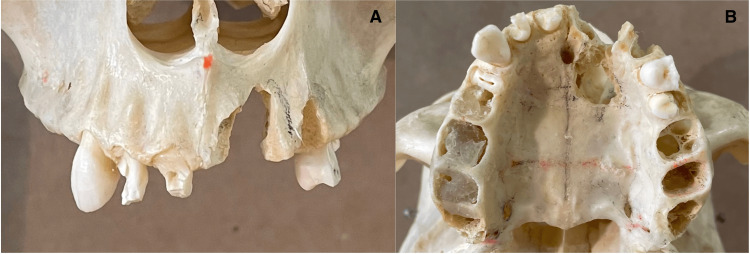

Figure 1. Simulated cleft palate on a human skull.
A: Frontal view. B: Occlusal view.
Figure 2
Figure 2. Segmented images of the skull derived from 360-degree protocol CBCT data with a designed obturator (red) fit to the segmented image.
A: Frontal view without obturator. B: Frontal view with obturator. C: Occlusal view without obturator. D: Occlusal view with obturator. CBCT: cone beam computed tomography.
Figure 3
Figure 3. 3D-printed obturators before support material removal designed from both the 360-degree CBCT protocol (left) and the 180-degree protocol (right).
CBCT: cone beam computed tomography.
Figure 4

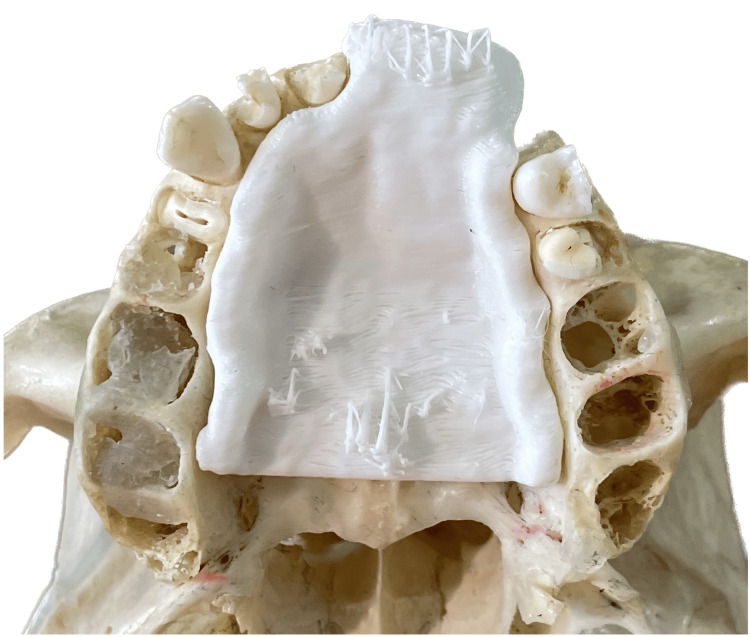

Figure 4. The 3D-printed obturator, designed from 360-degree protocol CBCT data, placed on the skull.
CBCT: cone beam computed tomography.
