Changes in the ultrasound presentation of hepatocellular carcinoma: a center's three decades of experience

Abstract

Purpose: Ultrasound (US) surveillance is a cornerstone for early diagnosis of HCC, anyway US presentation has undergone significant changes. With the aim of evaluating the effects of US surveillance program in the real-world clinical practice, we wanted to evaluate US presentation of HCCs over the last 30 years and the differences of HCCs presentation according to etiology.

Methods: 174 patients diagnosed between 1993 and 98 (G1), 96 between 2003 and 08 (G2), 102 between 2013 and 18 (G3), were compared. US patterns were: single, multiple or diffuse nodules. The echo-patterns: iso-, hypo-, hyper-echoic, or mixed. In G1, the HCC diagnosis was mainly histologic; in G2 by EASL 2001 and AASLD 2005, in G3 AASLD 2011, EASL 2012, and AISF 2013 guidelines.

Results: HCV was the most frequent etiology, dropping between G1 (81%) and G3 (66%) (P < 0.01), metabolic increased between G1 (5%) and G3 (14%) (P < 0.01). Single HCC was more prevalent in G3 vs G1 (65.6% vs 40%) (P < 0.0001), multiple nodules in G1 (50%) vs G3 (33.3%) (P < 0.02) and diffuse in G1 (16%) vs G2 (2%) and vs G3 (1%) (P < 0.001). The most frequent echo-pattern was hypo-echoic G1 (50%) vs G2 (79%) and G1 vs G3 (65%) (P < 0.01). Iso-echoic pattern was the least frequent (7-12%). Mixed pattern decreased from G1 (28%) to G3 (12%) (P < 0.002). In G3 there were more multiple or diffuse HCCs in metabolic (P < 0.03).

Conclusion: US presentation became less severe due to surveillance programs. HCV remains the most frequent cause, an increase in metabolic etiology has been shown throughout the decades.

Keywords: Echo-pattern; HCC; HCV; Liver cirrhosis; NAFLD; Ultrasound.

Fig. 1

HCC etiology in the three study groups

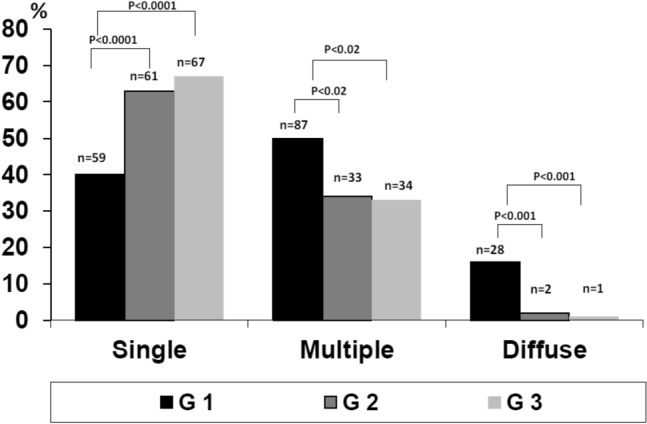

Fig. 2

US presentation in the three groups according to Otho’s classification

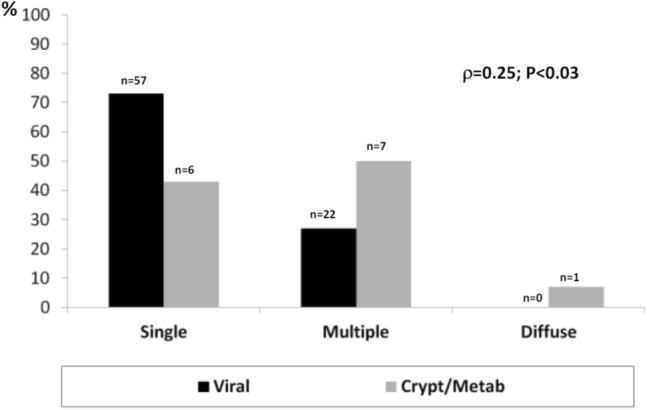

Fig. 3

US presentation in viral vs metabolic HCCs according to Otho’s classification

Fig. 4

Echo-patterns in the three study groups
