. 2022 Oct 1;40(5):504-512.
doi: 10.7518/hxkq.2022.05.002.

Clinical decision-making of anterior implant abutment

[Article in English, Chinese]
Haiyang Yu  1 , Manlin Sun  1 , Zhongyi Wang  1
Affiliations

Clinical decision-making of anterior implant abutment

[Article in English, Chinese]
Haiyang Yu et al. Hua Xi Kou Qiang Yi Xue Za Zhi. .

Abstract

Abutment is an important component serving as a connecting link between the implant and the implant-supported prosthesis. In accordance with mechanical, biological, and other conventional norms, it can compensate the deviation between the implant and the prosthesis, which plays a significant role in maintaining the health of peri-implant tissue and the longevity, stability, and effectivity of prosthesis. However, choosing an anterior implant abutment correctly and conveniently is challenging, given the great variety of anterior abutment in clinical practice. Through virtual implant design, the correct implant site was compared and selected, and the supra-target prosthesis was coordinated before and after the operation. The implant level vertical of height of target restoration space (I) was measured to predict the availability and the retentive method of the implant restoration. After implantation, the primary selection of abutment type was selected according to the implant system (S), screw access position, and retentive method of the prosthesis. The final selection of abutment is accomplished by combining the measured values of peri-implant soft tissue thickness (T), gingival height (GH), and long axis of implant (L). Furthermore, the concepts and the classified applications of custom abutment were discussed in detail in this paper. The plan's main control variables L, I, GH, T, and S compose the words Lights, so this plan can be abbreviated as the anterior abutment decision tree. The decision tree has good decision-making efficiency and high clinical accessibility.

Keywords: abutment; anterior implantation; clinical pathway; decision tree; implant-supported supra-restruction.

PubMed Disclaimer

Conflict of interest statement

利益冲突声明：作者声明本文无利益冲突。

Figures

图 1

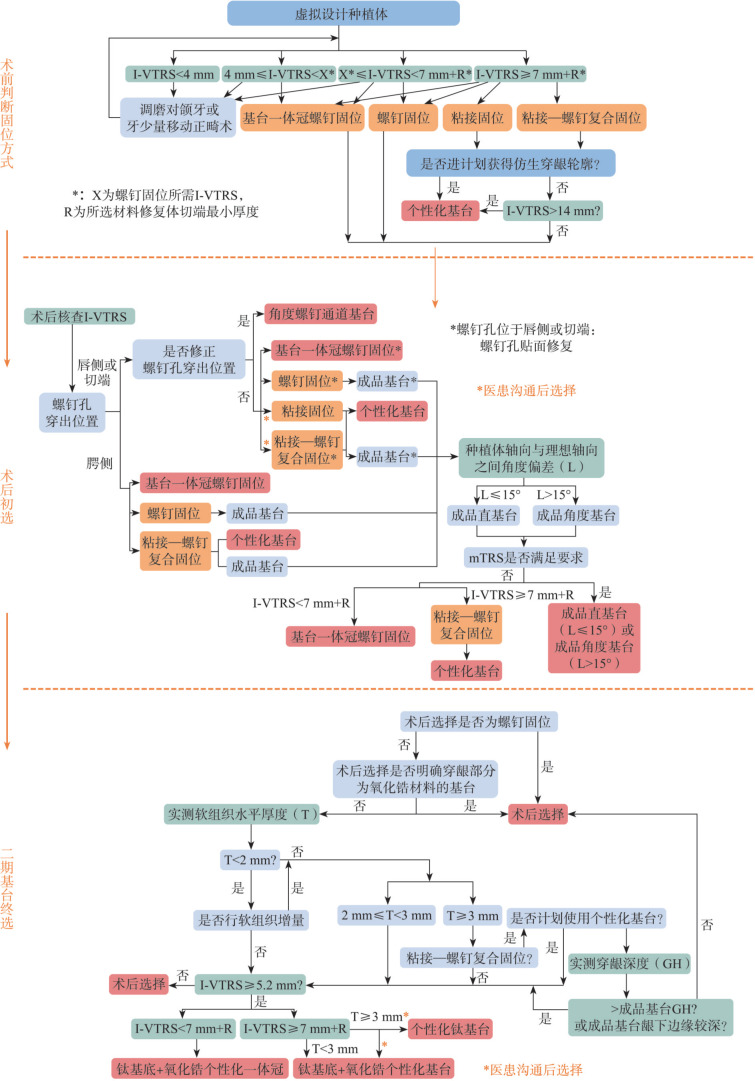

图 1. 前牙种植基台的临床决策路径——前牙基台的Lights决策树
Fig 1 Decision path of anterior implant abutment——Lights decision tree of anterior implant
图 2

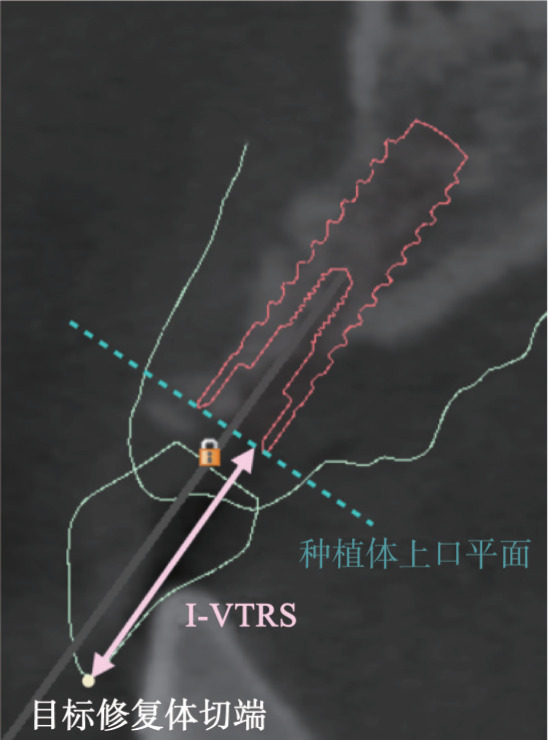

图 2. 基于种植体上口平面测量前牙区I-VTRS
Fig 2 Measurement of anterior I-VTRS based on the upper mouth plane of implant
图 3

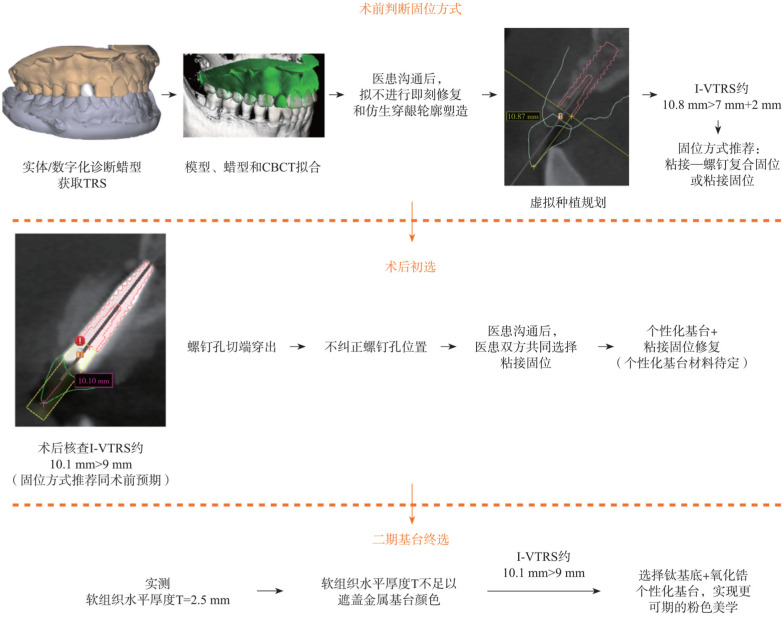

图 3. 应用Lights决策树选择右上颌侧切牙种植修复基台的临床路径
Fig 3 The clinical path of choosing of implant abutment for right lateral incisor restoratioin according to the Lights decision tree
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Zheng Z, Ao XG, Xie P, et al. The biological width around implant[J] J Prosthodont Res. 2021;65(1):11–18. - PubMed
    1. Avila-Ortiz G, Gonzalez-Martin O, Couso-Queiruga E, et al. The peri-implant phenotype[J] J Periodontol. 2020;91(3):283–288. - PubMed
    1. Kan JY, Roe P, Rungcharassaeng K, et al. Classification of sagittal root position in relation to the anterior maxillary osseous housing for immediate implant placement: a cone beam computed tomography study[J] Int J Oral Maxillofac Implants. 2011;26(4):873–876. - PubMed
    1. Gjelvold B, Sohrabi MM, Chrcanovic BR. Angled screw channel: an alternative to cemented single-implant restorations: three clinical examples[J] Int J Prosthodont. 2016;29(1):74–76. - PubMed
    1. Edmondson EK, Trejo PM, Soldatos N, et al. The ability to screw-retain single implant-supported restorations in the anterior maxilla: a CBCT analysis[J] J Prosthet Dent. 2021:S0022-S3913(21)00032-9. - PubMed
