. 2024 Apr 20;18(1):179.
doi: 10.1007/s11701-024-01951-5.

Upper extremity contact pressure measurement in robot-assisted pelvic surgery

Naoki Kimura  1   2 , Yuta Yamada  3 , Yuji Hakozaki  2 , Jun Kaneko  2 , Jun Kamei  2 , Satoru Taguchi  2 , Yoshiyuki Akiyama  2 , Daisuke Yamada  2 , Tetsuya Fujimura  4 , Haruki Kume  2
Affiliations

Upper extremity contact pressure measurement in robot-assisted pelvic surgery

Naoki Kimura et al. J Robot Surg. .

Abstract

Upper extremity complications are often a problem in robot-assisted pelvic surgery (RAPS) with the lithotomy-Trendelenburg position (LT-position). This study focused on upper extremity contact pressure (UEP) and examined the relationship between UEP and upper extremity complications. From May 2020 to April 2022 at the University of Tokyo Hospital, UEP was measured in 155 patients undergoing RARP and 20 patients undergoing RARC. A total of 350 sets of UEP were investigated in this study. UEP was measured using a portable interface pressure sensor (Palm Q, Cape CO., Kanagawa, Japan) in the preoperative lithotripsy position (L-position), preoperative LT-position, and postoperative L-position. UEP was increased in the preoperative LT-position than in the preoperative L-position (right side 5.2 mmHg vs. 17.1 mmHg, left side 5.3 mmHg vs. 17.1 mmHg, P < 0.001, respectively), and was decreased in the postoperative L-position than in preoperative LT-position (right side 17.1 mmHg vs. 10.8 mmHg, left side 17.1 mmHg vs. 10.6 mmHg, P < 0.001, respectively). Eleven upper extremities developed shoulder pain. UEP of the preoperative LT-position tended to be higher in the upper extremity exhibiting shoulder pain (25.6 mmHg (15.4-30.3) vs. 17.1 mmHg (12.0-24.4) P = 0.0901). UEP measurements may help prevent postoperative shoulder pain.

Keywords: Contact pressure; Robot-assisted pelvic surgery; Shoulder pain; Trendelenburg position; Upper extremity complication.

PubMed Disclaimer

Conflict of interest statement

The authors have no relevant financial or non-financial interests to disclose.

Figures

Fig. 1
Fig. 1
A Structure of portable interface pressure sensor (Palm Q, Cape CO., Kanagawa, Japan). It consists of a main body which has a screen and ‘start’ button, cord, and 5 sensors. B The picture of measurement of contact pressure. The left shoulder is supported by a cushion pad and Wakasugi side support apparatus (Mizuho Corporation, Tokyo, Japan). The sensor of the device (Palm Q) was placed between the shoulder and cushion pad at the shoulder

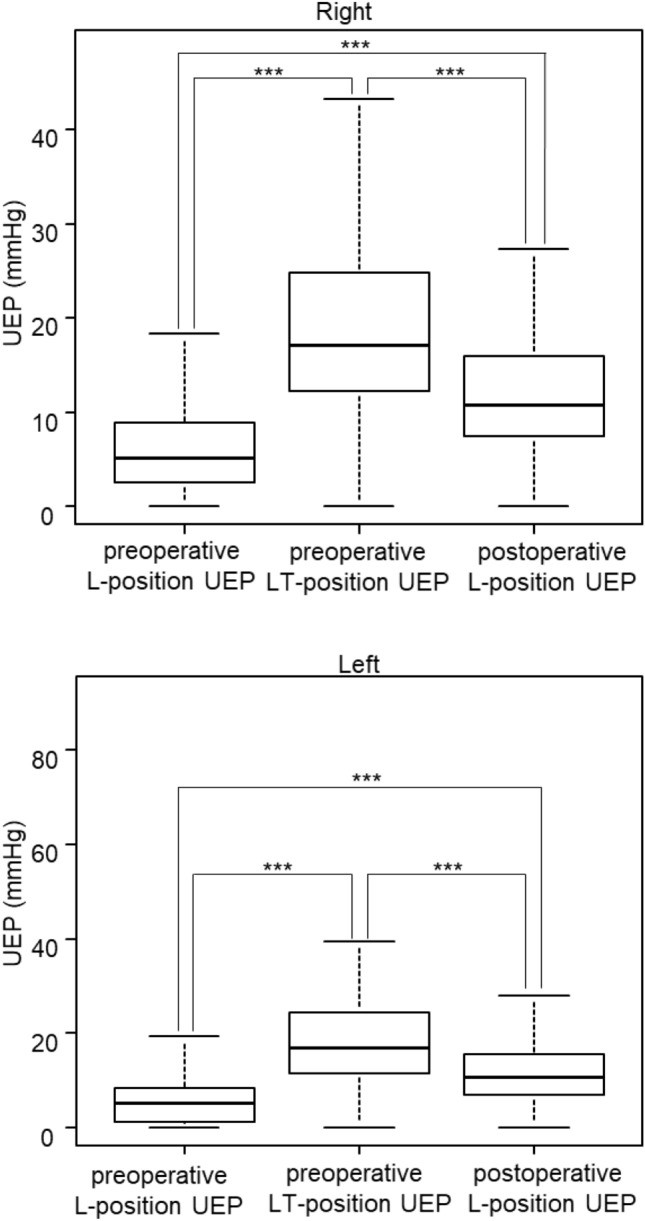

Fig. 2
Fig. 2
Measurement of upper extremity pressure (UEP). UEP is compared among positioning. Wilcoxon rank sum test. ***: P < 0.001
