. 2024 Apr 5:11:1331902.
doi: 10.3389/fsurg.2024.1331902. eCollection 2024.

Precision soft tissue balancing: grid-assisted pie-crusting in total knee arthroplasty

Arash Rezaei  1 , John Moon  1 , Asher Lichtig  1 , Barbara Mera  2 , Brett Drake  1 , Apurva S Choubey  1 , Sunjung Kim  1 , Nicole Tueni  1 , Hristo Piponov  1 , Jason Koh  3 , Joseph Karam  1 , Farid Amirouche  1   3
Affiliations

Precision soft tissue balancing: grid-assisted pie-crusting in total knee arthroplasty

Arash Rezaei et al. Front Surg. .

Abstract

Introduction: The varus and valgus knee deformities result from imbalance in tension between medial and lateral soft tissue compartments. These conditions need to be addressed during total knee arthroplasty (TKA). However, there is no consensus on optimal soft-tissue release techniques for correcting varus and valgus deformities during TKA. We assessed the efficacy of a novel grid-based pie-crusting technique on soft-tissue release.

Methods: Cadaver knees were dissected, leaving only the femur and tibia connected by an isolated MCL or the femur and fibula connected by an isolated LCL. Bone cuts were made as performed during primary TKA. Mechanical testing was performed using an MTS machine. A 3D-printed 12-hole grid was placed directly over the MCL and LCL. Using an 18-gauge needle, horizontal in-out perforations were made 3 mm apart. Deformation and stiffness of the ligaments were collected after every 2 perforations. Means were calculated, and regression analyses were performed.

Results: A total of 7 MCL and 6 LCL knees were included in our analysis. The mean medial femorotibial (MFT) space increased from 6.018 ± 1.4 mm-7.078 ± 1.414 mm (R2 = 0.937) following 12 perforations. The mean MCL stiffness decreased from 32.15 N/mm-26.57 N/mm (R2 = 0.965). For the LCL group, the mean gap between the femur and fibula increased from 4.287 mm-4.550 mm following 8 perforations. The mean LCL stiffness decreased from 29.955 N/mm-25.851 N/mm. LCL stiffness displayed a strong inverse relationship with the number of holes performed (R2 = 0.988).

Discussion: Our results suggest that using this novel grid for pie-crusting of the MCL and LCL allows for gradual lengthening of the ligaments without sacrificing their structural integrity. Our proposed technique may serve as a valuable piece in the soft-tissue release toolkit for orthopaedic surgeons performing TKA in varus and valgus deformed knees.

Keywords: LCL; MCL; TKA; arthroplasty; pie-crusting; soft-tissue balancing.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1

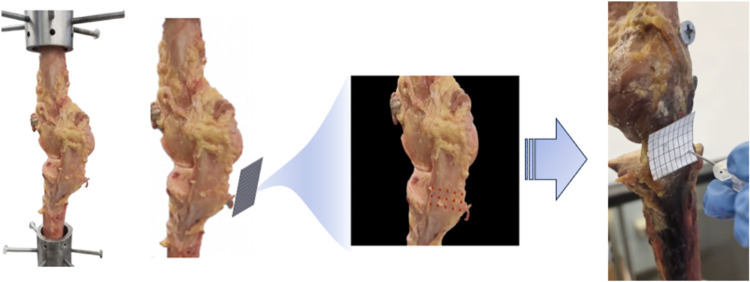

Figure 1
3d printed grid covering the surface of the MCL for exact perforations using an 18-gauge needle. This was in accordance with the pre-designed template/grid, as shown. The custom-made fixtures were used to secure specimens in place and adequately align the knees for vertical tension.
Figure 2

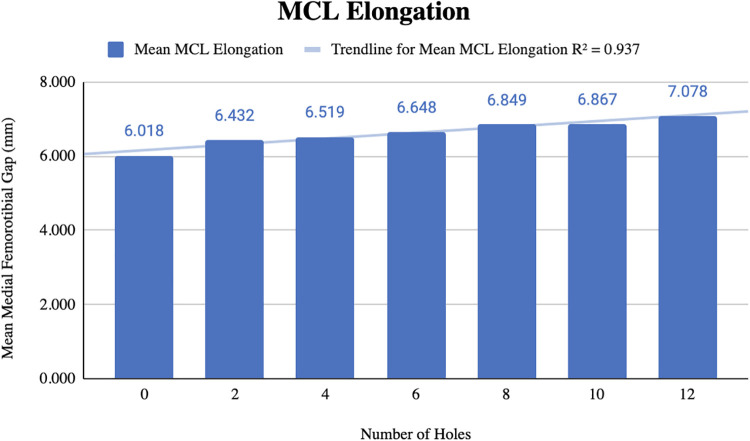

Figure 2
Change in MCL elongation with increasing number of perforations during pie-crusting.
Figure 3

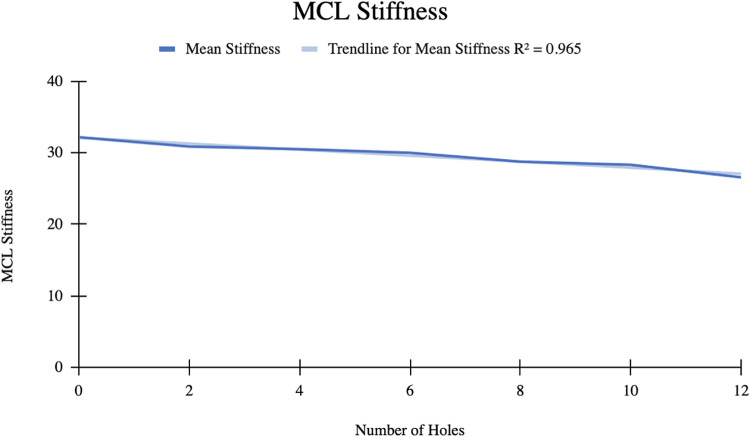

Figure 3
A linear relationship between mean MCL stiffness and number of perforations.
Figure 4

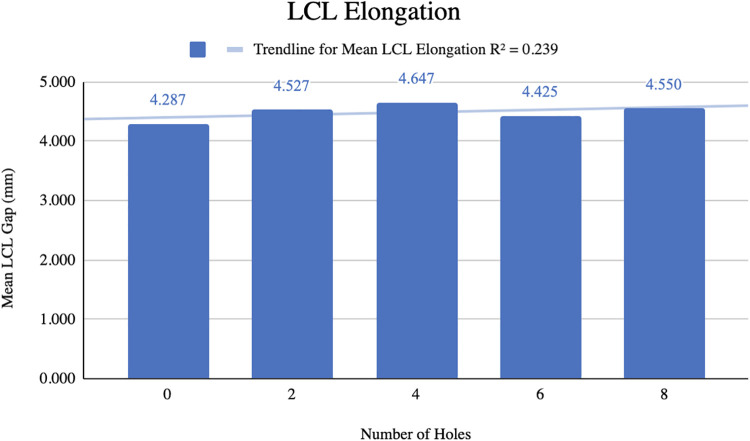

Figure 4
Change in mean LCL gap with the progression of pie-crusting.
Figure 5

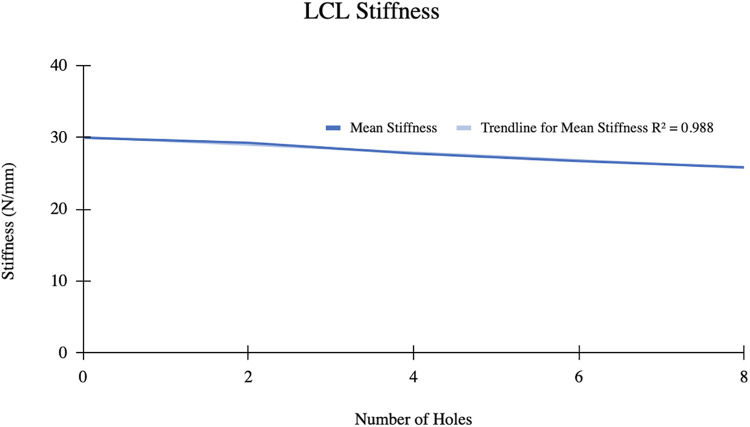

Figure 5
A linear relationship between mean LCL stiffness and number of perforations.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Singh JA, Yu S, Chen L, Cleveland JD. Rates of total joint replacement in the United States: future projections to 2020-2040 using the national inpatient sample. J Rheumatol. (2019) 46(9):170990. 10.3899/jrheum.170990 - DOI - PubMed
    1. Geller JA, Lakra A, Murtaugh T. The use of electronic sensor device to augment ligament balancing leads to a lower rate of arthrofibrosis after total knee arthroplasty. J Arthroplasty. (2017) 32(5):1502–4. 10.1016/j.arth.2016.12.019 - DOI - PubMed
    1. Insall JN, Binazzi R, Soudry M, Mestriner LA. Total knee arthroplasty. Clin Orthop Relat Res. (1985) 192:13–22. 10.1097/00003086-198501000-00003 - DOI - PubMed
    1. Mihalko WM, Woodard EL, Hebert CT, Crockarell JR, Williams JL. Biomechanical validation of medial pie-crusting for soft-tissue balancing in knee arthroplasty. J Arthroplasty. (2015) 30:296–9. 10.1016/j.arth.2014.09.005 - DOI - PubMed
    1. Koh IJ, Kwak D-S, Kim TK, Park IJ, In Y. How effective is multiple needle puncturing for medial soft tissue balancing during total knee arthroplasty? A cadaveric study. J Arthroplasty. (2014) 29:2478–83. 10.1016/j.arth.2013.11.004 - DOI - PubMed
