. 2024 Apr 11;16(8):1067.
doi: 10.3390/polym16081067.

Color and Chemical Stability of 3D-Printed and Thermoformed Polyurethane-Based Aligners

Luka Šimunović  1 , Sara Čekalović Agović  2 , Antun Jakob Marić  3 , Ivana Bačić  4 , Eva Klarić  5 , Flavio Uribe  6 , Senka Meštrović  1
Affiliations

Color and Chemical Stability of 3D-Printed and Thermoformed Polyurethane-Based Aligners

Luka Šimunović et al. Polymers (Basel). .

Abstract

The significant rise in the use of clear aligners for orthodontic treatment is attributed to their aesthetic appeal, enhancing patient appearance and self-confidence. The aim of this study is to evaluate the aligners' response to common staining agents (coffee, black tea, Coca-Cola, and Red Bull) in color and chemical stability. Polyurethane-based thermoformed and 3D-printed aligners from four brands were exposed to common beverages to assess color change using a VITA Easyshade compact colorimeter after 24 h, 48 h, 72 h, and 7 days, as well as chemical stability using ATR-FTIR spectroscopy. The brand, beverage, and manufacturing method significantly influence color stability. ATR-FTIR analysis revealed compositional differences, with variations in response to beverage exposure affecting the integrity of polymer bonds. Color change analysis showed coffee as the most potent staining agent, particularly affecting Tera Harz TC85 aligners, while ClearCorrect aligners exhibited the least susceptibility. 3D-printed aligners showed a greater color change compared to thermoformed ones. Aligners with a PETG outer layer are more resistant to stains and chemical alterations than those made of polyurethane. Additionally, 3D-printed polyurethane aligners stain more than thermoformed ones. Therefore, PETG-layered aligners are a more reliable choice for maintaining the aesthetic integrity of aligners.

Keywords: 3D printing; Fourier transform infrared spectroscopy; aligners; color.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

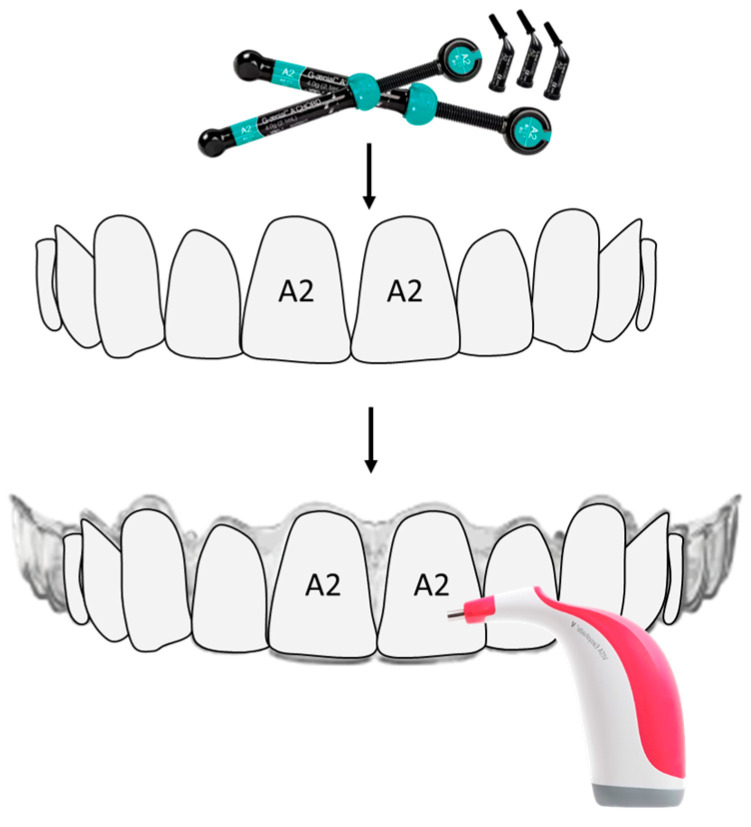

Figure 1
Figure 1
Scheme of teeth models and measurement.

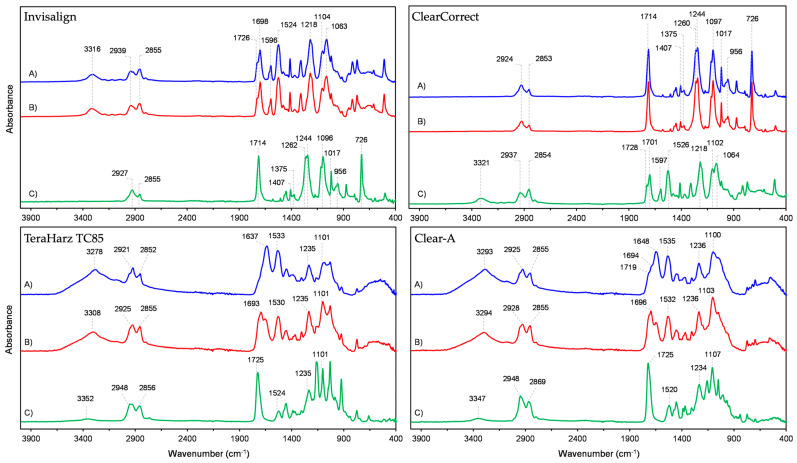

Figure 2
Figure 2
Material characterization: A—outer vestibular layer, B—outer layer in contact with teeth, C—middle layer.

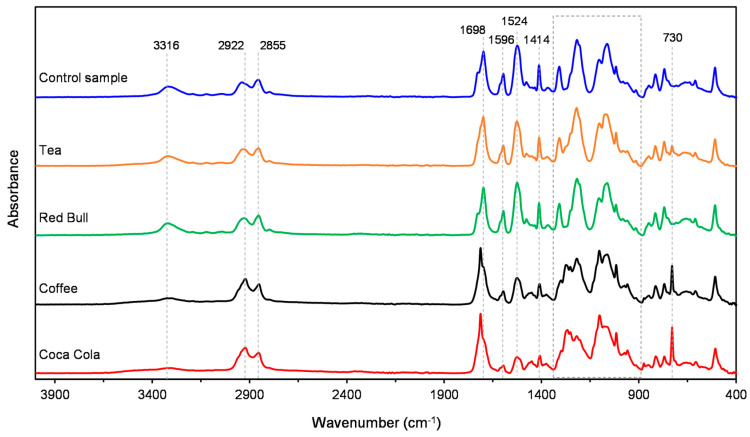

Figure 3
Figure 3
The spectra of the vestibular outer layer of the control sample of the Invisalign aligner as well as the samples treated with the selected beverages.

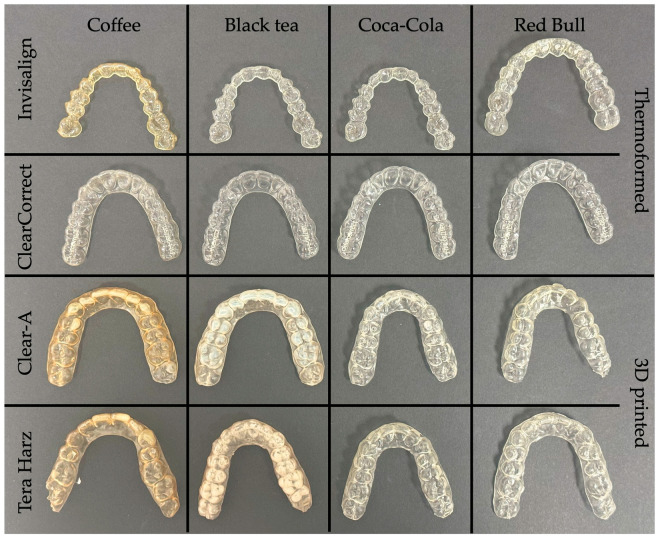

Figure 4
Figure 4
Aligners after 24 h of immersion.

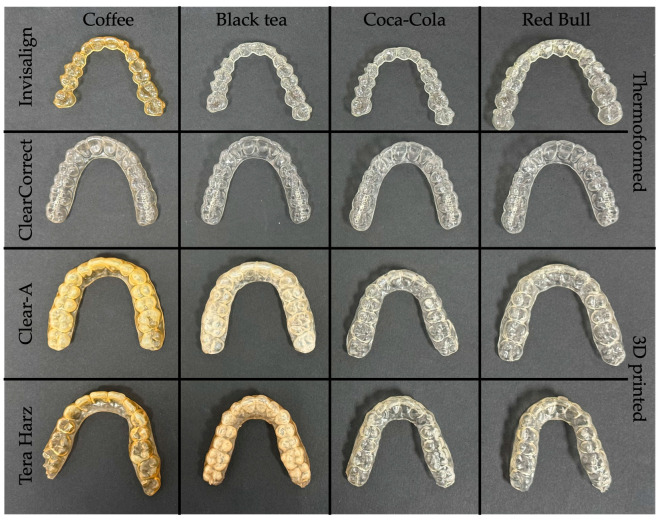

Figure 5
Figure 5
Aligners after 48 h of immersion.

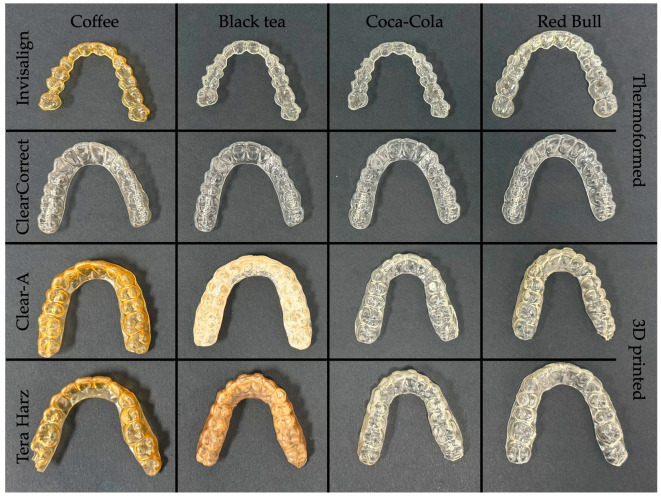

Figure 6
Figure 6
Aligners after 72 h of immersion.

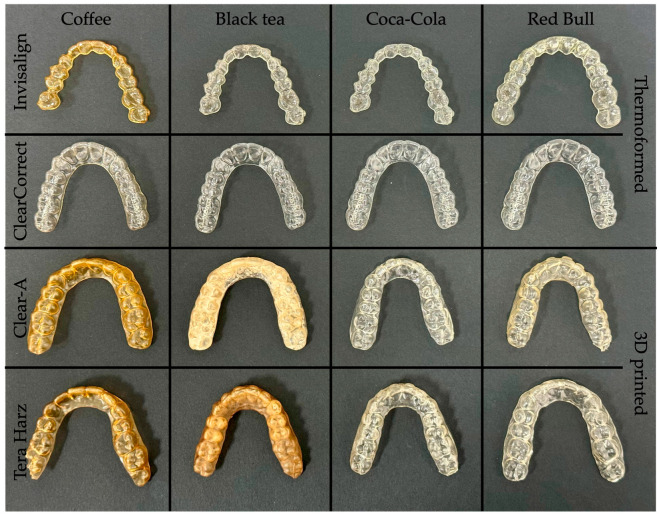

Figure 7
Figure 7
Aligners after 7 days of immersion.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Weir T. Clear Aligners in Orthodontic Treatment. Aust. Dent. J. 2017;62((Suppl. S1)):58–62. doi: 10.1111/adj.12480. - DOI - PubMed
    1. Zheng M., Liu R., Ni Z., Yu Z. Efficiency, Effectiveness and Treatment Stability of Clear Aligners: A Systematic Review and Meta-Analysis. Orthod. Craniofac. Res. 2017;20:127–133. doi: 10.1111/ocr.12177. - DOI - PubMed
    1. Meade M.J., Millett D.T., Cronin M. Social perceptions of orthodontic retainer wear. Eur. J. Orthod. 2014;36:649–656. doi: 10.1093/ejo/cjt087. - DOI - PubMed
    1. Ganta G.K., Cheruvu K., Ravi R.K., Reddy R.P. Clear Aligners, the Aesthetic Solution: A Review. Int. J. Dent. Mater. 2021;3:90–95. doi: 10.37983/IJDM.2021.3304. - DOI
    1. Pithon M.M., Baião F.C.S., Sant’ Anna L.I.D.D.A., Paranhos L.R., Cople Maia L. Assessment of the Effectiveness of Invisible Aligners Compared with Conventional Appliance in Aesthetic and Functional Orthodontic Treatment: A Systematic Review. J. Investig. Clin. Dent. 2019;10:e12455. doi: 10.1111/jicd.12455. - DOI - PubMed
