Preoperative Differentiation of HER2-Zero and HER2-Low from HER2-Positive Invasive Ductal Breast Cancers Using BI-RADS MRI Features and Machine Learning Modeling

Abstract

Background: Accurate determination of human epidermal growth factor receptor 2 (HER2) is important for choosing optimal HER2 targeting treatment strategies. HER2-low is currently considered HER2-negative, but patients may be eligible to receive new anti-HER2 drug conjugates.

Purpose: To use breast MRI BI-RADS features for classifying three HER2 levels, first to distinguish HER2-zero from HER2-low/positive (Task-1), and then to distinguish HER2-low from HER2-positive (Task-2).

Study type: Retrospective.

Population: 621 invasive ductal cancer, 245 HER2-zero, 191 HER2-low, and 185 HER2-positive. For Task-1, 488 cases for training and 133 for testing. For Task-2, 294 cases for training and 82 for testing.

Field strength/sequence: 3.0 T; 3D T1-weighted DCE, short time inversion recovery T2, and single-shot EPI DWI.

Assessment: Pathological information and BI-RADS features were compared. Random Forest was used to select MRI features, and then four machine learning (ML) algorithms: decision tree (DT), support vector machine (SVM), k-nearest neighbors (k-NN), and artificial neural nets (ANN), were applied to build models.

Statistical tests: Chi-square test, one-way analysis of variance, and Kruskal-Wallis test were performed. The P values <0.05 were considered statistically significant. For ML models, the generated probability was used to construct the ROC curves.

Results: Peritumoral edema, the presence of multiple lesions and non-mass enhancement (NME) showed significant differences. For distinguishing HER2-zero from non-zero (low + positive), multiple lesions, edema, margin, and tumor size were selected, and the k-NN model achieved the highest AUC of 0.86 in the training set and 0.79 in the testing set. For differentiating HER2-low from HER2-positive, multiple lesions, edema, and margin were selected, and the DT model achieved the highest AUC of 0.79 in the training set and 0.69 in the testing set.

Data conclusion: BI-RADS features read by radiologists from preoperative MRI can be analyzed using more sophisticated feature selection and ML algorithms to build models for the classification of HER2 status and identify HER2-low.

Technical efficacy: Stage 2.

Keywords: HER2 low; HER2 positive; breast cancer; magnetic resonance imaging.

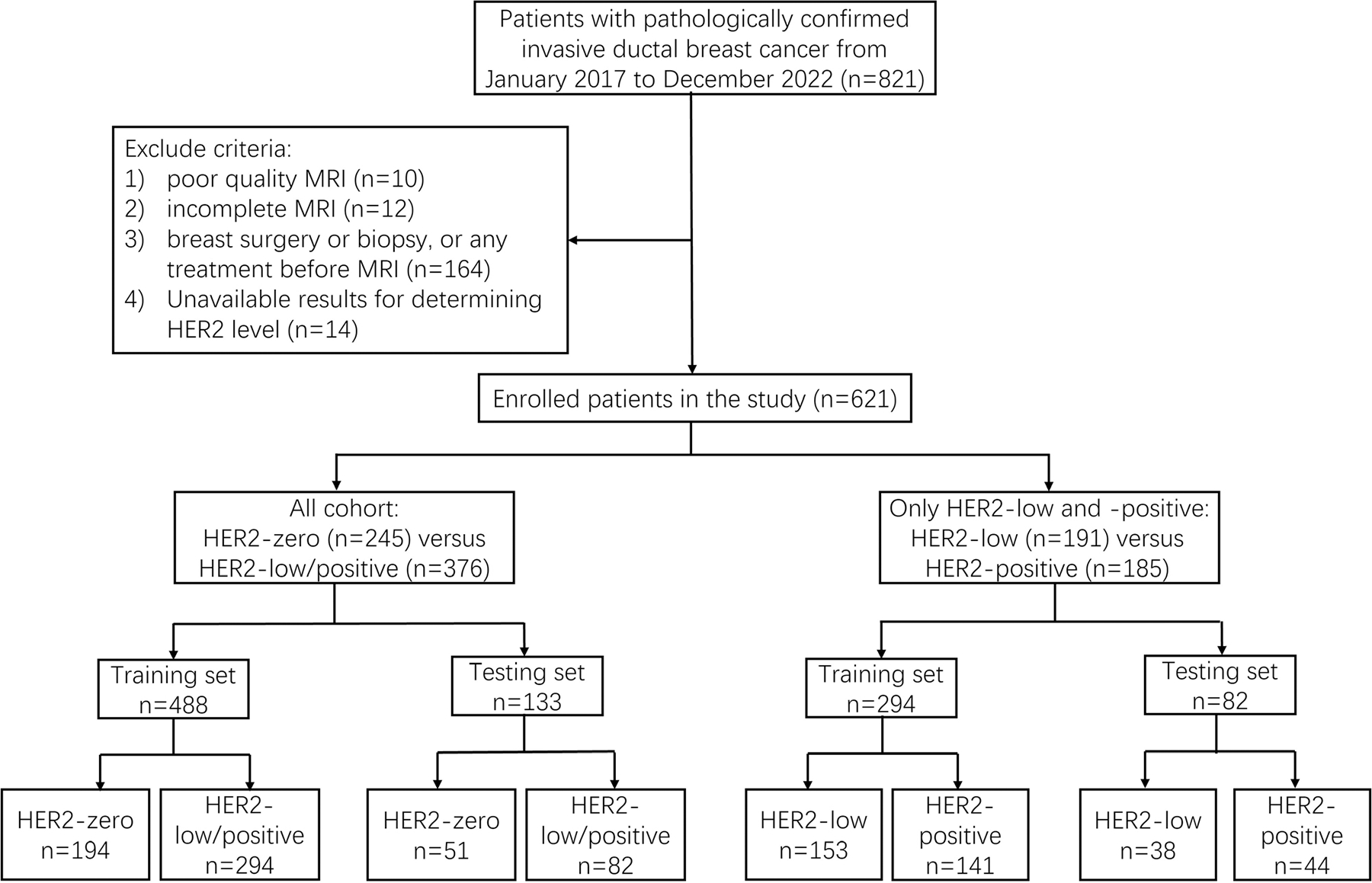

FIGURE 1:

The study flowchart showing the patient selection processes, and the case numbers used for training and testing for two different tasks. Task-1 for the classification of HER2-zero vs. non-zero (i.e., low plus positive), and Task-2 for the classification of HER2-low vs. HER2-positive.

FIGURE 2:

Invasive ductal carcinoma with HER2-zero in the right breast of a 54-year-old woman. (a) The image of maximum intensity projection shows the enhanced tumor in the right breast. (b) The single tumor shows moderate signal on axial T2-weighted imaging without peritumor edema. (c) It shows high signal on DWI with ADC 0.94 × 10⁻³ mm²/sec. (d) It shows rapid enhancement on the initial phase after the contrast injection. (e) It shows plateau DCE kinetic curve.

FIGURE 3:

Invasive ductal cancer with HER2-low in the right breast of a 44-year-old woman. (a) The image of maximum intensity projection shows the enhanced tumor in the right breast. (b) The single tumor shows moderate signal on axial T2-weighted imaging without peritumor edema. (c) It shows high signal on DWI with ADC 0.86 × 10⁻³ mm²/sec. (d) It shows rapid enhancement on the initial phase after the contrast injection. (e) It shows plateau DCE kinetic curve.

FIGURE 4:

Invasive ductal carcinoma with HER2-positive in the right breast of a 56-year-old woman. (a) The image of maximum intensity projection shows the enhanced multiple tumors in the right breast. (b) Peritumoral edema shows high signal on axial T2-weighted imaging. (c) Peritumoral edema shows high signal on sagittal T2-weighted imaging. (d) Tumors show high signal on DWI with ADC 0.94 × 10⁻³ mm²/sec. (e) Multiple mass lesions show remarkable enhancement on the second phase after the contrast injection. (f) Tumors show washout DCE kinetic curve.

FIGURE 5:

Invasive ductal carcinoma with HER2-positive in the right breast of a 41-year-old woman. (a) The image of maximum intensity projection shows the enhanced tumor in the right breast. (b) Peritumoral edema shows high signal on axial T2-weighted. (c) The tumor shows high signal on DWI with ADC 0.89 × 10⁻³ mm²/sec. (d) It shows NME on the second phase after the contrast injection. (e) It shows washout DCE kinetic curve.
