. 2024 May 16:17:2359-2370.
doi: 10.2147/JMDH.S462297. eCollection 2024.

Assessing the Diagnostic Efficacy of Handgrip Dynamometry and Diaphragmatic Ultrasound in Intensive Care Unit-Acquired Weakness

Qian Zhang  1 , Xiaomei Wang  1 , Mingzhe Liu  1 , Bin Li  1 , Kun Zhang  1 , Yaqi Han  1 , Jiali Li  2 , Yan Xin  3 , Yan Huo  1 , Zhenjie Hu  1
Affiliations

Assessing the Diagnostic Efficacy of Handgrip Dynamometry and Diaphragmatic Ultrasound in Intensive Care Unit-Acquired Weakness

Qian Zhang et al. J Multidiscip Healthc. .

Abstract

Objective: The aim of this study is to examine the diagnostic significance of using handgrip dynamometry and diaphragmatic ultrasound in intensive care unit-acquired weakness (ICU-AW).

Methods: This study included patients who received mechanical ventilation in the ICU at the Fourth Hospital of Hebei Medical University from July to December 2020. We collected comprehensive demographic data and selected conscious patients for muscle strength and ICU-AW assessments. The evaluation comprised grip strength measurement and bedside ultrasound for diaphragmatic excursion (DE) and thickening fraction (DTF). Results were documented for comparative analysis between patient groups, focusing on the diagnostic efficacy of grip strength, DE, DTF, and their combined application in diagnosing ICU-AW.

Results: A total of 95 patients were initially considered for inclusion in this study. Following the exclusion of 20 patients, a final cohort of 75 patients were enrolled, comprising of 32 patients (42.6%) diagnosed with ICU-AW and 43 patients (57.4%) classified as non-ICU-AW. Comparative analysis revealed that grip strength, DE, and DTF were significantly lower in the ICU-AW group (P < 0.05). Subgroup analysis specific to male patients demonstrated a noteworthy decrease in grip strength, DE, and DTF within the ICU-AW group (P < 0.05). Receiver operating characteristic curve analysis indicated statistically significant diagnostic value for ICU-AW with grip strength, DE, DTF, and grip strength and diaphragmatic ultrasound (P < 0.01). Furthermore, it was observed that the amalgamation of grip strength and diaphragmatic ultrasound significantly enhanced the diagnostic accuracy of ICU-AW in patients who are critically ill.

Conclusion: Grip strength, DE, DTF, and the combined use of grip strength with diaphragm ultrasound demonstrated diagnostic efficacy in ICU-AW. Notably, the integration of grip strength with diaphragm ultrasound exhibited a heightened capacity to enhance the diagnostic value specifically in patients diagnosed who are critically ill with ICU-AW.

Keywords: ICU acquired weakness; diaphragm thickening fraction; diaphragmatic excursion; handgrip dynamometer.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests in this work.

Figures

Figure 1
Figure 1

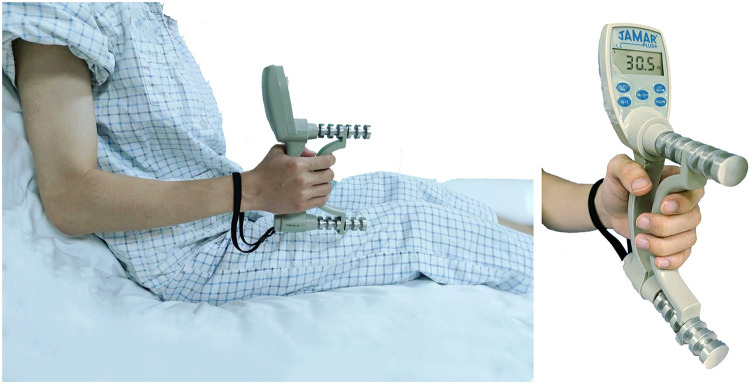

Handgrip dynamometer to assess muscle strength.
Figure 2
Figure 2

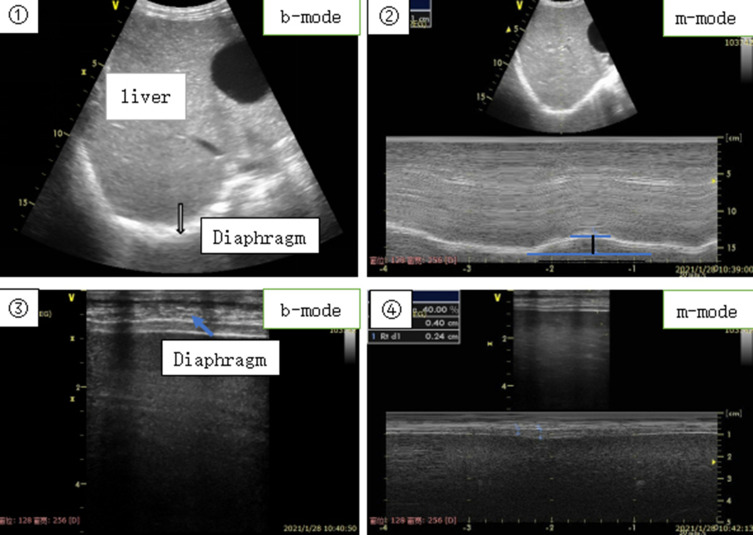

Diaphragm ultrasound measurement.
Figure 3
Figure 3

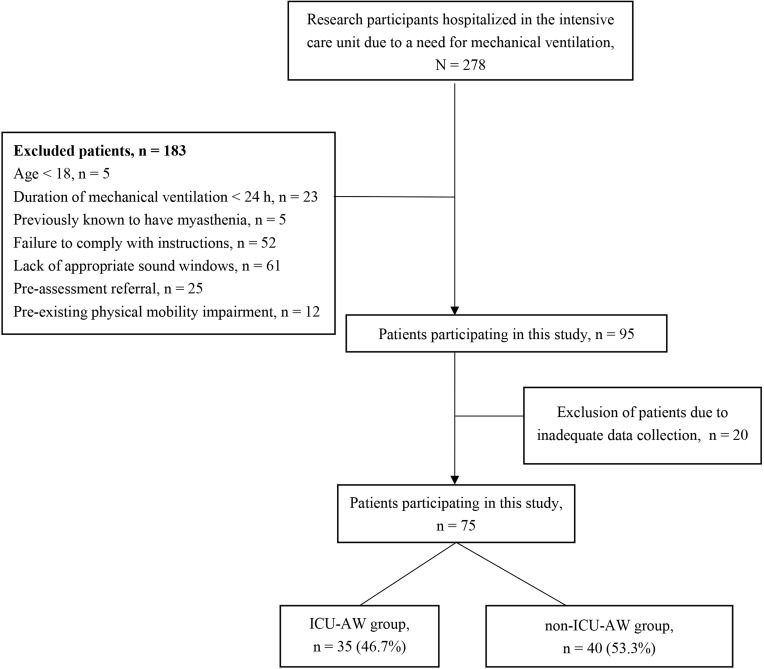

Flowchart of study selection.
Figure 4
Figure 4

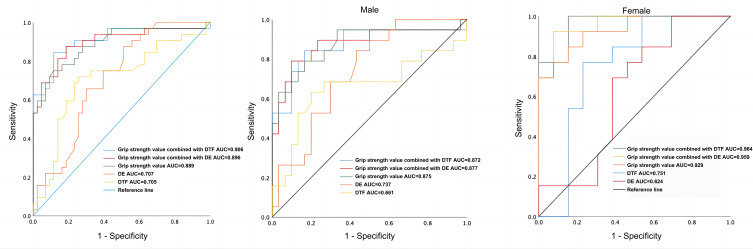

Comparison of diaphragm ultrasonography and handgrip dynamometer ROC curves for the identification of ICU-AW in patients who are mechanically ventilated.
See this image and copyright information in PMC
