. 2024 May 15;14(10):1022.
doi: 10.3390/diagnostics14101022.

Normal Values for Echocardiographic Myocardial Work in a Large Pediatric Population

Pietro Marchese  1   2 , Marco Scalese  3 , Nadia Assanta  1 , Eliana Franchi  1 , Cecilia Viacava  1 , Giuseppe Santoro  1 , Giulia Corana  1 , Alessandra Pizzuto  1 , Francesca Valeria Contini  4 , Shelby Kutty  5 , Massimiliano Cantinotti  1
Affiliations

Normal Values for Echocardiographic Myocardial Work in a Large Pediatric Population

Pietro Marchese et al. Diagnostics (Basel). .

Abstract

Background: Echocardiographic myocardial work is a new load-independent echocardiographic technique to quantify left ventricle (LV) systolic performance. Our aim was to establish normal values for echocardiographic myocardial work in a large population of healthy children.

Methods: For all the subjects 4-, 2-, and 3-chamber-view videos were stored. The following parameters were obtained by offline analysis: the global myocardial work (GMW), the global myocardial constructive work (GCW), the global myocardial wasted work (GWW), and the global myocardial work efficiency (GWE). Age, weight, height, heart rate, and body surface area (BSA) were used as independent variables in the statistical analysis.

Results: In all, 516 healthy subjects (age range, 1 day-18 years; median age, 8.2 ± 5.3 years; 55.8% male; body surface area (BSA) range, 0.16 to 2.12 m2) were included. GWI, GCW, and GWW increased with weight, height, and BSA (ρ ranging from 0.635 to 0.226, p all < 0.01); GWI and GCW positively correlated with age (ρ 0.653 and 0.507). After adjusting for BSA differences, females showed higher mean GWI (p = 0.002) and GCW values (p < 0.001), thus Z-score equations for gender have been presented.

Conclusions: We provided MW values in a large population of healthy pediatric subjects including lower ages. MW values increased with age and body size and, interestingly, were higher in females than in men. These data cover a gap in current nomograms and may serve as a baseline for the evaluation of MW analysis in children with congenital and acquired heart diseases.

Keywords: children; echocardiography; myocardial work; normal values.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
Myocardial work curves, BP = blood pressure, GLS = global longitudinal strain, GWI = global myocardial work index, GWC = global myocardial constructive work, GWW = global myocardial wasted work, and GWE = global myocardial work efficiency (GWE).
Figure 2
Figure 2

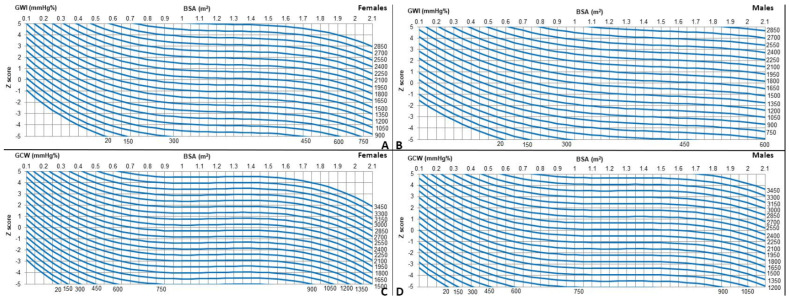

(A–D) Z-scores charts for myocardial work indices by gender.
See this image and copyright information in PMC

References

    1. Sabatino J., Borrelli N., Fraisse A., Herberg J., Karagadova E., Avesani M., Bucciarelli V., Josen M., Paredes J., Piccinelli E., et al. Abnormal myocardial work in children with Kawasaki disease. Sci. Rep. 2021;11:7974. doi: 10.1038/s41598-021-86933-5. - DOI - PMC - PubMed
    1. Sabatino J., Leo I., Strangio A., Bella S., Borrelli N., Avesani M., Josen M., Paredes J., Piccinelli E., Sirico D., et al. Echocardiographic Normal Reference Ranges for Non-invasive Myocardial Work Parameters in Pediatric Age: Results From an International Multi-Center Study. Front. Cardiovasc. Med. 2022;9:792622. doi: 10.3389/fcvm.2022.792622. - DOI - PMC - PubMed
    1. Cui C., Zheng Q., Li Y., Huang D., Hu Y., Wang Y., Liu R., Liu L., Zhang L. Reference Values of Noninvasive Myocardial Work Indices Measured by Echocardiography in Healthy Children. Front. Pediatr. 2022;10:792526. doi: 10.3389/fped.2022.792526. - DOI - PMC - PubMed
    1. Pham T.T.M., Truong V.T., Vu P.N., Tran T.X., Nguyen N.N.H., Nguyen L.P.T., Tu H.N.T., Palmer C., Tretter J.T., Levy P., et al. Echocardiographic Reference Ranges of Non-invasive Myocardial Work Indices in Children. Pediatr. Cardiol. 2022;43:82–91. doi: 10.1007/s00246-021-02695-x. - DOI - PubMed
    1. Luo X., Ge Q., Su J., Zhou N., Li P., Xiao X., Chen Y., Wang D., Ma Y., Ma L., et al. Normal ranges of non-invasive left ventricular myocardial work indices in healthy young people. Front. Pediatr. 2022;10:1000556. doi: 10.3389/fped.2022.1000556. - DOI - PMC - PubMed
