. 2024 May 16;16(10):1900.
doi: 10.3390/cancers16101900.

Prediction of Lymph Node Metastasis in T1 Colorectal Cancer Using Artificial Intelligence with Hematoxylin and Eosin-Stained Whole-Slide-Images of Endoscopic and Surgical Resection Specimens

Joo Hye Song  1 , Eun Ran Kim  2 , Yiyu Hong  3 , Insuk Sohn  3 , Soomin Ahn  4 , Seok-Hyung Kim  4 , Kee-Taek Jang  4
Affiliations

Prediction of Lymph Node Metastasis in T1 Colorectal Cancer Using Artificial Intelligence with Hematoxylin and Eosin-Stained Whole-Slide-Images of Endoscopic and Surgical Resection Specimens

Joo Hye Song et al. Cancers (Basel). .

Abstract

According to the current guidelines, additional surgery is performed for endoscopically resected specimens of early colorectal cancer (CRC) with a high risk of lymph node metastasis (LNM). However, the rate of LNM is 2.1-25.0% in cases treated endoscopically followed by surgery, indicating a high rate of unnecessary surgeries. Therefore, this study aimed to develop an artificial intelligence (AI) model using H&E-stained whole slide images (WSIs) without handcrafted features employing surgically and endoscopically resected specimens to predict LNM in T1 CRC. To validate with an independent cohort, we developed a model with four versions comprising various combinations of training and test sets using H&E-stained WSIs from endoscopically (400 patients) and surgically resected specimens (881 patients): Version 1, Train and Test: surgical specimens; Version 2, Train and Test: endoscopic and surgically resected specimens; Version 3, Train: endoscopic and surgical specimens and Test: surgical specimens; Version 4, Train: endoscopic and surgical specimens and Test: endoscopic specimens. The area under the curve (AUC) of the receiver operating characteristic curve was used to determine the accuracy of the AI model for predicting LNM with a 5-fold cross-validation in the training set. Our AI model with H&E-stained WSIs and without annotations showed good performance power with the validation of an independent cohort in a single center. The AUC of our model was 0.758-0.830 in the training set and 0.781-0.824 in the test set, higher than that of previous AI studies with only WSI. Moreover, the AI model with Version 4, which showed the highest sensitivity (92.9%), reduced unnecessary additional surgery by 14.2% more than using the current guidelines (68.3% vs. 82.5%). This revealed the feasibility of using an AI model with only H&E-stained WSIs to predict LNM in T1 CRC.

Keywords: T1 colorectal cancer; artificial intelligence; lymph node metastasis; whole slide image.

PubMed Disclaimer

Conflict of interest statement

Insuk Sohn was employed by the company Arontier Co., Ltd. The remaining authors declare no conflicts of interest.

Figures

Figure 1

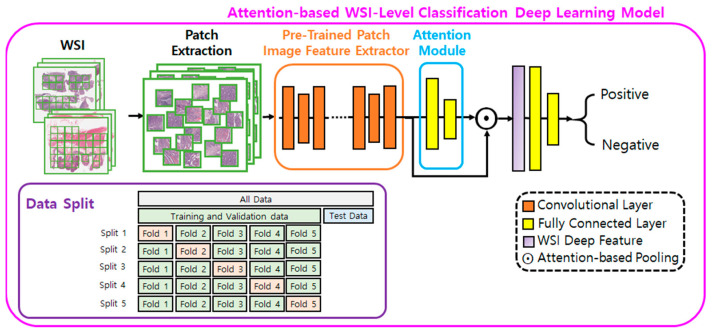

Figure 1
Pipeline of the approach for classifying lymph node metastasis. WSI, whole slide image.
Figure 2

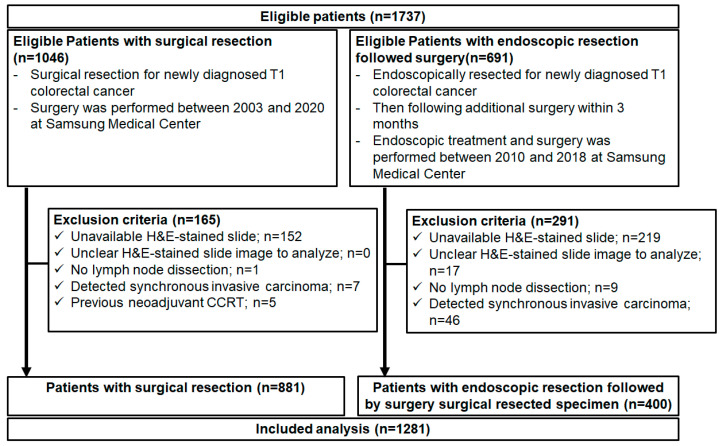

Figure 2
Flow chart of study population. CCRT, concurrent chemoradiotherapy.
Figure 3

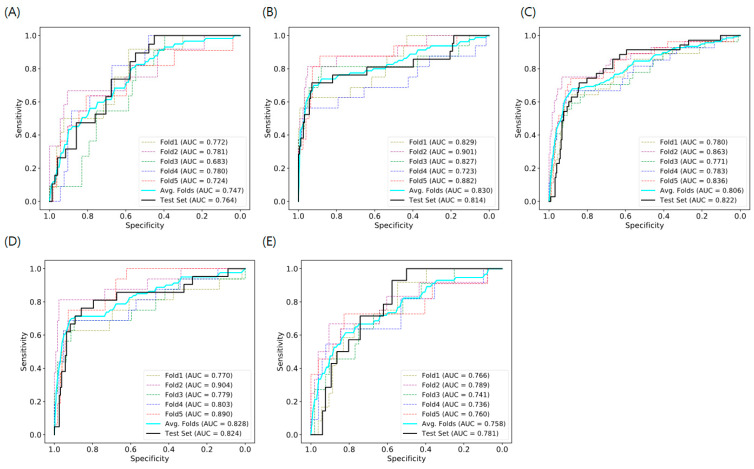

Figure 3
Area under the ROC curve for attention-based WSI-level classification deep learning model for predicting lymph node metastasis in T1 colorectal cancer. (A) Previous model, (B) Version 1, (C) Version 2, (D) Version 3, (E) Version 4 ROC, receiver operating characteristic; WSI, whole-slide image; Version 1, train and test: surgical specimen; Version 2, train and test: endoscopic and surgical specimen; Version 3, train: endoscopic and surgical specimens and test: surgical specimen; Version 4, train: endoscopic and surgical specimens and test: endoscopic specimen; AUC: area under the curve; Avg: average.
Figure 4

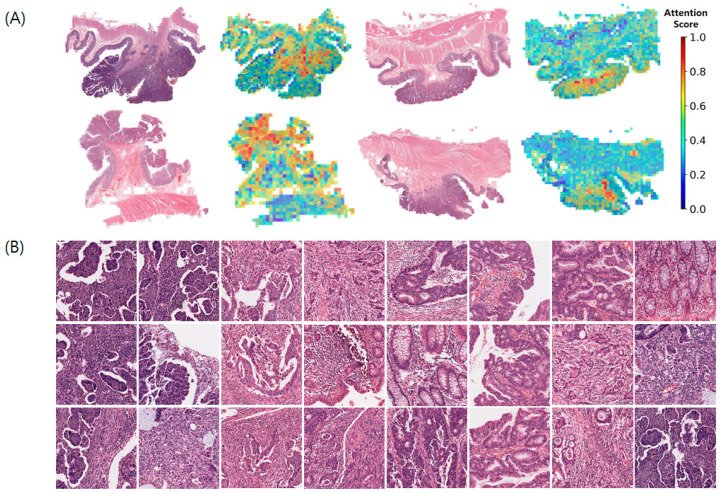

Figure 4
Attention score visualization in WSIs of positive lymph node metastasis. (A) Spatial distribution of attention scores on the WSIs, (B) Patch-images stratified by high attention scores WSIs, whole slide images.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

  • AI in Medical Imaging and Image Processing.
    Nurzynska K, Strzelecki M, Piórkowski A, Obuchowicz R. Nurzynska K, et al. J Clin Med. 2025 Jun 11;14(12):4153. doi: 10.3390/jcm14124153. J Clin Med. 2025. PMID: 40565899 Free PMC article.

References

    1. Wong M.C.S., Ding H., Wang J., Chan P.S.F., Huang J. Prevalence and risk factors of colorectal cancer in Asia. Intest. Res. 2019;17:317–329. doi: 10.5217/ir.2019.00021. - DOI - PMC - PubMed
    1. Sung H., Ferlay J., Siegel R.L., Laversanne M., Soerjomataram I., Jemal A., Bray F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021;71:209–249. doi: 10.3322/caac.21660. - DOI - PubMed
    1. Winawer S.J., Zauber A.G. The advanced adenoma as the primary target of screening. Gastrointest. Endosc. Clin. N. Am. 2002;12:1–9. doi: 10.1016/S1052-5157(03)00053-9. - DOI - PubMed
    1. Wook H.S., Jeong-Sik B. Endoscopic diagnosis and treatment of early colorectal cancer. Intest. Res. 2022;20:281–290. - PMC - PubMed
    1. Kim S.Y., Kwak M.S., Yoon S.M., Jung Y., Kim J.W., Boo S.-J., Oh E.H., Jeon S.R., Nam S.-J., Park S.-Y., et al. Korean Guidelines for Postpolypectomy Colonoscopic Surveillance: 2022 revised edition. Intest. Res. 2023;21:20–42. doi: 10.5217/ir.2022.00096. - DOI - PMC - PubMed
