. 2024 Jan-Mar;50(1):45-52.
doi: 10.12865/CHSJ.50.01.06. Epub 2024 Mar 31.

Breast MRI-the Importance of Type II and III Dynamic Curves Evaluation and Framing in BI-RADS 4C and 5 Score

Marian Răzvan Bălan  1 , Luana Corina Lascu  2   3   4 , Daniela Dumitrescu  2   3   4 , Eugen Osiac  5 , Cristiana Iulia Dumitrescu  6 , Iulia Băilescu  4 , Mădălin Cristian Moraru  1 , Suzana Măceș  2   4 , Ilona Mihaela Liliac  7 , Mihai Popescu  2   3   4
Affiliations

Breast MRI-the Importance of Type II and III Dynamic Curves Evaluation and Framing in BI-RADS 4C and 5 Score

Marian Răzvan Bălan et al. Curr Health Sci J. 2024 Jan-Mar.

Abstract

Background: Breast Magnetic Resonance Imaging (MRI) offers the highest sensitivity in detecting breast cancer among existing clinical and imaging techniques, making it a crucial component of breast imaging protocols. This study aims to investigate MRI importance in correlation with previous imaging discordant procedures performed as echography and/or mammography to evaluate characteristics and framing in high-risk BI-RADS 4C or 5 categories based on morphological features and kinetic curves of masses found in the breasts of patients from our database.

Methods: A retrospective study with related statistical analysis was performed on a group of 33 cases, selected from a total of 488 patients who underwent breast MRI examinations at SPAD Imaging International S.R.L. Craiova, between 01.01.2021 and 31.12.2023, aged between 33 and 75 years. In all patients, MRI images parameters were analysed.

Results: In 33 patients, 23 had a single lesion and 10 had multiple lesions, 9 of them in the ipsilateral breast and, as a particularity, one of them, located in the contralateral breast. In 21 of the total patients with multiple or single lesions they had type III curves, which were classified in the BI-RADS 5 category, considering both criteria-morphology and type of curve, where the other previous techniques had not mentioned an increased risk, hence revealing that the situation in a percentage of 63.63 in the case of MRI investigation proved to be clearly superior.

Conclusion: Combining both kinetic and morphologic criteria can enhance the diagnostic accuracy of MRI in breast lesion evaluation.

Keywords: BI-RADS lexicon; Breast DCE-MRI; Breast cancer; Dynamic curves.

PubMed Disclaimer

Conflict of interest statement

None to declare.

Figures

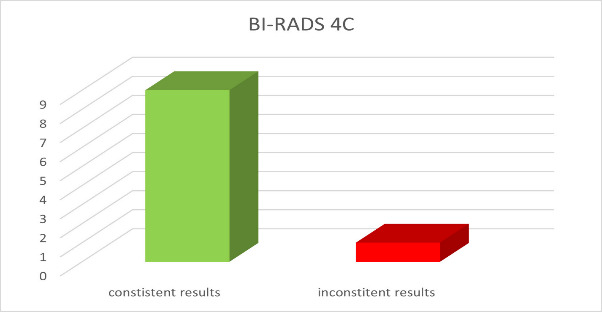

Figure 1
Figure 1
Number of cases classified as BI-RADS 4C compared to previous imaging modalities

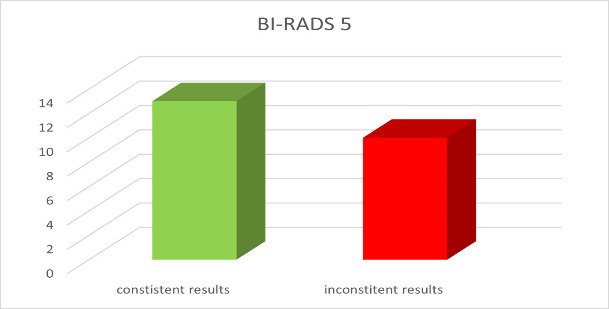

Figure 2
Figure 2
Number of cases classified as BI-RADS 5 compared to previous imaging modalities

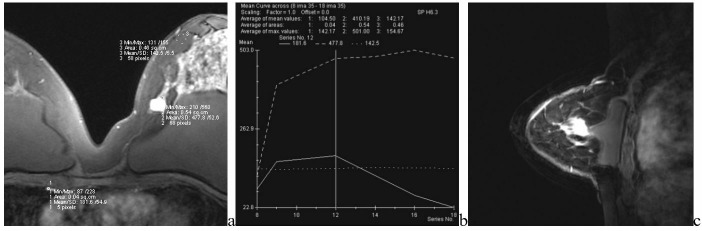

Figure 3
Figure 3
Left breast cancer. a) Axial dynamic post-contrast (DCE-MRI) image, b) Dynamic curve type III, c) Sag T1 delayed phase postcontrast

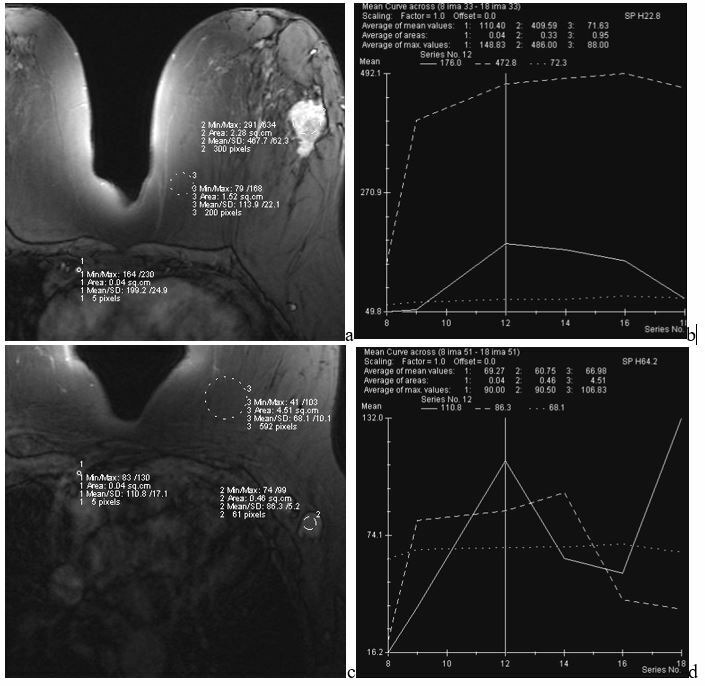

Figure 4
Figure 4
Left breast multifocal cancer with axillary nodal involvement. a) Axial dynamic contrast enhanced (DCE-MRI) image with specific multiple ROI, b) Dynamic curve type III, c) Axial dynamic post-contrast image left axillary adenopathy, d) Adenopathy dynamic curve type III.

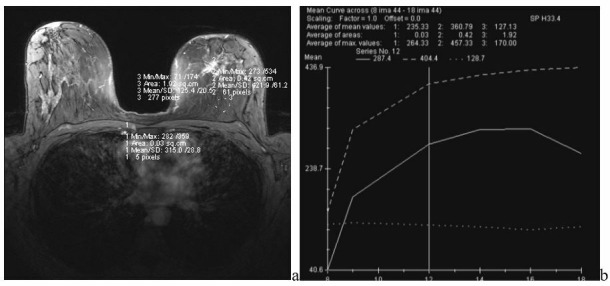

Figure 5
Figure 5
Left breast lobular cancer. a) Axial dynamic post-contrast (DCE-MRI) image, b) Dynamic curve type II.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Mann RM, Cho N, Moy L. Breast MRI: State of the Art. Radiology. 2019;292(3):520–536. - PubMed
    1. Pop CF, Stanciu-Pop C, Drisis S, Radermeker M, Vandemerckt C, Noterman D, Moreau M, Larsimont D, Nogaret JM, Veys I. The impact of breast MRI workup on tumor size assessment and surgical planning in patients with early breast cancer. Breast J. 2018;24(6):927–933. - PubMed
    1. Siegmann KC, Muller-Schimpfle M, Schick F, Remy CT, Fersis N, Ruck P, Gorriz C, Claussen CD. MR imaging-detected breast lesions: histopathologic correlation of lesion characteristics and signal intensity data. AJR Am J Roentgenol. 2002;178(6):1403–1409. - PubMed
    1. Kuhl CK, Mielcareck P, Klaschik S, Leutner C, Wardelmann E, Gieseke J, Schild HH. Dynamic breast MR imaging: are signal intensity time course data useful for differential diagnosis of enhancing lesions. Radiology. 1999;211(1):101–110. - PubMed
    1. Cheng L, Li X. Breast magnetic resonance imaging: kinetic curve assessment. Gland Surg. 2013;2(1):50–53. - PMC - PubMed
