Self-assembling 3D vessel-on-chip model with hiPSC-derived astrocytes

Abstract

Functionality of the blood-brain barrier (BBB) relies on the interaction between endothelial cells (ECs), pericytes, and astrocytes to regulate molecule transport within the central nervous system. Most experimental models for the BBB rely on freshly isolated primary brain cells. Here, we explored human induced pluripotent stem cells (hiPSCs) as a cellular source for astrocytes in a 3D vessel-on-chip (VoC) model. Self-organized microvascular networks were formed by combining hiPSC-derived ECs, human brain vascular pericytes, and hiPSC-derived astrocytes within a fibrin hydrogel. The hiPSC-ECs and pericytes showed close interactions, but, somewhat unexpectedly, addition of astrocytes disrupted microvascular network formation. However, continuous fluid perfusion or activation of cyclic AMP (cAMP) signaling rescued the vascular organization and decreased vascular permeability. Nevertheless, astrocytes did not affect the expression of proteins related to junction formation, transport, or extracellular matrix, indicating that, despite other claims, hiPSC-derived ECs do not entirely acquire a BBB-like identity in the 3D VoC model.

Keywords: BBB; blood-brain barrier; hiPSC-Astro; hiPSC-ECs; hiPSC-derived astrocytes; hiPSC-derived endothelial cells; human induced pluripotent stem cells; microfluidics; organ-on-chip; vessel-on-chip.

Graphical abstract

Figure 1

iAstros incorporated into 3D VoC model (A) Schematic of VoC protocol using hiPSC-ECs with HBVPs and pAstros or iAstros. (B) Representative immunofluorescence images of a 3D VoC triple culture containing hiPSC-ECs, HBVPs, and iAstros at day 1, 2, 4, and 6 showing hiPSC-mCherry ECs (red) and iAstros differentiated from the TUBA hiPSC line (green, TUBA-GFP). Scale bars: 250 μm. (C) Representative immunofluorescence images of microvascular networks in microfluidic chips on day 7 showing hiPSC-mCherry ECs (red). Images showing microvascular networks from a VoC double culture (hiPSC-ECs and HBVPs) or 3D VoC triple cultures including either pAstros or iAstros from two independent hiPSC lines (FLB or TUBA). Scale bars: 250 μm. (D–F) Quantification of full channel images of microvascular networks showing vascular density at endpoint day 7 showing (D), average vessel diameter (E), and average vessel length (F). Data are shown as mean ± SD. All conditions are N = 3, n = 12–18; three independent experiments with minimum of 3 microfluidic channels per experiment. One-way ANOVA with Sidak’s multiple comparison test. ^∗p < 0.05, ^∗∗p < 0.01, ^∗∗∗p < 0.001, ^∗∗∗∗p < 0.0001; ns, non-significant. See also Figures S1 and S2.

Figure 2

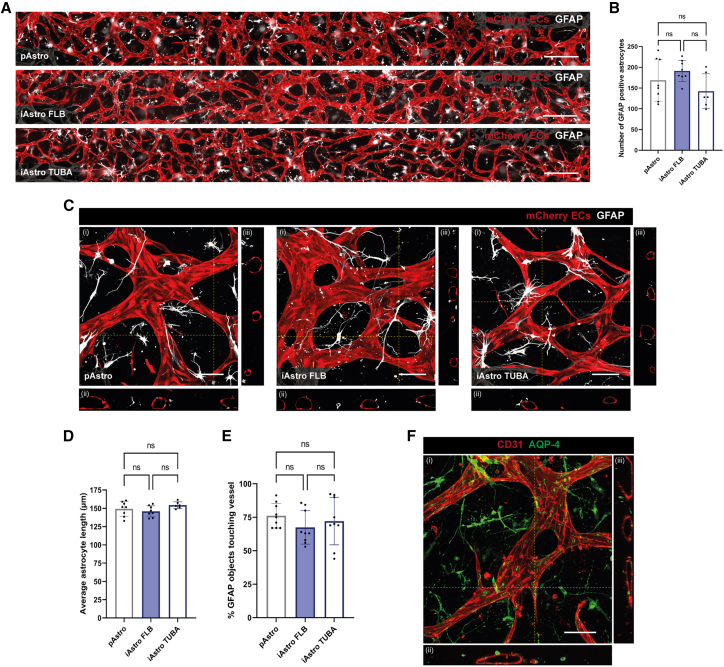

Comparable structural properties of primary and hiPSC-Astros in a 3D VoC model (A) Representative immunofluorescence images of microvascular networks in microfluidic chips on day 7 showing hiPSC-mCherry ECs (red) and astrocytes (silver; GFAP). Images showing VoC triple cultures of hiPSC-ECs with HBVPs and pAstros or iAstros from FLB or TUBA hiPSC line. Scale bars: 500 μm. (B) Quantification of astrocytes in VoC triple cultures showing number of GFAP-positive astrocytes in ±80% of full microfluidic channel. ns, non-significant. (C) Representative immunofluorescence confocal images of microvascular networks in microfluidic chips showing hiPSC-mCherry ECs (red) and astrocytes (silver; GFAP). Images displaying xyz (i), xy (ii), and yz cross-sectional perspectives (iii). Images showing VoC triple cultures of hiPSC-ECs with HBVPs and pAstros or iAstros from the FLB or TUBA hiPSC lines. Scale bars: 100 μm. (D and E) Quantification of astrocytes in VoC model showing average astrocyte length (D) and % of GFAP objects touching the microvascular network (E). Data are shown as mean ± SD. For (B) and (D) N = 3, n = 6–8; three independent experiments with a minimum of two microfluidic channels per experiment. For (E) N = 3, n = 3; three independent experiments, one microfluidic channel per experiment with three regions of interest (ROIs) per channel. One-way ANOVA with Tukey’s multiple comparison. ns, non-significant. (F) Representative immunofluorescence confocal image of microvascular network in microfluidic chips showing ECs (red; CD31) and astrocytes (green; Aqp4) in a VoC triple culture of hiPSC-ECs with HBVPs and iAstros from the FLB hiPSC line. Images displaying xyz (i), xy (ii), and yz cross-sectional perspectives (iii). Scale bar: 100 μm. See also Video S1.

Figure 3

Comparable structural properties of HBVPs in a 3D VoC model including astrocytes (A) Representative immunofluorescence confocal image of microvascular network in microfluidic chips showing ECs (red; CD31) and HBVPs (silver; NG2, green; SM22) in a VoC double culture of hiPSC-ECs with HBVPs. Images displaying xyz (i), xy (ii), and yz cross-sectional perspectives (iii). Scale bar: 100 μm. (B) Representative immunofluorescence confocal images of microvascular networks in microfluidic chips on day 7 showing hiPSC-mCherry ECs (red), HBVPs (green; SM22), and pAstros (silver, FABP7) or iAstros from the TUBA hiPSC line (silver, TUBA-GFP), surface-rendered images and color-coded images of HBVPs distance to the vessel surface. Images showing VoC double cultures (hiPSC-ECs with HBVPs) and VoC triple cultures including either pAstros or iAstros from the TUBA hiPSC line. Scale bars: 100 μm. (C–F) Quantification of HBVPs in VoC double and triple cultures containing iAstros from the TUBA hiPSC line showing number of SM22-positive objects (C), average SM22 object volume (D), normalized average SM22 intensity per object (E), and percentage of SM22 objects touching the microvascular network (F). Data are shown as mean ± SD. For (C–F) N = 3, n = 9–10; three independent experiments, one microfluidic channel per experiment with three or four ROIs per channel. Scale bars: 100 μm. One-way ANOVA with Sidak’s multiple comparison test. ^∗p < 0.05, ^∗∗∗∗p < 0.0001; ns, non-significant. See also Video S1.

Figure 4
