. 2024 May 31;10(11):e32211.
doi: 10.1016/j.heliyon.2024.e32211. eCollection 2024 Jun 15.

Electromyography signal based hand gesture classification system using Hilbert Huang transform and deep neural networks

Mary Vasanthi S  1 , Haiter Lenin A  2 , Yasser Fouad  3 , Manzoore Elahi M Soudagar  4
Affiliations

Electromyography signal based hand gesture classification system using Hilbert Huang transform and deep neural networks

Mary Vasanthi S et al. Heliyon. .

Abstract

This research aims to provide the groundwork for smartly categorizing hand movements for use with prosthetic hands. The hand motions are classified using surface electromyography (sEMG) data. In reaction to a predetermined sequence of fibre activation, every single one of our muscles contracts. They could be useful in developing control protocols for bio-control systems, such human-computer interaction and upper limb prostheses. When focusing on hand gestures, data gloves and vision-based approaches are often used. The data glove technique requires tedious and unnatural user engagement, whereas the vision-based solution requires significantly more expensive sensors. This research offered a Deep Neural Network (DNN) automated hand gesticulation recognition system based on electromyography to circumvent these restrictions. This work primarily aims to augment the concert of the hand gesture recognition system via the use of an artificial classifier. To advance the recognition system's classification accuracy, this study explains how to build models of neural networks and how to use signal processing methods. By locating the Hilbert Huang Transform (HHT), one may get the essential properties of the signal. When training a DNN classifier, these characteristics are sent into it. The investigational results reveal that the suggested technique accomplishes a better categorization rate (98.5 % vs. the alternatives).

Keywords: Deep neural network; Electromyography; Hilbert huang transform; Learning; Wavelet transform.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Figures

Fig. 1

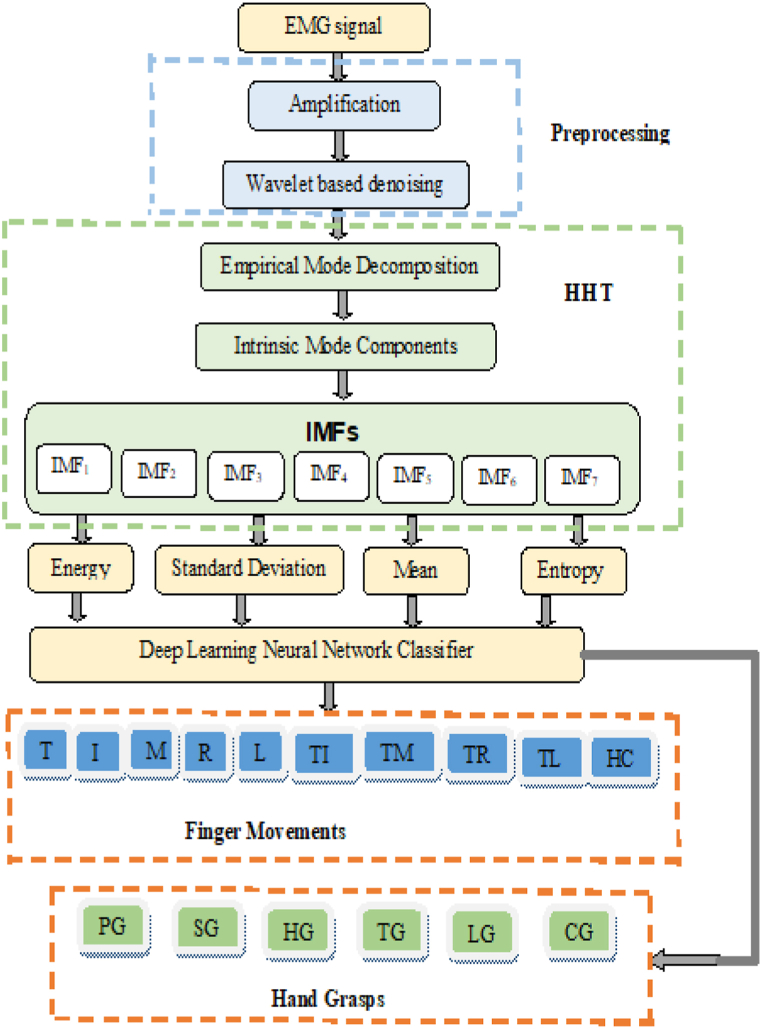

Fig. 1
Diagrammatic illustration of the suggested work.
Fig. 2

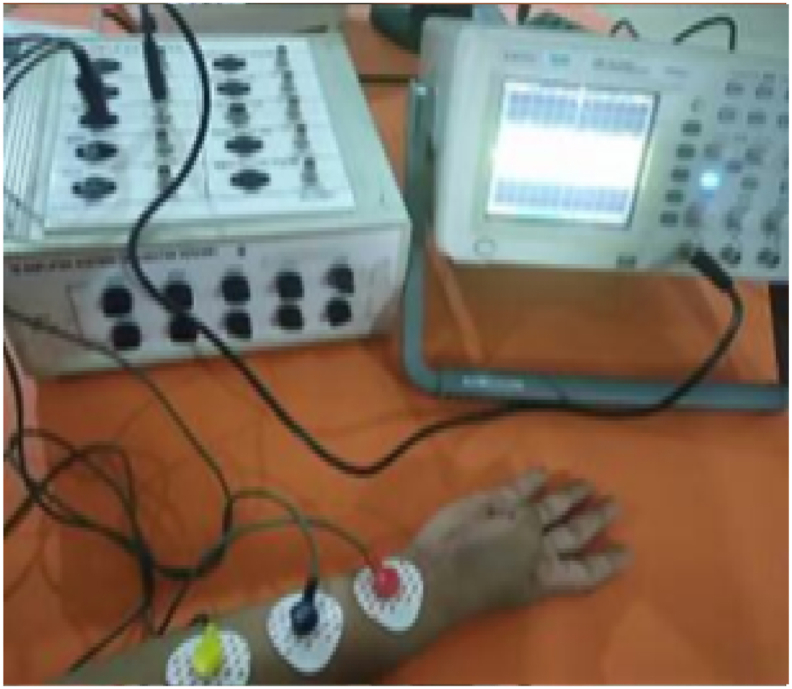

Fig. 2
EMG dataset creation.
Fig. 3
Fig. 3
Finger movements.
Fig. 4
Fig. 4
Hand grips.
Fig. 5

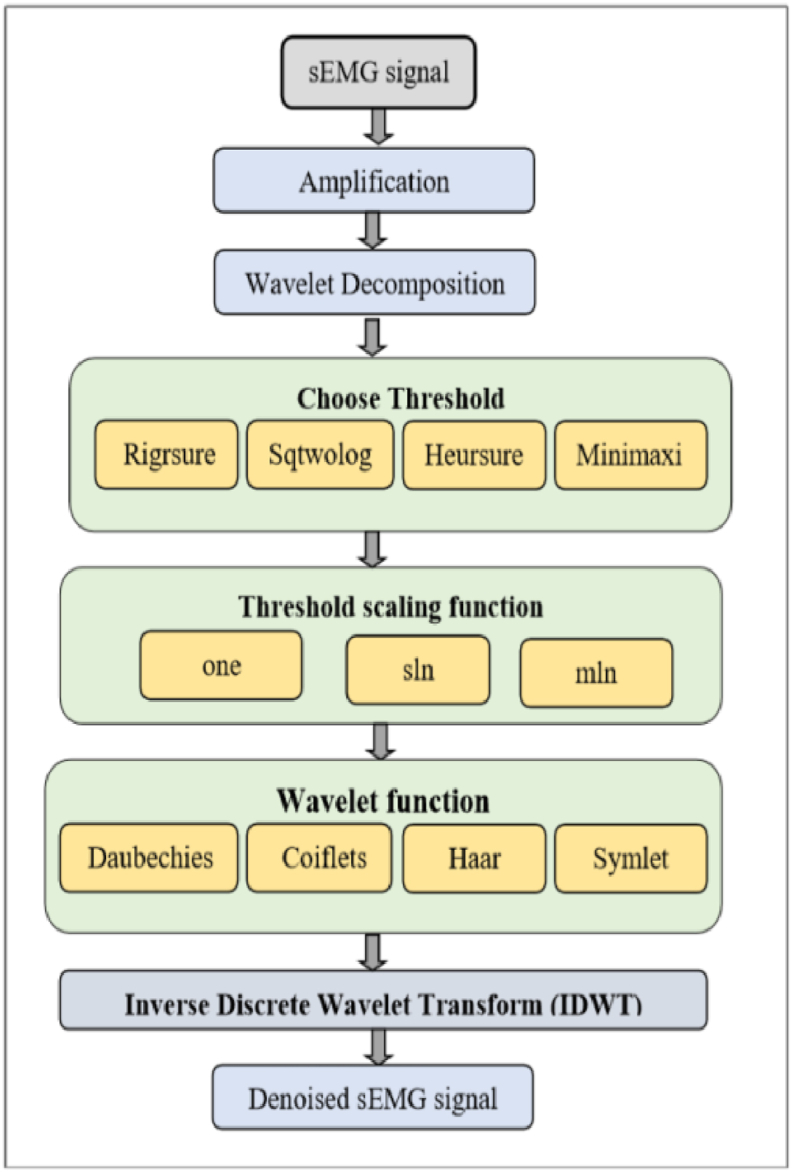

Fig. 5
Wavelet-based denoising.
Fig. 6
Fig. 6
The signal of envelopes.
Fig. 7
Fig. 7
DNN's architecture.
Fig. 8
Fig. 8
ANNweights.
Fig. 9
Fig. 9
EMG signal along with its amplification.
Fig. 10
Fig. 10
EMG signal for Hand close andIMFs resulting.
Fig. 11

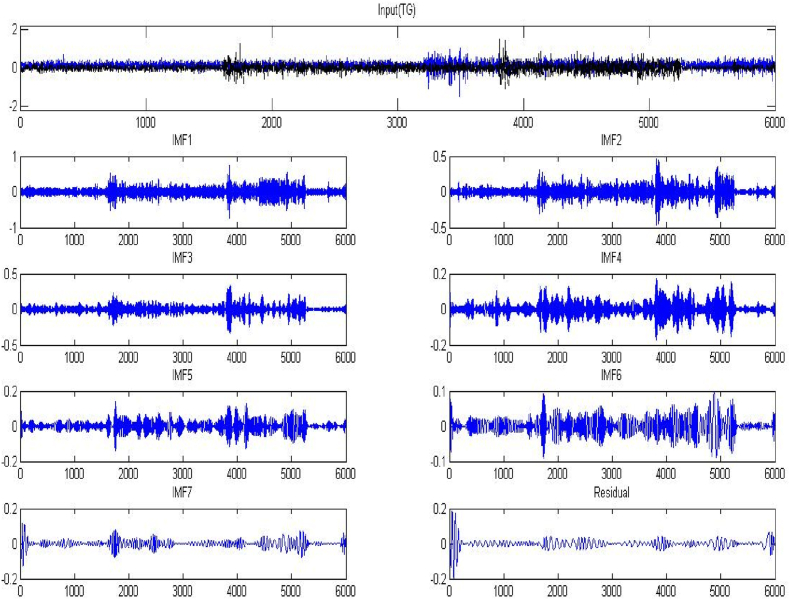

Fig. 11
EMG signal for Tip Grasp and IMFs resulting.
Fig. 12

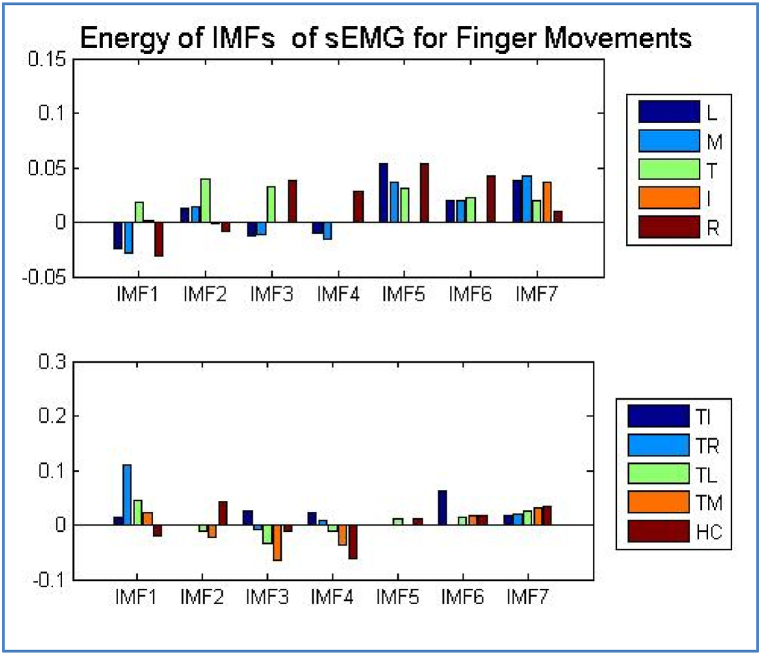

Fig. 12
Energy values of finger actions.
Fig. 13
Fig. 13
IMFs of EMGMean values for the hand grasps.
Fig. 14

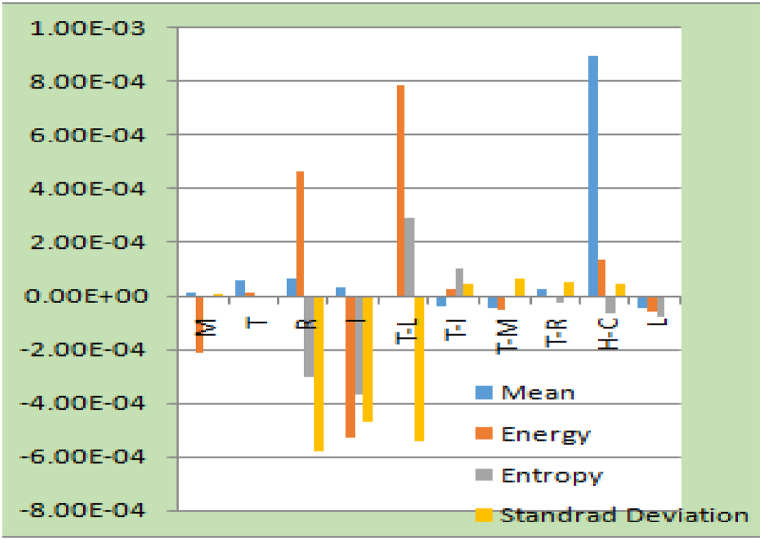

Fig. 14
Feature extraction of IMF1.
Fig. 15
Fig. 15
Feature extraction of IMF1.
See this image and copyright information in PMC

References

    1. Khusaba Rami N., Kodagoda Sarath, Takruri Maen, Dissanayake Gamini. Toward improved control of prosthetic fingers using surface electromyogram (EMG) signals. Expert Syst. Appl. 2012;39(12):10731–10738.
    1. Tsai An Chih, Hsieh Tsung-Han, Luh Jer Junn, Lin Ta-te. A comparison of upper limb motion pattern recognition using EMG signals during dynamic and isometric muscle contractions. Biomed. Signal Process Control. 2014;11:17–26.
    1. Kaniusas E. Springer Science & Business Media; 2012. Biomedical Signals and Sensors I: Linking Physiological Phenomena and Biosignals.
    1. Oskoei M.A., Hu H. Myoelectric control systems—a survey. Biomed. Signal Process Control. 2007;2(4):275–294. doi: 10.1016/j.bspc.2007.07.009. - DOI
    1. Gibson Kathleen R. Language and Cognition in Human Evolution. Cambridge University Press; Cambridge: 1995. Human gestures tools.
