. 2024 Jun 25:16:133-144.
doi: 10.2147/OAEM.S455159. eCollection 2024.

Electrocardiographic Abnormalities in Patients with Hyperkalemia: A Retrospective Study in an Emergency Department in Colombia

Jaime A Quintero  1   2   3 , Camilo A Medina  1   4   5 , Federico Penagos  3   4 , Jaime Andres Montesdeoca  3   4 , Gildardo Antonio Orozco  1   4 , Juan Saavedra-Castrillón  3   4 , Julio Diez-Sepulveda  1   3   4
Affiliations

Electrocardiographic Abnormalities in Patients with Hyperkalemia: A Retrospective Study in an Emergency Department in Colombia

Jaime A Quintero et al. Open Access Emerg Med. .

Abstract

Introduction: Hyperkalemia is a prevalent electrolyte disorder related to elevated serum potassium levels, resulting in diverse abnormal electrocardiographic findings and associated clinical signs and symptoms, often necessitating specific treatment. However, in some patients, these abnormal findings may not be present on the electrocardiogram even in elevated serum potassium levels. This study aims to identify electrocardiographic abnormalities related to the severity of hyperkalemia and the clinical outcomes in an emergency department in southwestern Colombia.

Methodology: This is a retrospective cross-sectional descriptive study. We described the electrocardiographic findings, clinical characteristics, treatment, and outcomes related to the degrees of hyperkalemia. The potential association between the severity of hyperkalemia and electrocardiographic findings was evaluated.

Results: A total of 494 patients were included. The median of the potassium level was 6.6 mEq/L. Abnormal electrocardiographic findings were reported in 61.5% of the cases. Mild and severe hyperkalemia groups reported abnormalities in 59.9% and 61.2%, respectively. The most common electrocardiography abnormalities were the peaked T wave 36.2%, followed by wide QRS 83 (16.8%). Only 1.4% of patients had adverse outcomes. The abnormal findings were registered in 61.5%. Mortality was 11.9%. The peaked T wave was the most common finding across different levels of hyperkalemia severity.

Conclusion: High serum potassium levels are related with abnormal ECG. However, patients with different degrees of hyperkalemia could not describe abnormal ECG findings. In a high proportion of patients with renal chronic disease and hyperkalemia, the abnormalities in the ECG could be minimal or absent.

Keywords: ECG; abnormalities; degree; electrocardiographic; hyperkalemia; outcomes.

PubMed Disclaimer

Conflict of interest statement

The authors report no conflicts of interest in this work.

Figures

Figure 1
Figure 1

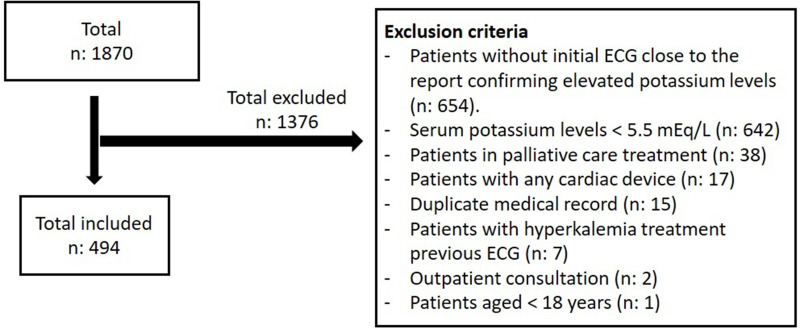

Flowchart.
Figure 2
Figure 2

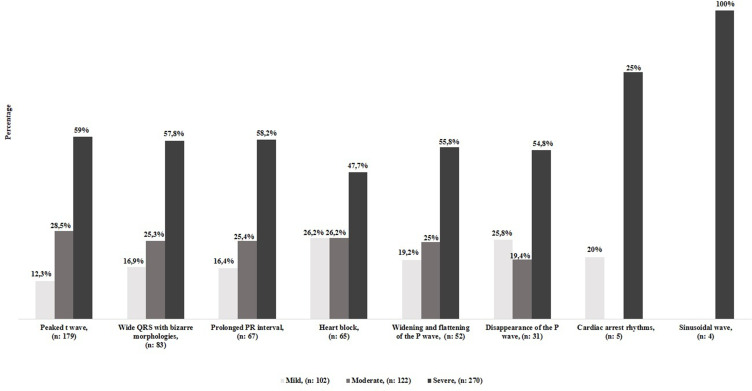

ECG findings and degrees of hyperkalemia.
Figure 3
Figure 3

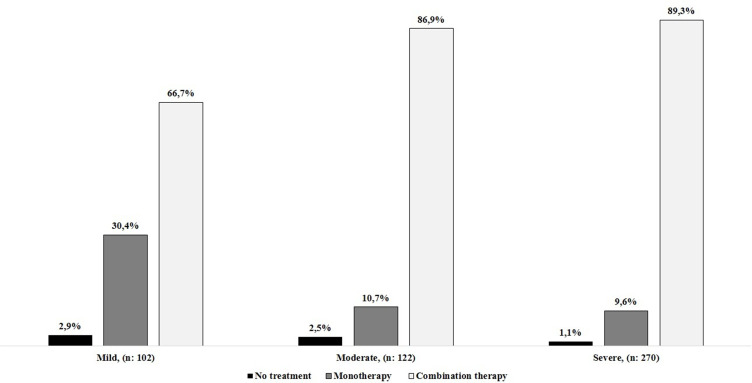

Treatment.
