Special Issue "Design, Synthesis and Applications of Macroporous, Mesoporous, and Microporous Materials"

Abstract

The intention of this Special Issue was to highlight the importance of the design, synthesis, and applications of macro-, meso-, and microporous materials [...].

Figure 1

Potential collaboration between theoretical and experimental scientists. Reprinted with permission from ref. [2]. https://creativecommons.org/licenses/by/4.0/ by Nature Publishing Group. URL (accessed on 30 May 2024). Copyright 2020 by the Nature Publishing Group. Acknowledgment is given to the Nature Publishing Group (Berlin, Germany).

Figure 2

Mechanism of a porous multifunctional ceramic foam. Reprinted with permission from ref. [11]. This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence by Royal Society of Chemistry. Copyright 2024 by Royal Society of Chemistry. Acknowledgement is given to RSC Adv.

Figure 3

Proposed forming process of the flowerlike Y zeolite. Reprinted with permission from reference [18]. Copyright 2018 by American Chemical Society. Acknowledgment is given to American Chemical Society. According to Du et al. [18], during the initial stage, a high Na⁺ ion concentration in the system contributes to forming smaller zeolite particles by limiting the polymerization extent. Primary nanosized zeolite crystals are therefore formed at that stage (a–c). At the same time, due to the instability in the hydrothermal synthesis system, the dissociative nanocrystals attract each other and form loose aggregates by self-assembly (c,d). The inner nanocrystals are difficult to grow because of the confined spaces, while the nanocrystals outer can further grow epitaxially and form the oriented “petals” (d,e).

Figure 4

Desilication process (top–down) approach involves post-synthesis modifications to introduce secondary porosity. Reprinted with permission from ref. [19]. Copyright 2019 by American Chemical Society. Acknowledgment is given to American Chemical Society.

Figure 5

(a) N₂ adsorption–desorption isotherms and (b) pore size distribution of SiOC-DC materials pyrolyzed at different temperatures after Cl₂ etching. FC11 means that the pyrolysis process was performed at 1100 °C, FC12 at 1200, FC13 at 1300, and F14C at 1400 °C, respectively. Reproduced with permission from M.A. Mazo [44]. Published by MDPI (Basel, Switzerland), 2023.

Figure 6

(a) GCD curves of SiOC–DC materials pyrolyzed at different temperatures after Cl₂ etching at a current density of 1 Ag⁻¹, (b) GCD curves for the F11C sample, (c) C_s values, and (d) Ragone plots, respectively. FC11 means that the pyrolysis process was performed at 1100 °C, FC12 at 1200, FC13 at 1300, and F14C at 1400 °C, respectively. Reproduced with permission from M.A. Mazo [44]. Published by MDPI, 2023.

Figure 7

Partial classification of POPs. Reproduced with permission from L. Shao [49]. Published by MDPI, 2023.

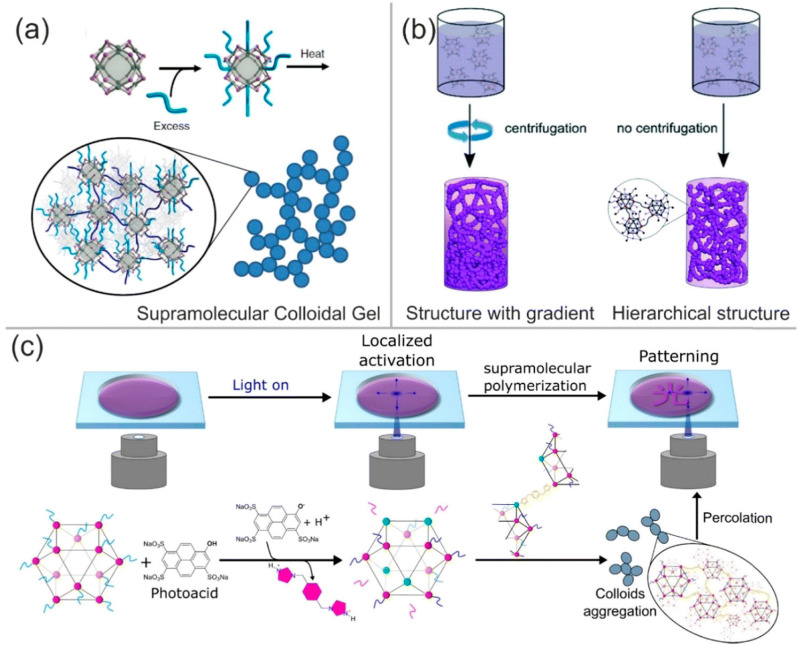

Figure 8

Overview of different design strategies for the formation of MOGs based on crosslinked metal–organic polyhedra. Reprinted with permission from ref. [81]. Copyright 2022 by Royal Soc. Chem. Acknowledgement is given to RSC Adv. In turn, the graph contains figures of the references [78,79,80]. (a) Formation of a supramolecular colloidal gel by attachment of excess ditopic linker to the MOP and its removal, which initiates crosslinking of the MOPs. Reprinted without any modification from ref. [78] with permission. Canonical URL. This article is licensed under https://creativecommons.org/licenses/by/4.0/ (accessed on 30 May 2024) Copyright 2018, Springer Nature. Acknowledgement is given to Springer. (b) Preparation of a crosslinked MOP-based gel with a gradient. Reproduced with permission without any modification from reference [79]. This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. Copyright 2019 by Royal Society of Chemistry. Acknowledgement is given to RSC Adv. (c) Picture of the formation of a crosslinked MOP gel by localized conversion through deprotonation of a photoacid. Reprinted with permission without any modification from ref [80]. This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. Copyright 2021 by American Chemical Society. Acknowledgement is given to the American Chemical Society.
