Validation of a commercially available CAD-system for lung nodule detection and characterization using CT-scans

Abstract

Objectives: This study aims to externally validate a commercially available Computer-Aided Detection (CAD)-system for the automatic detection and characterization of solid, part-solid, and ground-glass lung nodules (LN) on CT scans.

Methods: This retrospective study encompasses 263 chest CT scans performed between January 2020 and December 2021 at a Dutch university hospital. All scans were read by a radiologist (R1) and compared with the initial radiology report. Conflicting scans were assessed by an adjudicating radiologist (R2). All scans were also processed by CAD. The standalone performance of CAD in terms of sensitivity and false-positive (FP)-rate for detection was calculated together with the sensitivity for characterization, including texture, calcification, speculation, and location. The R1's detection sensitivity was also assessed.

Results: A total of 183 true nodules were identified in 121 nodule-containing scans (142 non-nodule-containing scans), of which R1 identified 165/183 (90.2%). CAD detected 149 nodules, of which 12 were not identified by R1, achieving a sensitivity of 149/183 (81.4%) with an FP-rate of 49/121 (0.405). CAD's detection sensitivity for solid, part-solid, and ground-glass LNs was 82/94 (87.2%), 42/47 (89.4%), and 25/42 (59.5%), respectively. The classification accuracy for solid, part-solid, and ground-glass LNs was 81/82 (98.8%), 16/42 (38.1%), and 18/25 (72.0%), respectively. Additionally, CAD demonstrated overall classification accuracies of 137/149 (91.9%), 123/149 (82.6%), and 141/149 (94.6%) for calcification, spiculation, and location, respectively.

Conclusions: Although the overall detection rate of this system slightly lags behind that of a radiologist, CAD is capable of detecting different LNs and thereby has the potential to enhance a reader's detection rate. While promising characterization performances are obtained, the tool's performance in terms of texture classification remains a subject of concern.

Clinical relevance statement: Numerous lung nodule computer-aided detection-systems are commercially available, with some of them solely being externally validated based on their detection performance on solid nodules. We encourage researchers to assess performances by incorporating all relevant characteristics, including part-solid and ground-glass nodules.

Key points: Few computer-aided detection (CAD) systems are externally validated for automatic detection and characterization of lung nodules. A detection sensitivity of 81.4% and an overall texture classification sensitivity of 77.2% were measured utilizing CAD. CAD has the potential to increase single reader detection rate, however, improvement in texture classification is required.

Keywords: Computer-assisted detection; Early detection of cancer; Lung; Lung cancer; Validation study.

Fig. 1

Flowchart of the workflow: All CT scan reports of scans acquired between January 2020 and December 2021 were screened, based on the inclusion and exclusion criteria and case stratification. All scans were included till satisfactory of the case stratification as shown in Table S1 of the Supplementary Material. A total of 263 scans were included, with 150 scans reporting no nodules and 113 scans mentioning nodules. Thereafter the included scans were processed by the AI-based CAD and read by the first reader. The first reader was blinded to the report and was tasked to annotate nodules and assign their characteristics including texture, presence of calcification/spiculation and location. These annotations were compared with the radiology reports. In 230 scans the annotations reconciled the radiology reports while 33 cases exhibited discrepancies. A second radiologist reviewed all 33 cases using the radiology report and the first reader’s annotations. Eighteen of the disagreement scans turn out to be nodule-containing scans while 15 are non-nodule-containing scans. Neither reader had access to the CAD’s output during this process

Fig. 2

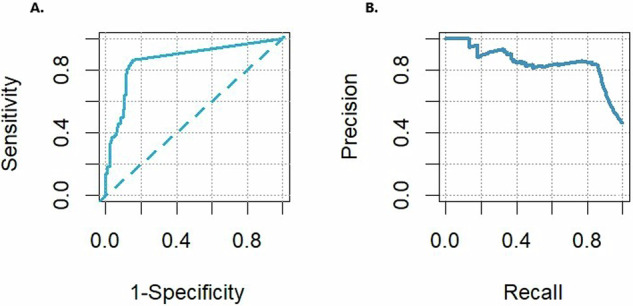

A Receiver operating characteristics curve and (B) Precision recall curve: on the left (A), the ROC curve of the CAD system is depicted, the AUC-ROC is equal to 0.865 (CI:0.837–0.892). On the right (B), the PR curve of the concerned system is shown, the AUC-PR is equal to 0.844. Note that sensitivity is also known as recall

Fig. 3

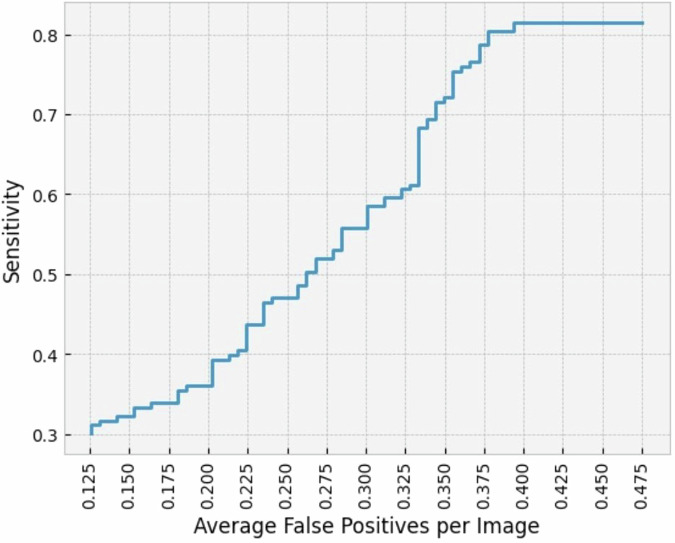

Free response operating characteristic plot: Average false positive rate on the x-axis and the corresponding sensitivity on the y-axis

Fig. 4

Bland-Altman plot for diameter: The Bland-Altman plot illustrates the agreement between the ground truth and predicted diameter. The mean of the differences (bias) and the limits of agreement (LoA), along with their 95%CI, are depicted. The mean difference between the two values is 0.47 mm (CI: 0.27 mm–0.68 mm). The bias is represented by a blue area, with a dashed line indicating the point estimate of the bias and a dotted line representing the corresponding 95%CI. The upper LoA is 2.90 mm (CI: 2.56 mm–3.25 mm). The upper LoA is illustrated by a green area, with a dashed line indicating the point estimate and a dotted line representing the 95%CI. The lower LoA is -1.95 mm (CI: -2.30 mm to -1.61 mm). The lower LoA is depicted by a red area, with a dashed line indicating the point estimate and a dotted line representing the 95%CI

Fig. 5

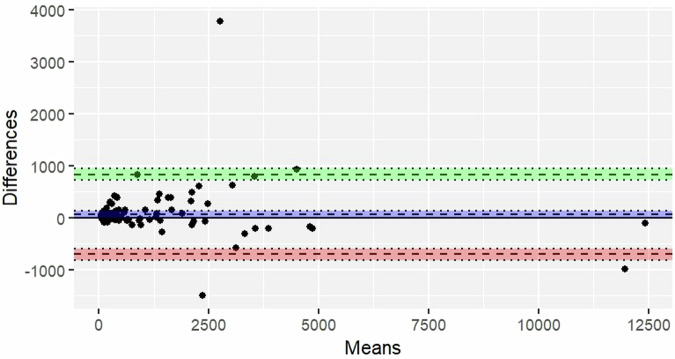

Bland-Altman plot for volume: The Bland-Altman plot illustrates the agreement between the ground truth and predicted volume. The mean of the differences (bias) and the limits of agreement (LoA), along with their 95% confidence intervals (CI), are depicted. The mean difference between the two values is 61.8 mm³ (CI: -1.68 mm³–125 mm³). The bias is represented by a blue area, with a dashed line indicating the point estimate of the bias and a dotted line representing the corresponding 95%CI. The upper LoA is 830 mm³ (CI: 722 mm³–939 mm³). The upper LoA is illustrated by a green area, with a dashed line indicating the point estimate and a dotted line representing the 95%CI. The lower LoA is -707 mm³ (CI: -815 mm³ to -598 mm³). The lower LoA is depicted by a red area, with a dashed line indicating the point estimate and a dotted line representing the 95%CI

Fig. 6

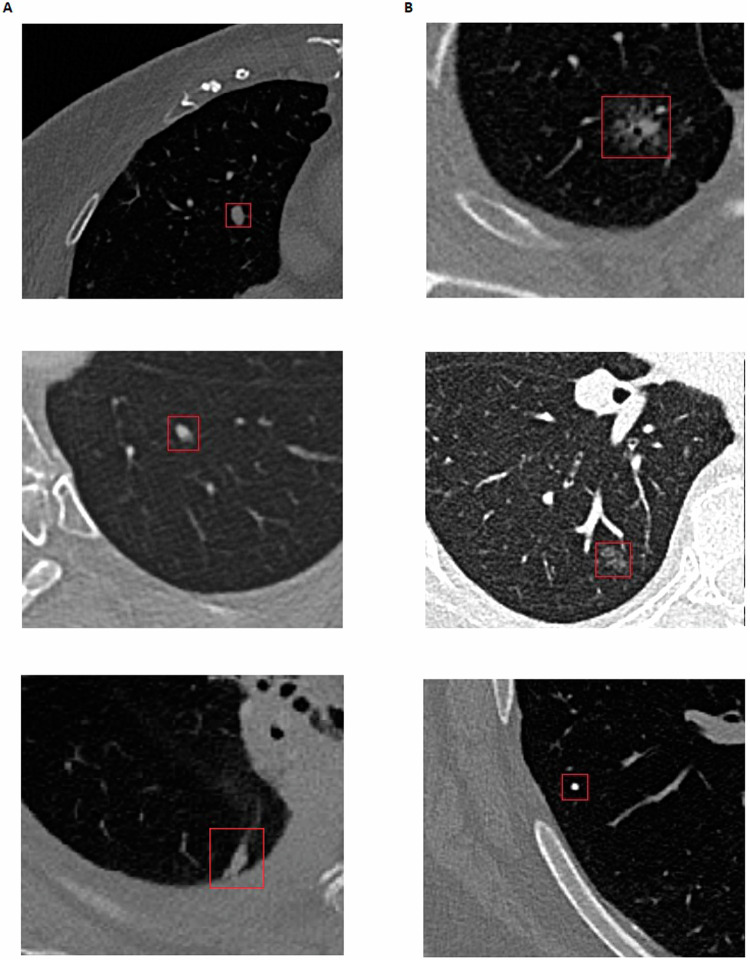

Examples of FP and FN findings: On the left (A), three examples of false positives (FP) are depicted. According to our reviewing radiologists, the top one represents an obvious blood vessel in the middle lobe; the middle CT scan contains slight motion artefacts, likely resulting in the incorrect flagging of a blood vessel in the left lower lobe; the bottom one is a perifissural lymph node. On the right (B), three false negatives (FN) are shown, these were missed by the CAD-system. The top image shows a part-solid nodule in the right lower lobe; the middle image displays a ground-glass nodule, also located in the right lower lobe; the bottom image features a subtle, calcified solid nodule situated in the right lower lobe
