. 2024 Aug 7;21(1):137.
doi: 10.1186/s12984-024-01435-5.

Neuromuscular conditions in post-stroke ankle-foot dysfunction reflected by surface electromyography

Ying Xu  1   2 , Juan Wang  2 , Shujia Wang  2 , Jinping Li  2 , Ying Hou  3 , Aisong Guo  4
Affiliations

Neuromuscular conditions in post-stroke ankle-foot dysfunction reflected by surface electromyography

Ying Xu et al. J Neuroeng Rehabil. .

Abstract

Background: Rating scales and linear indices of surface electromyography (sEMG) cannot quantify all neuromuscular conditions associated with ankle-foot dysfunction in hemiplegic patients. This study aimed to reveal potential neuromuscular conditions of ankle-foot dysfunction in hemiplegic patients by nonlinear network indices of sEMG.

Methods: Fourteen male patients with hemiplegia and 10 age- and sex-matched healthy male adults were recruited and tested in static standing position. The characteristics of the root mean square (RMS), median frequency (MF), and three nonlinear indices, the clustering coefficient (C), the average shortest path length (L), and the degree centrality (DC), of eight groups of muscles in bilateral calves were observed.

Results: Compared to those of the control group, the RMS of the medial gastrocnemius (MG), flexor digitorum longus (FDL), and extensor digitorum longus (EDL) on the affected side were significantly lower (P < 0.05), and the RMS of the tibial anterior (TA) and EDL on the unaffected side were significantly higher (P < 0.05). The MF of the EDL on the affected side was significantly higher than that on the control side (P < 0.05). The C of the unaffected side was significantly higher than that of the control group, whereas the L was lower (P < 0.05). Compared to those of the control group, the DC of the TA, EDL, and soleus (SOL) on the unaffected sides were higher (P < 0.05), and the DC of the MG on the affected sides was lower (P < 0.05).

Conclusion: The change trends and clinical significance of these three network indices, including C, L, and DC, are not in line with those of the traditional linear indices, the RMS and the MF. The C and L may reflect the degree of synchronous activation of muscles during a certain motor task. The DC might be able to quantitatively assess the degree of muscle involvement and reflect the degree of involvement of a single muscle. Linear and nonlinear indices may reveal more neuromuscular conditions in hemiplegic ankle-foot dysfunction from different aspects.

Trial registration: ChiCTR2100055090.

Keywords: Electromyography; Lower extremity; Neuromuscular manifestations; Stroke.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

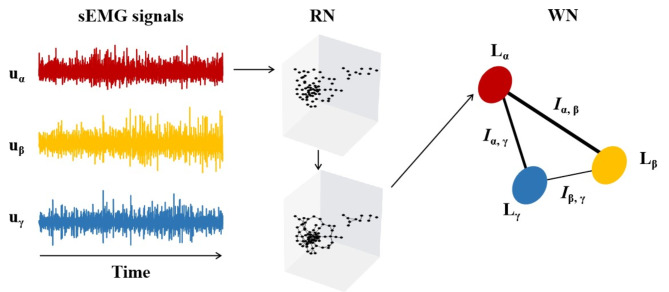

Schematic of the WN construction
See this image and copyright information in PMC

References

    1. Jönsson A, Lindgren I, Delavaran H, Norrving B, Lindgren A. Falls after Stroke: a follow-up after ten years in Lund Stroke Register. J Stroke Cerebrovasc Diseases: Official J Natl Stroke Association. 2021;30(6):105770.10.1016/j.jstrokecerebrovasdis.2021.105770 - DOI - PubMed
    1. Taylor-Piliae R, Hoke T, Hepworth J, Latt L, Najafi B. Coull BJAopm, rehabilitation: Effect of Tai Chi on physical function, fall rates and quality of life among older stroke survivors. 2014;95(5):816–24. - PubMed
    1. Belda-Lois J, Mena-del Horno S, Bermejo-Bosch I, Moreno J, Pons J, Farina D, Iosa M, Molinari M, Tamburella F, Ramos A et al. Rehabilitation of gait after stroke: a review towards a top-down approach. 2011;8:66. - PMC - PubMed
    1. Lin P, Yang Y, Cheng S. Wang RJAopm, rehabilitation: the relation between ankle impairments and gait velocity and symmetry in people with stroke. 2006;87(4):562–8. - PubMed
    1. Thibaut A, Chatelle C, Ziegler E, Bruno M, Laureys S. Gosseries OJBi: Spasticity after stroke: physiology, assessment and treatment. 2013;27(10):1093–105. - PubMed
