Effects of exposure length, cortical and trabecular bone contact areas on primary stability of infrazygomatic crest mini-screws at different insertion angles

Bingran Du  1 , Yuan Lin  1 , Mohan Ji  2 , Qiaohua Yang  3 , Jiang Jiang  4 , Fei Wang  4   5 , Xiaoyi Wang  6 , Jinchuan Tan  4 , Rui Jia  4   7 , Jianyi Li  8
Affiliations

Effects of exposure length, cortical and trabecular bone contact areas on primary stability of infrazygomatic crest mini-screws at different insertion angles

Bingran Du et al. BMC Oral Health. .

Abstract

Background: The infrazygomatic crest mini-screw has been widely used, but the biomechanical performance of mini-screws at different insertion angles is still uncertain. The aim of this study was to analyse the primary stability of infrazygomatic crest mini-screws at different angles and to explore the effects of the exposure length (EL), screw-cortical bone contact area (SCA), and screw-trabecular bone contact area (STA) on this primary stability.

Methods: Ninety synthetic bones were assigned to nine groups to insert mini-screws at the cross-combined angles in the occlusogingival and mesiodistal directions. SCA, STA, EL, and lateral pull-out strength (LPS) were measured, and their relationships were analysed. Twelve mini-screws were then inserted at the optimal and poor angulations into the maxillae from six fresh cadaver heads, and the same biomechanical metrics were measured for validation.

Results: In the synthetic-bone test, the LPS, SCA, STA, and EL had significant correlations with the angle in the occlusogingival direction (rLPS = 0.886, rSCA = -0.946, rSTA = 0.911, and rEL= -0.731; all P < 0.001). In the cadaver-validation test, significant differences were noted in the LPS (P = 0.011), SCA (P = 0.020), STA (P = 0.004), and EL (P = 0.001) between the poor and optimal angulations in the occlusogingival direction. The STA had positive correlations with LPS (rs = 0.245 [synthetic-bone test] and r = 0.720 [cadaver-validation test]; both P < 0.05).

Conclusions: The primary stability of the infrazygomatic crest mini-screw was correlated with occlusogingival angulations. The STA significantly affected the primary stability of the infrazygomatic crest mini-screw, but the SCA and EL did not.

Keywords: Bone; Insertion angles; Mini-screws; Stability.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

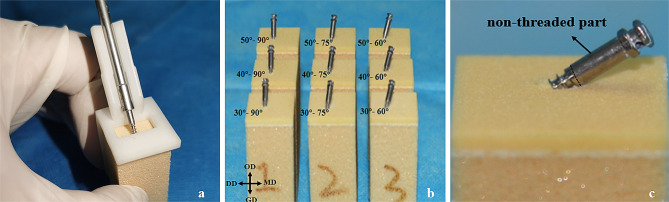

The insertion of the infrazygomatic crest mini-screw. (a) Customised guide plate for mini-screw insertion. (b) Nine groups with different combinations of the occlusogingival and mesiodistal angles. (c) The mini-screw was inserted until the beginning of the non-threaded part contacted the bone surface. MD mesial direction; DD distal direction; GD gingival direction; OD occlusal direction
Fig. 2
Fig. 2
Measurement of the actual insertion angle of the mini-screw. (a) The 3D models obtained using SmartScan. (b) Measurement of the actual insertion angle of the mini-screw. Angle MD actual insertion angle of the mini-screw in the mesiodistal direction; Angle OG actual insertion angle of the mini-screw in the occlusogingival direction; Line MD the projection of the insertion path on the mesiodistal plane (MDP); Line OG the projection of the insertion path on the occlusogingival plane (OGP)
Fig. 3
Fig. 3

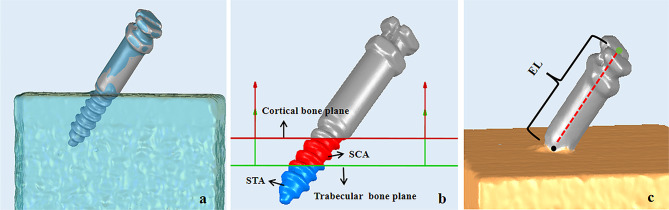

Measurement of the SCA, STA, and EL of the mini-screw. (a) The rendering of the two models after registration. blue model, the 3D model of screw-bone block; grey model, the 3D model of the mini-screw. (b) Measurement of the SCA and STA; blue area, STA; red area, SCA. (c) Measurement of EL; black point, the insertion site; green point, the apex of the mini-screw cap. SCA screw-cortical bone contact area; STA screw-trabecular bone contact area; EL exposure length
Fig. 4
Fig. 4
Lateral pull-out testing for the infrazygomatic crest mini-screw. (a) The mechanical testing machine for testing. (b) The pull-out grip and bone fixing device. (c) The procedure of lateral pull-out testing. MD mesial direction; DD distal direction; GD gingival direction; OD occlusal direction
Fig. 5
Fig. 5
The digital model of screw-maxilla specimen. (a) Reconstruction of the maxilla specimen based on µCT images. (b) The insertion of mini-screws with the help of a guide plate (white model). (c) The scanning model of screw-maxilla specimen
Fig. 6
Fig. 6
An image of lateral pull-out testing. MD mesial direction; DD distal direction; GD gingival direction; OD occlusal direction
Fig. 7
Fig. 7

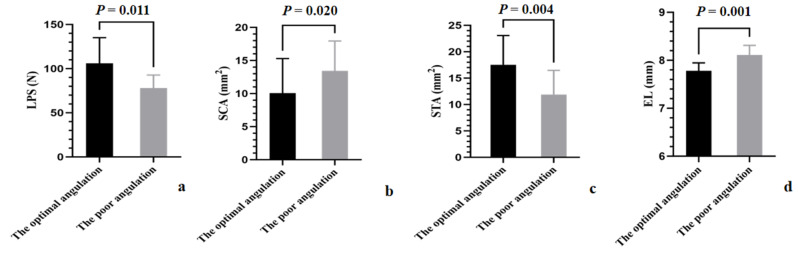

The differences between the optimal and poor angulations in cadaver-validation testing. (a) The difference in the LPS. (b) The difference in the SCA. (c) The difference in the STA. (d) The difference in the EL. LPS lateral pull-out strength; SCA screw-cortical bone contact area; STA screw-trabecular bone contact area; EL exposure length
