. 2024 Aug 3;14(15):1683.
doi: 10.3390/diagnostics14151683.

Three-Dimensional Analysis of the Maxillary Sinuses in Ancient Crania Dated to the V-VI Centuries BCE from Opi (Italy): Volumetric Measurements in Ancient Skulls from the Necropolis of Opi, Abruzzi, Italy

Felice Festa  1 , Ruggero D'Anastasio  2 , Stefano Benazzi  3 , Monica Macrì  1
Affiliations

Three-Dimensional Analysis of the Maxillary Sinuses in Ancient Crania Dated to the V-VI Centuries BCE from Opi (Italy): Volumetric Measurements in Ancient Skulls from the Necropolis of Opi, Abruzzi, Italy

Felice Festa et al. Diagnostics (Basel). .

Abstract

Cone beam computed tomography (CBCT) can provide precise information about complex anatomical structures as it is characterised by rapid volumetric image acquisition with high resolution. The aim of this study was to provide measurements for 20 ancient skulls of the Samnite people found in the necropolis of Opi, a small and isolated mountain village in Abruzzo, a region in central Italy. All the images (left and right) of the 20 ancient skulls from Opi were acquired. All the data are the property of the Department of Innovative Technologies in Medicine and Dentistry of G. D'Annunzio University, Chieti, and different parameters (area and volume) were measured and evaluated. The mean and standard deviation of the facial measurements were also calculated. All the data were subjected to statistical analysis. CBCT scan data of 20 fossil skulls did not show significant values regarding the MS area and the volume between the right and left sides. In the ancient skulls, no difference was found between the right and left sides.

Keywords: bizygomatic width; facial height; maxillary pneumatisation; maxillary sinus; maxillary sinus size; maxillary sinus volume; palatal length; upper airway.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
Geolocalisation (in red) of Opi (Aq) in Italy.
Figure 2
Figure 2

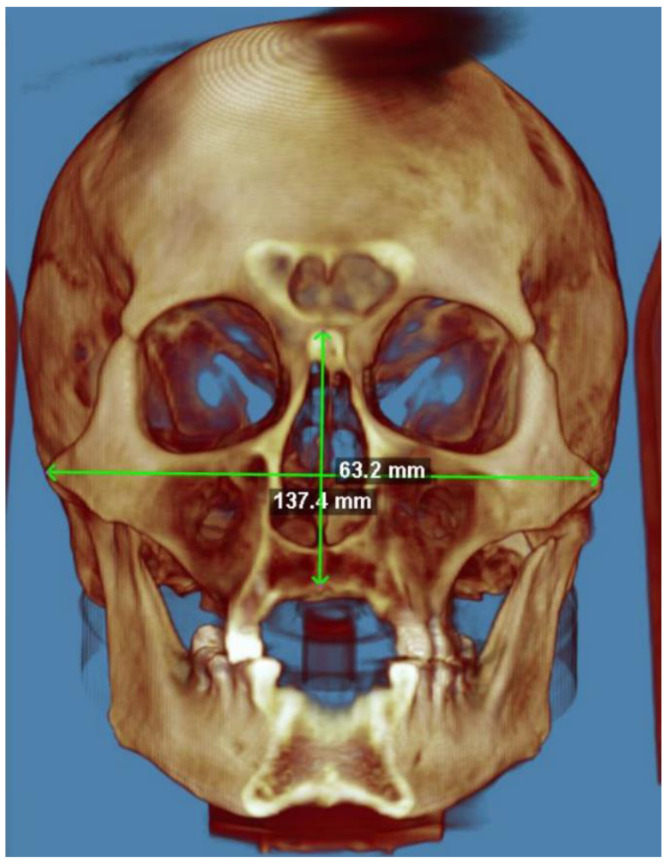

Upper facial height and bizygomatic width.
Figure 3
Figure 3

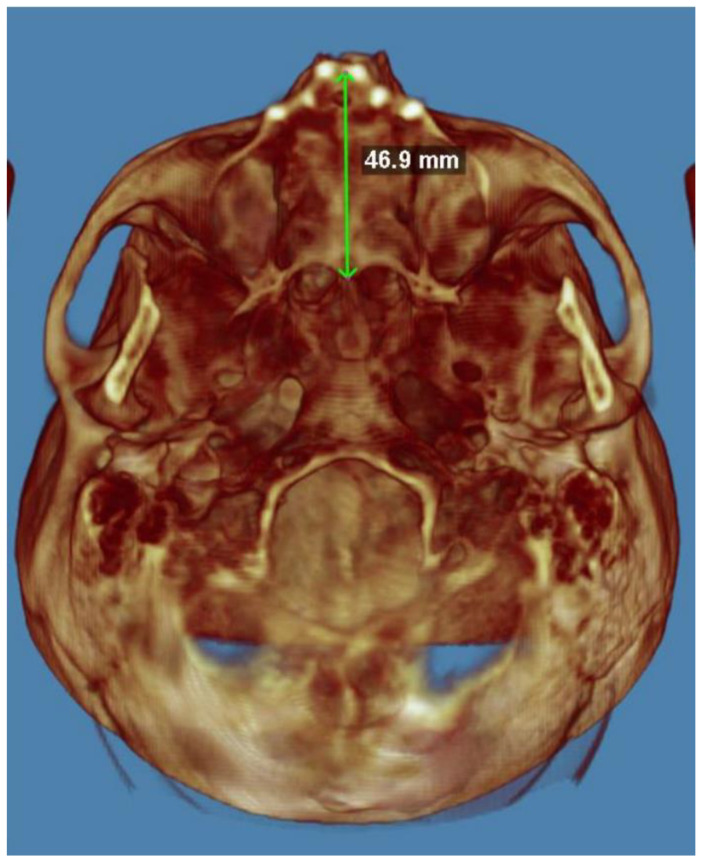

Palatal length.
Figure 4
Figure 4

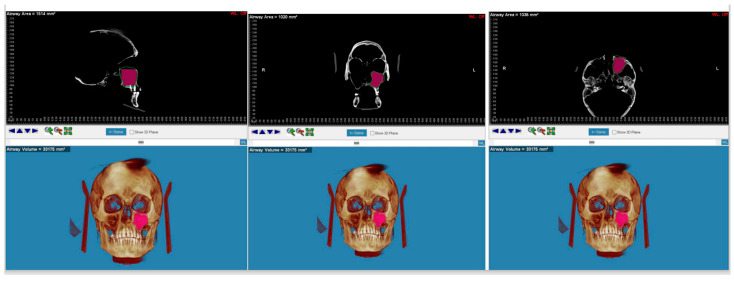

CBCT detection of maximum linear measurement along the sagittal axis, transversal axis, and vertical axis.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Mathis S., Le Masson G., Soulages A., Duval F., Carla L., Vallat J.M., Solé G. Olfaction and anosmia: From ancient times to COVID-19. J. Neurol. Sci. 2021;425:117433. doi: 10.1016/j.jns.2021.117433. - DOI - PMC - PubMed
    1. Schuez I., Alt K.W. Leonardo da Vinci and dental anatomy. J. Anat. 2022;240:183–196. doi: 10.1111/joa.13561. - DOI - PMC - PubMed
    1. Przystańska A., Kulczyk T., Rewekant A., Sroka A., Jończyk-Potoczna K., Gawriołek K., Czajka-Jakubowska A. The association between maxillary sinus dimensions and midface parameters during human postnatal growth. Biomed Res. Int. 2018;2018:6391465. doi: 10.1155/2018/6391465. - DOI - PMC - PubMed
    1. Arriagada-Vargas C., Abeleira-Pazos M.T., Outumuro-Rial M., García-Mato E., Varela-Aneiros I., Limeres-Posse J., Diniz-Freitas M. Rare disorders: Diagnosis and therapeutic planning for patients seeking orthodontic treatment. J. Clin. Med. 2022;11:1527. doi: 10.3390/jcm11061527. - DOI - PMC - PubMed
    1. Kaur G., Kumari G., Sharma S. Functional Matrix Hypothesis: A Review of Literature. Surf. Plasmon Reson. 2021;1:33–42. doi: 10.52152/spr/2021.115. - DOI
