Clinical Outcomes of a Novel Hybrid Transtibial Technique for Femoral Tunnel Drilling in Anterior Cruciate Ligament Reconstruction: A Large Single-Center Case Series With a Minimum 2-Year Follow-up

Abstract

Background: A novel hybrid transtibial (HTT) approach to femoral tunnel drilling in anterior cruciate ligament reconstruction (ACLR) has been developed that circumvents the need for knee hyperflexion and orients the graft in the most anatomic position without sacrificing the tunnel length or aperture.

Hypothesis: Patients who underwent ACLR utilizing the HTT technique would achieve excellent patient-reported outcome scores and experience low rates of graft failure and reoperations.

Study design: Case series; Level of evidence, 4.

Methods: Patients who underwent primary ACLR at a single institution between 2005 and 2020 were retrospectively reviewed. Patients treated with the HTT, anteromedial portal (AMP), and transtibial (TT) approaches were matched based on age, sex, and body mass index ±3 kg/m². Demographic and surgical data as well as femoral tunnel angle measurements on anteroposterior and lateral radiographs were collected for the 3 groups. However, clinical outcomes were only reported for the HTT group because of concerns of graft heterogeneity.

Results: A total of 170 patients (median age, 26.5 years [interquartile range (IQR), 18.0-35.0 years]) who underwent ACLR using the HTT approach were included. The median coronal- and sagittal-plane femoral tunnel angles were 47° (IQR, 42°-53°) and 40° (IQR, 34°-46°), respectively. The sagittal-plane femoral tunnel angles in the HTT group were significantly more horizontal compared with those in the TT group (P < .0001), whereas the coronal-plane femoral tunnel angles in the HTT group were found to be significantly more vertical compared with those in the AMP group (P = .001) and more horizontal compared with those in the TT group (P < .0001). The graft failure and reoperation rates in the HTT group at a minimum 2-year follow-up were 1.8% (3/170) and 4.7% (8/170), respectively. The complication rate was 6.5% (11/170), with the most common complication being subjective stiffness in 7 patients. The median Lysholm score was 89.5 (IQR, 79.0-98.0); the median International Knee Documentation Committee score was 83.9 (IQR, 65.5-90.8); and the median Veterans RAND 12-Item Health Survey physical and mental component summary scores were 55.0 (IQR, 52.6-55.9) and 56.2 (IQR, 49.1-59.3), respectively.

Conclusion: ACLR using the HTT technique was associated with low graft retear and revision surgery rates and good patient-reported outcome scores at medium-term follow-up and demonstrated femoral tunnel obliquity on postoperative radiographs that correlated with optimal parameters previously reported in cadaveric and biomechanical studies.

Keywords: ACLR; HTT; anterior cruciate ligament reconstruction; clinical outcomes; hybrid transtibial; medium-term.

Figure 1.

Postoperative (A) anteroposterior and (B) lateral radiographs in a patient who underwent anterior cruciate ligament reconstruction using the hybrid transtibial technique, demonstrating femoral tunnel angle measurements (dotted lines).

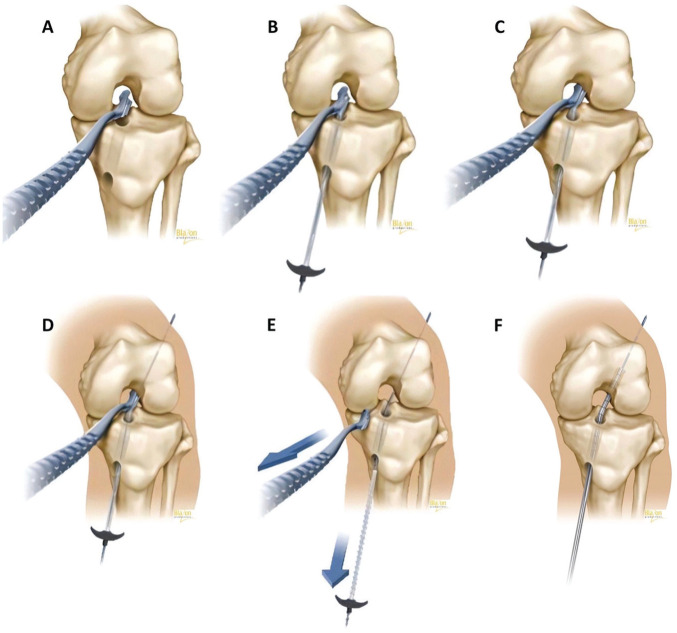

Figure 2.

Drilling the tibial and femoral tunnels with the hybrid transtibial technique. (A) A 7 mm–offset anterior cruciate ligament (ACL) femoral drill guide was inserted via the medial portal. (B) A flexible guide pin enclosed in a custom sheath was advanced through the tibial tunnel. (C) The wire’s tip was positioned near the center of the femoral ACL footprint. (D) Drilling of the guide wire through the distal femur. (E) Removal of the custom sheath. (F) Drilling of the femoral tunnel using a 10-mm flexible reamer over the wire.
