. 2024 Aug 12;52(1):116.
doi: 10.1007/s00240-024-01613-z.

Fabrication of acoustically and physically validated artificial stones to natural kidney stones under shock waves and laser lithotripsy

Hyeji Park  1 , Sang Won So  1 , Christine Joy G Castillo  2 , Majed M Alharthi  3 , Mohammad Mesadef A Zogan  4 , Sung Yong Cho  5   6   7
Affiliations

Fabrication of acoustically and physically validated artificial stones to natural kidney stones under shock waves and laser lithotripsy

Hyeji Park et al. Urolithiasis. .

Abstract

To present an efficient method for fabricating artificial kidney stones with acoustic and physical properties to assess their fragmentation efficiency under shock waves and laser lithotripsy for very hard stones. The mixture ratio of super-hard plaster and water was adjusted to produce artificial kidney stones for comparison with > 95% human genuine calcium oxalate monohydrate (COM) and uric acid (UA) stones. Acoustic and physical properties, such as wave speed, stone hardness, density, compressive strength, and stone-free rates under shock-wave and laser lithotripsy, were assessed. The longitudinal wave speed of artificial stones prepared at a plaster-to-water ratio of 15:3 closely matched that of COM stones. Similarly, the transverse wave speed of artificial stones prepared at a plaster-to-water ratio of 15:3 to 15:5 aligned with that of COM stones. Stone fragmentation using shock-wave of artificial stones with mixed ratios ranging from 15:3 to 15:5 resembled that of COM stones. The Vickers hardness was similar to that of artificial stones produced with a mixing ratio of 15:3, similar to that of COM stones, while that of artificial stones produced with a mixing ratio of 15:5 was similar to that of UA stones. Density-wise, artificial stones with mixing ratios of 15:4 and 15:5 resembled COM stones. Compressive strength test results did not confirm the similarity between natural and artificial stones. The stone fragmentation using laser showed that stones produced with higher moisture content at a mixing ratio of 15:6 were similar to COM stones. This novel method for fabricating artificial kidney stones could be used to provide reliable materials for lithotripsy research.

Keywords: Calcium oxalate; Kidney calculi; Laser; Lithotripsy; Uric acid.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

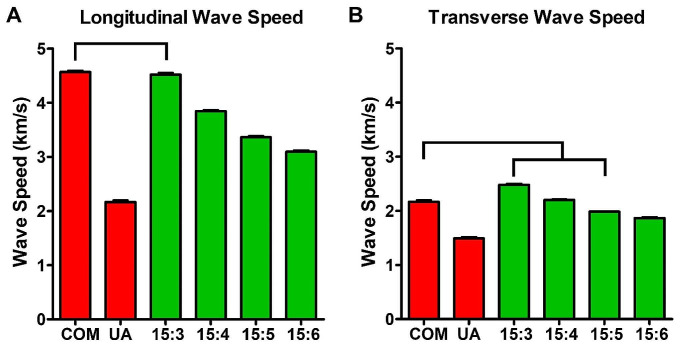

The longitudinal and transverse wave speed of artificial and natural kidney stones
Fig. 2
Fig. 2
Stone fragmentation efficiency of natural kidney stones and artificial stones by ESWL lithotripsy
Fig. 3
Fig. 3

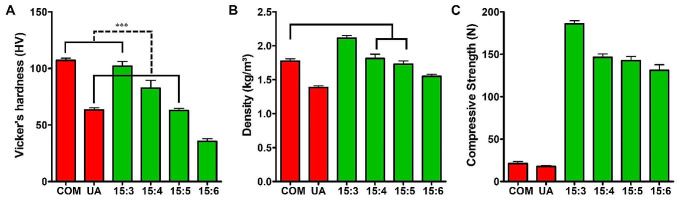

Hardness, density, and compressive strength of natural kidney stones and artificial stones
Fig. 4
Fig. 4
Stone fragmentation efficiency of natural kidney stones and artificial stones by laser lithotripsy
See this image and copyright information in PMC

References

    1. Na L, Li J, Pan C, Zhan Y, Bai S (2023) Development and validation of a predictive model for major complications after extracorporeal shockwave lithotripsy in patients with ureteral stones: based on a large prospective cohort. Urolithiasis 51(1):42. 10.1007/s00240-023-01417-7 - PMC - PubMed
    1. Jung G, Lee SM, So SW, Kim S, Kim SC, Kwon O et al (2022) Pattern analysis of laser Fiber degradation according to the laser setting: in Vitro Study of the double-firing Phenomenon. J Korean Med Sci 37(38). 10.3346/jkms.2022.37.e280 - PMC - PubMed
    1. Ryang SH, Ly TH, Yoon HS, Park DH, Cho SY (2020) How to reduce ‘double-firing’-induced scope damage by investigating the relationship between laser fiber core degradation and fiber jacket burn? PLoS ONE 15(5):e0233135. 10.1371/journal.pone.0233135 - PMC - PubMed
    1. Gauhar V, Chew BH, Traxer O, Tailly T, Emiliani E, Inoue T et al (2023) Indications, preferences, global practice patterns and outcomes in retrograde intrarenal surgery (RIRS) for renal stones in adults: results from a multicenter database of 6669 patients of the global FLEXible ureteroscopy outcomes Registry (FLEXOR). World J Urol 41(2):567–574. 10.1007/s00345-022-04257-z - PubMed
    1. Robinson JW, Marom R, Ghani KR, Roberts WW, Matzger AJ (2023) Performance of brushite plaster as kidney stone phantoms for laser lithotripsy. Urolithiasis 52(1):10. 10.1007/s00240-023-01505-8 - PubMed
